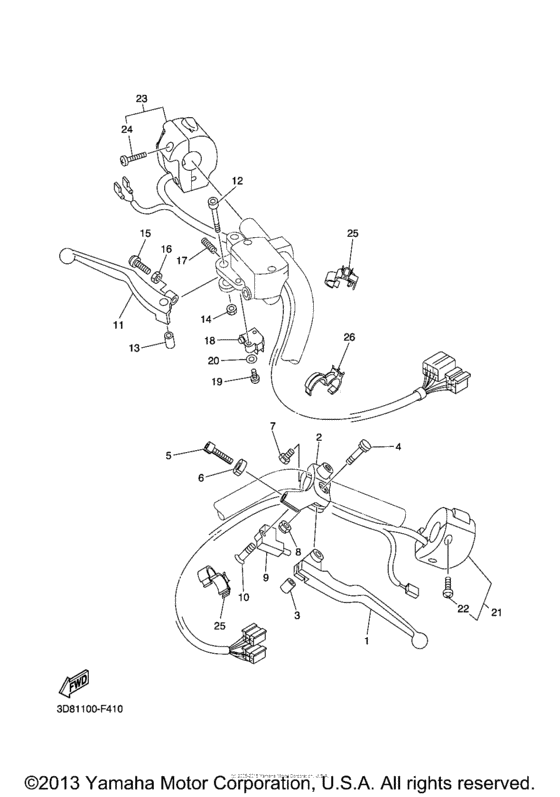

Handle switch & lever Diagram Yamaha XVS1300 V-Star
- Year
- 2008
- Model code
- 3D85
- Sales region
- USA
- Базовая модель
- XVS13AXCB
- Engine Capacity
- 1300
- Model
- XVS1300A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BN-83912-00-00 Lever 1 |
5BN-83912-00-00 |
from US $26.36 |
||
|
2
|
2
5BN-82911-20-00 Holder, Lever 1 |
5BN-82911-20-00 |
from US $37.86 |
||
|
3
|
3
4TR-83913-00-00 Collar, Lever 1 |
4TR-83913-00-00 |
from US $4.86 |
||
|
4
|
4
4TR-83945-10-00 Bolt, Lever |
4TR-83945-10-00 |
from US $2.98 |
||
|
5
|
5
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.74 |
||
| replacements | |||||
|
5
|
5
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
5
|
5
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
6
|
6
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
6
|
6
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
6
|
6
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
7
|
7
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
8
|
8
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
9
|
9
3YX-82917-01-00 Switch |
3YX-82917-01-00 |
from US $21.77 |
||
|
10
|
10
98707-03020-00 Screw, Flat Head |
98707-03020-00 |
from US $1.56 |
||
|
11
|
11
5BN-83922-00-00 Lever 2 |
5BN-83922-00-00 |
from US $24 |
||
|
12
|
12
90110-06265-00 Bolt, Hexagon Socket Head |
90110-06265-00 |
from US $1.42 |
||
|
13
|
13
36Y-83913-01-00 Collar, Lever 1 |
36Y-83913-01-00 |
from US $6.09 |
||
|
14
|
14
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
90154-06028-00 Screw, Binding |
90154-06028-00 |
from US $1.70 |
||
|
16
|
16
90170-06020-00 Nut |
90170-06020-00 |
from US $1.84 |
||
|
17
|
17
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
18
|
18
36Y-83980-01-00 Front Stop Switch Assy |
36Y-83980-01-00 |
from US $26.19 |
||
| replacement | |||||
|
18
|
18
J45-82503-01-00 Front Stop Switch Assy |
J45-82503-01-00 |
from US $32.18 |
||
|
19
|
19
985-02040-16-00
Screw, Pan Head
|
985-02040-16-00 |
— | ||
| replacements | |||||
|
19
|
19
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
19
|
19
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
20
|
20
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
20
|
20
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
21
|
21
3D8-83973-00-00
Switch, Handle 3
|
3D8-83973-00-00 |
— | ||
|
22
|
22
98504-05025-00 Screw, Pan Head |
98504-05025-00 |
from US $2.27 |
||
|
23
|
23
3D8-83972-00-00 Switch, Handle 4 |
3D8-83972-00-00 |
from US $321.91 |
||
|
24
|
24
98504-05025-00 Screw, Pan Head |
98504-05025-00 |
from US $2.27 |
||
|
25
|
25
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
26
|
26
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
