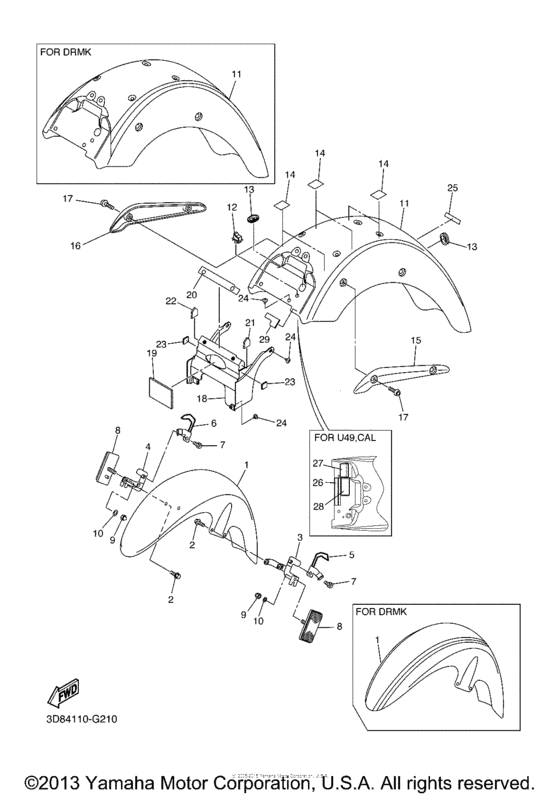

Fender Diagram Yamaha XVS1300 V-Star
- Year
- 2008
- Model code
- 3D85
- Sales region
- USA
- Базовая модель
- XVS13AXCS
- Engine Capacity
- 1300
- Model
- XVS1300A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-21510-00-P0 Front Fender Compfor Color Black Metallic X SMX / 0903 |
3D8-21510-00-P0 |
from US $673.06 |
||
| replacements | |||||
|
1
|
1
3D8-Y2151-11-P0 Front Fender Assyfor Color Black Metallic X SMX / 0903 |
3D8-Y2151-11-P0 |
US $860.83 |
||
|
1
|
1
3D8-21510-01-P0 Front Fender Compfor Color Black Metallic X SMX / 0903 |
3D8-21510-01-P0 |
from US $538.20 |
||
|
1
|
1
3D8-Y2151-10-P2 Front Fender Compfor Color Deep Red Metallic K DRMK / 0918 |
3D8-Y2151-10-P2 |
US $825.53 |
||
| replacement | |||||
|
1
|
1
3D8-W2151-11-P1 Front Fenderfor Color Deep Red Metallic K DRMK / 0918 |
3D8-W2151-11-P1 |
US $696.62 |
||
|
1
|
1
3D8-21510-00-P3 Front Fender Compfor Color SILVER 3 S3 / 0791 |
3D8-21510-00-P3 |
US $602.37 |
||
| replacement | |||||
|
1
|
1
3D8-21510-01-P5 elementfor Color SILVER 3 S3 / 0791 |
3D8-21510-01-P5 |
US $569.29 |
||
|
2
|
2
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.66 |
||
|
3
|
3
3D8-21587-00-00 Stay 1 |
3D8-21587-00-00 |
from US $24.23 |
||
|
4
|
4
3D8-21588-00-00 Stay 2 |
3D8-21588-00-00 |
from US $24.23 |
||
|
5
|
5
3D8-21597-00-00 Holder,wire 1 |
3D8-21597-00-00 |
from US $21.68 |
||
|
6
|
6
3D8-21598-00-00 Holder, Wire 2 |
3D8-21598-00-00 |
from US $21.68 |
||
|
7
|
7
90111-06016-00 Bolt, Hex. Socket Button |
90111-06016-00 |
from US $1.98 |
||
| replacement | |||||
|
7
|
7
90111-06031-00 Bolt, Hex. Socket Button |
90111-06031-00 |
from US $2.22 |
||
|
8
|
8
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
9
|
9
90176-05004-00 Nut, Crown |
90176-05004-00 |
from US $1.98 |
||
|
10
|
10
90201-051K1-00 Washer, Plate |
90201-051K1-00 |
from US $2.69 |
||
|
11
|
11
3D8-21610-00-P3 Rear Fender Compfor Color SILVER 3 S3 / 0791 |
3D8-21610-00-P3 |
US $885.84 |
||
|
11
|
11
3D8-21610-00-P0
Rear Fender Comp
for Color Black Metallic X SMX / 0903 |
3D8-21610-00-P0 |
— | ||
|
11
|
11
3D8-Y2161-10-P2 Rear Fender Compfor Color Deep Red Metallic K DRMK / 0918 |
3D8-Y2161-10-P2 |
US $1,383.43 |
||
|
12
|
12
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
|
13
|
13
90480-01015-00 Grommet |
90480-01015-00 |
from US $3.83 |
||
|
14
|
14
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $6.74 |
||
|
15
|
15
3D8-2164F-10-00 Stay 1 |
3D8-2164F-10-00 |
from US $243.16 |
||
|
16
|
16
3D8-2164G-10-00 Stay 2 |
3D8-2164G-10-00 |
from US $243.16 |
||
|
17
|
17
90111-08033-00 Bolt, Hex. Socket Button |
90111-08033-00 |
from US $3.74 |
||
|
18
|
18
3D8-21629-00-P0 Guard, Mudfor Color Black Metallic X SMX / 0903 |
3D8-21629-00-P0 |
from US $113.29 |
||
|
18
|
18
3D8-21629-00-P3
Guard, Mud
for Color SILVER 3 S3 / 0791 |
3D8-21629-00-P3 |
— | ||
|
18
|
18
3D8-21629-00-P2 Guard, Mudfor Color Deep Red Metallic K DRMK / 0918 |
3D8-21629-00-P2 |
US $176.24 |
||
|
19
|
19
3D8-21621-00-00 Flap |
3D8-21621-00-00 |
from US $8.08 |
||
|
20
|
20
3D8-21638-00-00 Damper 1 |
3D8-21638-00-00 |
from US $1.70 |
||
|
21
|
21
3D8-21639-00-00 Damper 2 |
3D8-21639-00-00 |
from US $1.35 |
||
|
22
|
22
3D8-21649-00-00 Damper |
3D8-21649-00-00 |
from US $1.35 |
||
|
23
|
23
3D8-21652-00-00 Protector |
3D8-21652-00-00 |
from US $1.42 |
||
|
24
|
24
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
25
|
25
1D6-2153E-00-00 Emblem, Yamaha |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
25
|
25
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
|
25
|
25
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
|
26
|
26
3D8-2179W-10-00
Plate, Epa (Non California)
|
3D8-2179W-10-00 |
— | ||
|
26
|
26
3D8-2176P-00-00 Plate, Epa (California) |
3D8-2176P-00-00 |
US $4.14 |
||
|
27
|
27
5PX-21686-00-00 Plate, Routing 2 |
5PX-21686-00-00 |
US $43.47 |
||
|
28
|
28
1D7-21668-00-00 Label, Tire |
1D7-21668-00-00 |
from US $3.12 |
||
|
29
|
29
3D8-21747-00-00 Damper |
3D8-21747-00-00 |
from US $1.70 |
||
