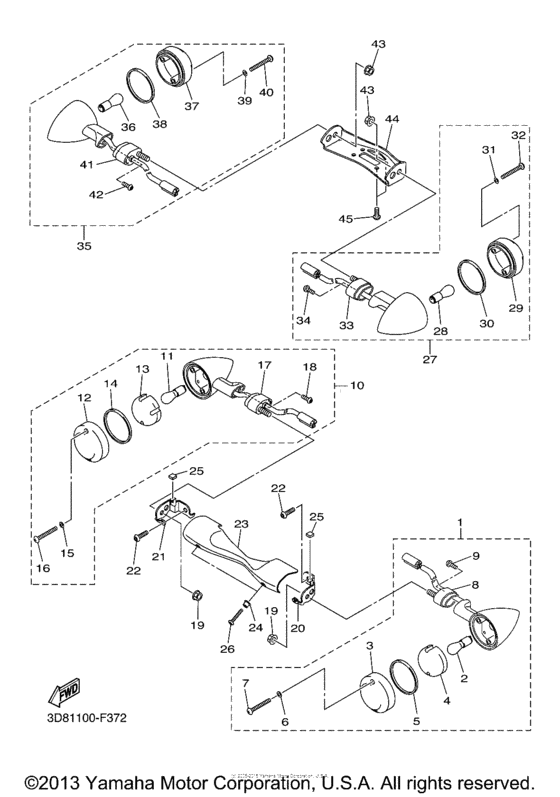

Flasher light Diagram Yamaha XVS1300 V-Star
- Year
- 2008
- Model code
- 3D85
- Sales region
- USA
- Базовая модель
- XVS13AXRC
- Engine Capacity
- 1300
- Model
- XVS1300A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-83310-00-00 Front Flasher Light Assy 1 |
3D8-83310-00-00 |
from US $107.49 |
||
|
2
|
2
1A2-84714-41-00
Bulb
12V-21/5W |
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)12V-21/5W |
1A2-84714-50-00 |
from US $5.28 |
||
|
3
|
3
3D8-83312-00-00 Lens, Flasher |
3D8-83312-00-00 |
from US $11.37 |
||
|
4
|
4
3D8-8333L-00-00 Lens, Inner 1 |
3D8-8333L-00-00 |
from US $10.77 |
||
|
5
|
5
3D8-83313-00-00 Gasket, Flasher Lens |
3D8-83313-00-00 |
from US $5.55 |
||
|
6
|
6
3D8-83348-00-00 Washer |
3D8-83348-00-00 |
from US $1.98 |
||
|
7
|
7
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
8
|
8
3D8-83320-00-00 Front Flasher Light Assy 2 |
3D8-83320-00-00 |
from US $122.32 |
||
|
9
|
9
1A2-84714-41-00
Bulb
12V-21/5W |
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
9
|
9
1A2-84714-50-00 Bulb (12V-21/5W)12V-21/5W |
1A2-84714-50-00 |
from US $5.28 |
||
|
10
|
10
3D8-83312-00-00 Lens, Flasher |
3D8-83312-00-00 |
from US $11.37 |
||
|
11
|
11
3D8-8333L-00-00 Lens, Inner 1 |
3D8-8333L-00-00 |
from US $10.77 |
||
|
12
|
12
3D8-83313-00-00 Gasket, Flasher Lens |
3D8-83313-00-00 |
from US $5.55 |
||
|
13
|
13
3D8-83348-00-00 Washer |
3D8-83348-00-00 |
from US $1.98 |
||
|
14
|
14
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
15
|
15
957-02105-00-00
Nut, Flange
|
957-02105-00-00 |
— | ||
| replacements | |||||
|
15
|
15
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
15
|
15
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
16
|
16
3D8-83318-10-00
Stay, Flasher 1
|
3D8-83318-10-00 |
— | ||
|
17
|
17
3D8-83328-00-00
Stay, Flasher 2
|
3D8-83328-00-00 |
— | ||
|
18
|
18
90111-08048-00 Bolt, Button Head |
90111-08048-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
92012-08016-00 Bolt, Button Head |
92012-08016-00 |
from US $1.56 |
||
|
19
|
19
3D8-23122-00-00 Cover, Outer 1 |
3D8-23122-00-00 |
from US $99.89 |
||
| replacement | |||||
|
19
|
19
3D8-23122-10-00 Cover, Outer 1 |
3D8-23122-10-00 |
from US $99.89 |
||
|
20
|
20
90387-06163-00 Collar |
90387-06163-00 |
from US $3.54 |
||
| replacement | |||||
|
20
|
20
903-87062-55-00 Collar |
903-87062-55-00 |
from US $3.54 |
||
|
21
|
21
3MA-24181-00-00 Damper, Locating 1 |
3MA-24181-00-00 |
from US $4.58 |
||
|
22
|
22
90111-05024-00 Bolt, Hex. Socket Button |
90111-05024-00 |
from US $1.81 |
||
|
23
|
23
3D8-83330-00-00 Rear Flasher Light Assy 1 |
3D8-83330-00-00 |
from US $113.35 |
||
|
24
|
24
3D8-83311-00-00 Bulb, Flasher (12V21W)12V21W |
3D8-83311-00-00 |
from US $9.63 |
||
| replacement | |||||
|
24
|
24
59C-83311-00-00 Bulb, Flasher (12V Py21W)12V21W |
59C-83311-00-00 |
from US $6.23 |
||
|
25
|
25
3D8-83312-00-00 Lens, Flasher |
3D8-83312-00-00 |
from US $11.37 |
||
|
26
|
26
3D8-83313-00-00 Gasket, Flasher Lens |
3D8-83313-00-00 |
from US $5.55 |
||
|
27
|
27
3D8-83348-00-00 Washer |
3D8-83348-00-00 |
from US $1.98 |
||
|
28
|
28
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
28
|
28
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
29
|
29
3D8-83340-00-00 Rear Flasher Light Assy 2 |
3D8-83340-00-00 |
from US $94.14 |
||
|
30
|
30
3D8-83311-00-00 Bulb, Flasher (12V21W)12V21W |
3D8-83311-00-00 |
from US $9.63 |
||
| replacement | |||||
|
30
|
30
59C-83311-00-00 Bulb, Flasher (12V Py21W)12V21W |
59C-83311-00-00 |
from US $6.23 |
||
|
31
|
31
3D8-83312-00-00 Lens, Flasher |
3D8-83312-00-00 |
from US $11.37 |
||
|
32
|
32
3D8-83313-00-00 Gasket, Flasher Lens |
3D8-83313-00-00 |
from US $5.55 |
||
|
33
|
33
3D8-83348-00-00 Washer |
3D8-83348-00-00 |
from US $1.98 |
||
|
34
|
34
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
34
|
34
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
35
|
35
957-02105-00-00
Nut, Flange
|
957-02105-00-00 |
— | ||
| replacements | |||||
|
35
|
35
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
35
|
35
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
36
|
36
3D8-83368-00-00 Stay, Flasher 1 |
3D8-83368-00-00 |
from US $17.99 |
||
|
37
|
37
90111-06016-00 Bolt, Hex. Socket Button |
90111-06016-00 |
from US $1.98 |
||
| replacement | |||||
|
37
|
37
90111-06031-00 Bolt, Hex. Socket Button |
90111-06031-00 |
from US $2.22 |
||
