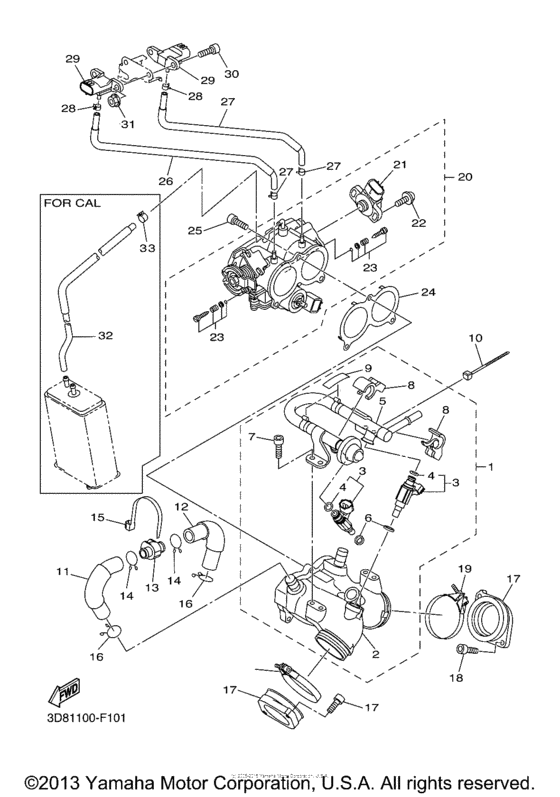

Intake (1) Diagram Yamaha XVS1300 V-Star
- Year
- 2008
- Model code
- 3D85
- Sales region
- USA
- Базовая модель
- XVS13AXRC
- Engine Capacity
- 1300
- Model
- XVS1300A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-13590-10-00 Carburetor Joint AssyCarburetor joint assy |
3D8-13590-10-00 |
from US $541.20 |
||
|
2
|
2
3D8-13640-00-00 Manifold |
3D8-13640-00-00 |
from US $252.83 |
||
|
3
|
3
3D8-13761-00-00 Injector |
3D8-13761-00-00 |
from US $160.27 |
||
|
4
|
4
5FL-14147-00-00 O-Ring |
5FL-14147-00-00 |
from US $9.78 |
||
|
5
|
5
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
6
|
6
3D8-14261-00-00 Holder |
3D8-14261-00-00 |
from US $3.40 |
||
|
7
|
7
3D8-1442F-00-00 Protector |
3D8-1442F-00-00 |
from US $5.10 |
||
|
8
|
8
4KM-14137-00-00 Clip |
4KM-14137-00-00 |
from US $7.69 |
||
|
9
|
9
3D8-1441J-00-00 Pipe, Silencer |
3D8-1441J-00-00 |
from US $15.16 |
||
| replacement | |||||
|
9
|
9
3D8-1441J-01-00 Pipe, Silencer |
3D8-1441J-01-00 |
from US $15.16 |
||
|
10
|
10
3D8-1442J-00-00 Pipe, Silencer 2 |
3D8-1442J-00-00 |
from US $15.16 |
||
| replacement | |||||
|
10
|
10
3D8-1442J-01-00 Pipe, Silencer 2 |
3D8-1442J-01-00 |
from US $15.16 |
||
|
11
|
11
3D8-14862-00-00 Plug |
3D8-14862-00-00 |
from US $1.70 |
||
|
12
|
12
90467-18196-00 Clip |
90467-18196-00 |
from US $1.81 |
||
|
13
|
13
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
14
|
14
90467-18196-00 Clip |
90467-18196-00 |
from US $1.81 |
||
|
15
|
15
3D8-13586-00-00 Joint, Carburetor 1 |
3D8-13586-00-00 |
from US $39.24 |
||
|
16
|
16
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
17
|
17
90450-59008-00 Hose Clamp Assy |
90450-59008-00 |
from US $8.22 |
||
| replacements | |||||
|
17
|
17
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
17
|
17
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
18
|
18
3D8-13750-20-00 Throttle Body Assy3D84 AX 49 |
3D8-13750-20-00 |
from US $880.44 |
||
|
18
|
18
3D8-13750-30-00 Throttle Body Assy3D85 AXC CA |
3D8-13750-30-00 |
US $899.73 |
||
|
19
|
19
8GL-85885-00-00 Throttle Sensor Assy |
8GL-85885-00-00 |
from US $67.01 |
||
| replacement | |||||
|
19
|
19
8GL-85885-01-00 THROTTLE SENSOR ASSY |
8GL-85885-01-00 |
from US $67.01 |
||
|
20
|
20
4KM-24453-00-00 Screw |
4KM-24453-00-00 |
from US $4.68 |
||
|
21
|
21
3D8-14104-00-00 Air Screw Set |
3D8-14104-00-00 |
from US $12.89 |
||
|
22
|
22
3D8-14467-00-00 Seal |
3D8-14467-00-00 |
from US $9.74 |
||
| replacement | |||||
|
22
|
22
BL3-14467-00-00 SEAL |
BL3-14467-00-00 |
from US $11.37 |
||
|
23
|
23
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
23
|
23
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
24
|
24
3D8-13895-00-00 Hose, Air |
3D8-13895-00-00 |
from US $20.97 |
||
|
25
|
25
3D8-13892-00-00 Hose, Air 2 |
3D8-13892-00-00 |
from US $20.97 |
||
| replacement | |||||
|
25
|
25
3D8-13895-00-00 Hose, Air |
3D8-13895-00-00 |
from US $20.97 |
||
|
26
|
26
90467-07093-00 Clip |
90467-07093-00 |
from US $1.70 |
||
|
27
|
27
5PS-82380-00-00 Sensor, Pressure |
5PS-82380-00-00 |
from US $163.03 |
||
|
28
|
28
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
28
|
28
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.18 |
||
|
29
|
29
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
30
|
30
3D8-14148-10-00 Pipe |
3D8-14148-10-00 |
US $84.17 |
||
|
31
|
31
90467-09037-00 Clip |
90467-09037-00 |
from US $1.98 |
||
| replacement | |||||
|
31
|
31
90467-09120-00 Clip |
90467-09120-00 |
from US $1.98 |
||
