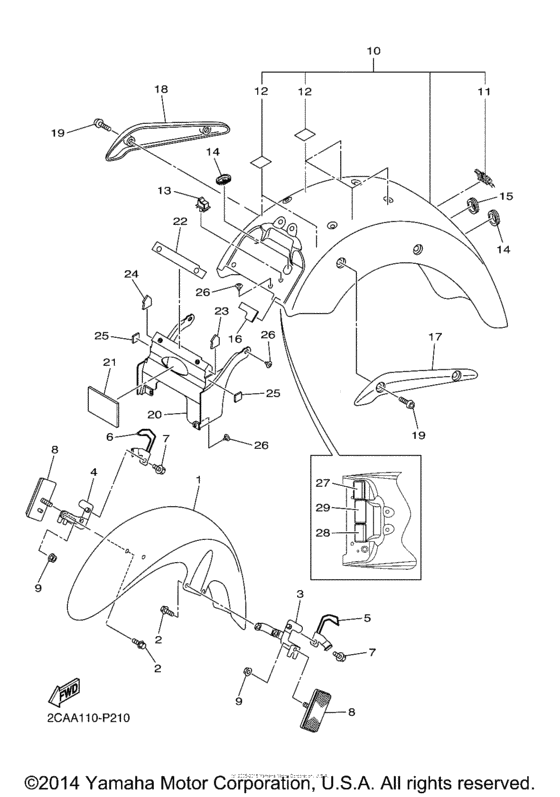

Fender Diagram Yamaha XVS1300 V-Star Deluxe
- Year
- 2015
- Model code
- 2CAB
- Sales region
- USA
- Базовая модель
- XVS13BGFC
- Engine Capacity
- 1300
- Model
- XVS1300CTF (V-Star Deluxe)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-21510-01-PE Front Fender Compfor Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
3D8-21510-01-PE |
US $828.65 |
||
|
2
|
2
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.66 |
||
|
3
|
3
3D8-21587-00-00 Stay 1 |
3D8-21587-00-00 |
from US $24.23 |
||
|
4
|
4
3D8-21588-00-00 Stay 2 |
3D8-21588-00-00 |
from US $24.23 |
||
|
5
|
5
3D8-21597-00-00 Holder,wire 1 |
3D8-21597-00-00 |
from US $21.68 |
||
|
6
|
6
3D8-21598-00-00 Holder, Wire 2 |
3D8-21598-00-00 |
from US $21.68 |
||
|
7
|
7
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
8
|
8
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
9
|
9
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
10
|
10
3D8-W216R-A0-P7 Rear Fender Assyfor Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
3D8-W216R-A0-P7 |
US $1,388.51 |
||
|
11
|
11
46B-2163G-10-00 Emblem 1 |
46B-2163G-10-00 |
from US $7.08 |
||
|
12
|
12
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $6.74 |
||
|
13
|
13
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
|
14
|
14
90480-01015-00 Grommet |
90480-01015-00 |
from US $3.83 |
||
|
15
|
15
90338-20004-00 Plug |
90338-20004-00 |
from US $2.08 |
||
|
16
|
16
3D8-21747-00-00 Damper |
3D8-21747-00-00 |
from US $1.70 |
||
|
17
|
17
3D8-2164F-20-00 Stay 1 |
3D8-2164F-20-00 |
from US $240.77 |
||
|
18
|
18
3D8-2164G-20-00 Stay 2 |
3D8-2164G-20-00 |
from US $240.77 |
||
|
19
|
19
90111-08033-00 Bolt, Hex. Socket Button |
90111-08033-00 |
from US $3.74 |
||
|
20
|
20
3D8-21629-00-PE Guard, Mudfor Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
3D8-21629-00-PE |
US $122.69 |
||
|
21
|
21
3D8-21621-00-00 Flap |
3D8-21621-00-00 |
from US $8.08 |
||
|
22
|
22
3D8-21638-00-00 Damper 1 |
3D8-21638-00-00 |
from US $1.70 |
||
|
23
|
23
3D8-21639-00-00 Damper 2 |
3D8-21639-00-00 |
from US $1.35 |
||
|
24
|
24
3D8-21649-00-00 Damper |
3D8-21649-00-00 |
from US $1.35 |
||
|
25
|
25
3D8-21652-00-00 Protector |
3D8-21652-00-00 |
from US $1.42 |
||
|
26
|
26
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
27
|
27
5RU-21686-00-00 Plate, Routing 2FOR CALIFORNIA |
5RU-21686-00-00 |
from US $2.27 |
||
|
28
|
28
34B-21684-00-00 Plate, RoutingFOR CALIFORNIA |
34B-21684-00-00 |
from US $1.56 |
||
|
29
|
29
1D7-21668-00-00 Label, Tire |
1D7-21668-00-00 |
from US $3.12 |
