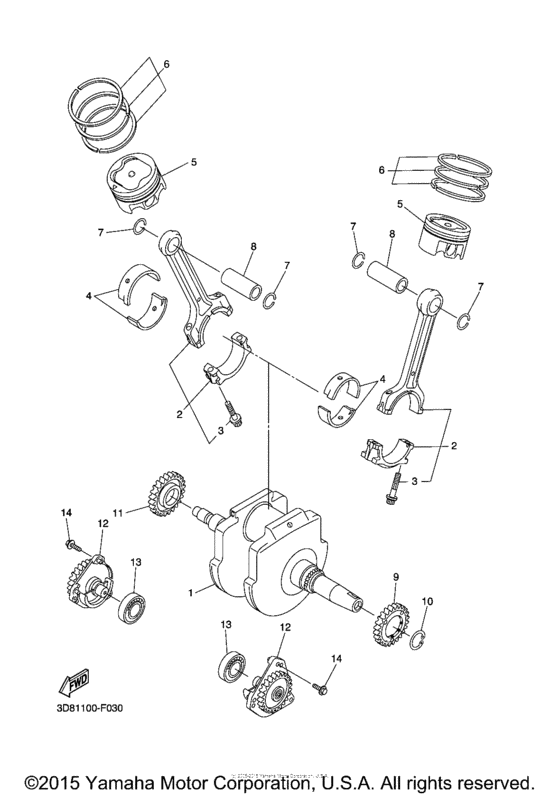

Crankshaft & Piston Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2015
- Model code
- BJ32
- Sales region
- USA
- Базовая модель
- XVS13CFCGR
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-11400-01-00 Crankshaft Assy |
3D8-11400-01-00 |
from US $647.30 |
||
|
2
|
2
3D8-11650-10-00 Connecting Rod Assy |
3D8-11650-10-00 |
from US $154.18 |
||
|
3
|
3
5YU-11654-00-00 Bolt, Connecting Rod |
5YU-11654-00-00 |
from US $2.55 |
||
|
4
|
4
5YU-11656-30-00 Plane Bearing, Connecting RodUR GREEN |
5YU-11656-30-00 |
from US $5.06 |
||
|
4
|
4
5YU-11656-10-00 Plane Bearing, Connecting RodUR BLACK |
5YU-11656-10-00 |
from US $5.40 |
||
|
4
|
4
5YU-11656-00-00 Plane Bearing, Connecting RodUR BLUE |
5YU-11656-00-00 |
from US $5.40 |
||
|
4
|
4
5YU-11656-40-00 Plane Bearing, Connecting RodUR YELLOW |
5YU-11656-40-00 |
from US $5.74 |
||
|
4
|
4
5YU-11656-20-00 Plane Bearing, Connecting RodUR BROWN |
5YU-11656-20-00 |
from US $5.74 |
||
|
5
|
5
3D8-11631-00-00 Piston (Std) |
3D8-11631-00-00 |
US $169.07 |
||
|
6
|
6
1D7-11610-00-00 Piston Ring Set (Std) |
1D7-11610-00-00 |
from US $43.76 |
||
|
7
|
7
934-50241-54-00 Circlip |
934-50241-54-00 |
from US $1.81 |
||
|
8
|
8
5VK-11633-00-00 Pin, Piston |
5VK-11633-00-00 |
from US $29.64 |
||
|
9
|
9
3D8-11530-00-00 Balancer Weight Gear Comp |
3D8-11530-00-00 |
from US $203.10 |
||
|
10
|
10
99009-40400-00 Circlip |
99009-40400-00 |
from US $3.33 |
||
|
11
|
11
3D8-11543-00-00 Gear,1 |
3D8-11543-00-00 |
from US $135.81 |
||
|
12
|
12
3D8-11500-00-00 Balancer Assy |
3D8-11500-00-00 |
from US $334.35 |
||
|
13
|
13
93306-20402-00 Bearing |
93306-20402-00 |
from US $22.62 |
||
| replacements | |||||
|
13
|
13
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
13
|
13
93306-20458-00 Bearing |
93306-20458-00 |
from US $22.62 |
||
|
14
|
14
90110-06060-00 Bolt |
90110-06060-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.81 |
||
