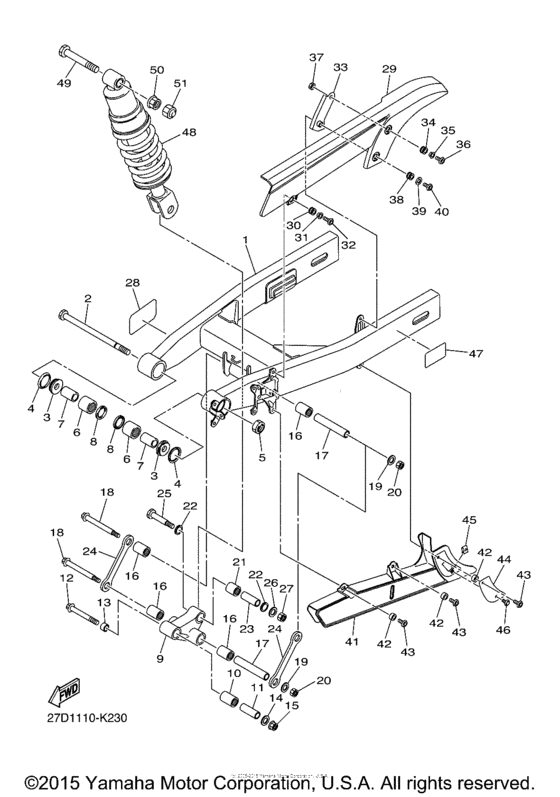

Rear arm & suspension Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2015
- Model code
- BJ32
- Sales region
- USA
- Базовая модель
- XVS13CFCGR
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27D-22110-00-00 Rear Arm Comp |
27D-22110-00-00 |
from US $810.48 |
||
|
2
|
2
27D-22141-00-00 Shaft, Pivot |
27D-22141-00-00 |
from US $40.48 |
||
|
3
|
3
903-87160-30-00 Collar |
903-87160-30-00 |
from US $10.20 |
||
|
4
|
4
931-08440-01-00 Oil Seal |
931-08440-01-00 |
from US $4.53 |
||
|
5
|
5
90185-16002-00 Nut, Self-Locking |
90185-16002-00 |
from US $6.94 |
||
|
6
|
6
93317-52897-00 Bearing |
93317-52897-00 |
from US $25.70 |
||
|
7
|
7
903-87160-29-00 Collar |
903-87160-29-00 |
from US $14.31 |
||
|
8
|
8
93109-28001-00 Oil Seal |
93109-28001-00 |
from US $3.83 |
||
|
9
|
9
3D8-2217A-00-00 Arm, Relay |
3D8-2217A-00-00 |
from US $99.20 |
||
|
10
|
10
933-17420-60-00 Bearing |
933-17420-60-00 |
from US $22.71 |
||
|
11
|
11
903-87100-T8-00 Collar |
903-87100-T8-00 |
from US $10.96 |
||
|
12
|
12
90105-10233-00 Bolt, Flange |
90105-10233-00 |
from US $2.70 |
||
|
13
|
13
90387-10049-00 Collar |
90387-10049-00 |
from US $7.51 |
||
|
14
|
14
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.66 |
||
|
15
|
15
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
16
|
16
93317-41761-00 Bearing |
93317-41761-00 |
from US $20.11 |
||
|
17
|
17
90387-126T1-00 Collar |
90387-126T1-00 |
from US $11.23 |
||
|
18
|
18
90101-12027-00 Bolt |
90101-12027-00 |
from US $9.15 |
||
|
19
|
19
90201-12045-00 Washer, Plate |
90201-12045-00 |
from US $1.70 |
||
|
20
|
20
95612-12100-00 Nut, U |
95612-12100-00 |
from US $3.54 |
||
|
21
|
21
933-17317-71-00 Bearing |
933-17317-71-00 |
from US $23.58 |
||
|
22
|
22
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $3.04 |
||
|
23
|
23
903-87127-W0-00 Collar |
903-87127-W0-00 |
from US $6.40 |
||
|
24
|
24
3D8-2217M-00-00 Arm 1 |
3D8-2217M-00-00 |
from US $14.03 |
||
|
25
|
25
90109-10024-00 Bolt |
90109-10024-00 |
from US $7.65 |
||
|
26
|
26
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.70 |
||
|
27
|
27
956-12101-00-00
Nut, U
|
956-12101-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
28
|
28
5PX-21652-00-00 Protector |
5PX-21652-00-00 |
from US $8.50 |
||
|
29
|
29
5S7-22311-00-00 Case, Chain |
5S7-22311-00-00 |
from US $20.54 |
||
|
30
|
30
90480-13004-00 Grommet |
90480-13004-00 |
from US $1.65 |
||
|
31
|
31
90387-06171-00 Collar |
90387-06171-00 |
from US $3.40 |
||
|
32
|
32
90149-06302-00 Screw |
90149-06302-00 |
from US $4.72 |
||
|
33
|
33
3D8-2213J-00-00 Stay, Chain Case |
3D8-2213J-00-00 |
from US $14.17 |
||
|
34
|
34
90480-13004-00 Grommet |
90480-13004-00 |
from US $1.65 |
||
|
35
|
35
90387-06171-00 Collar |
90387-06171-00 |
from US $3.40 |
||
|
36
|
36
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
37
|
37
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
37
|
37
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
38
|
38
90480-13004-00 Grommet |
90480-13004-00 |
from US $1.65 |
||
|
39
|
39
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.81 |
||
|
40
|
40
90149-06302-00 Screw |
90149-06302-00 |
from US $4.72 |
||
|
41
|
41
3D8-22312-00-00 Case, Chain 2 |
3D8-22312-00-00 |
from US $31.48 |
||
|
42
|
42
903-87063-72-00
Collar
|
903-87063-72-00 |
— | ||
| replacement | |||||
|
42
|
42
903-87061-06-00 Collar |
903-87061-06-00 |
from US $1.81 |
||
|
43
|
43
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
44
|
44
5S7-22341-00-00 Plate, Guide 1 |
5S7-22341-00-00 |
from US $7.08 |
||
|
45
|
45
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
45
|
45
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
46
|
46
90111-06078-00 Screw |
90111-06078-00 |
from US $1.56 |
||
| replacement | |||||
|
46
|
46
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.81 |
||
|
47
|
47
27D-21668-00-00 Label, Tire |
27D-21668-00-00 |
from US $1.42 |
||
|
48
|
48
27D-22210-00-00 Shock Absorber Assy, Rear |
27D-22210-00-00 |
US $475.18 |
||
|
49
|
49
90109-10028-00 Bolt |
90109-10028-00 |
from US $4.53 |
||
|
50
|
50
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
50
|
50
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
51
|
51
5YU-2143A-00-00 Cap |
5YU-2143A-00-00 |
US $1.70 |
||
