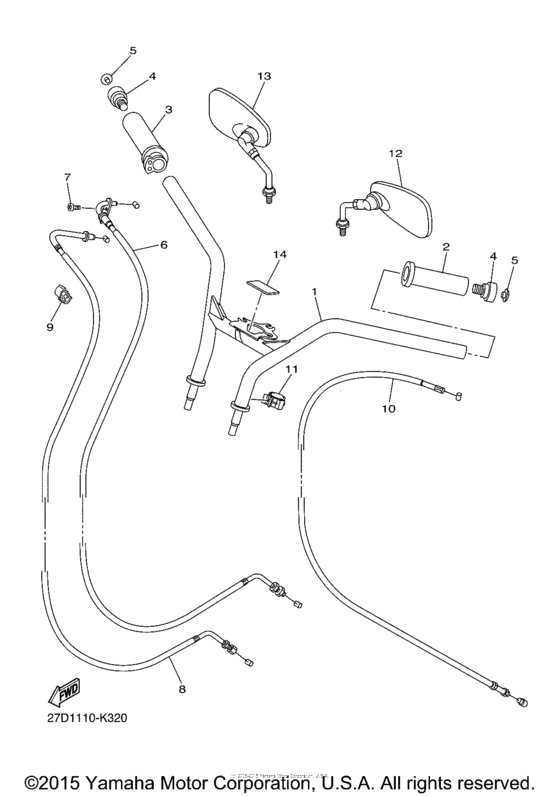

Steering handle & cable Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2015
- Model code
- BJ32
- Sales region
- USA
- Базовая модель
- XVS13CFCGR
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27D-26111-10-00 Handlebar |
27D-26111-10-00 |
from US $377.83 |
||
|
2
|
2
4NK-26241-00-00
Grip(Left)
|
4NK-26241-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4NK-26241-01-00 Grip(Left) |
4NK-26241-01-00 |
from US $39.42 |
||
|
3
|
3
4XY-26240-00-00 Grip Assy |
4XY-26240-00-00 |
from US $53.51 |
||
|
4
|
4
5EL-26246-00-00 End, Grip |
5EL-26246-00-00 |
from US $49.52 |
||
|
5
|
5
90338-10164-00 Plug |
90338-10164-00 |
from US $3.89 |
||
|
6
|
6
27D-26311-00-00 Cable, Throttle 1 |
27D-26311-00-00 |
from US $40.50 |
||
|
7
|
7
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
8
|
8
27D-26312-00-00 Cable, Throttle 2 |
27D-26312-00-00 |
from US $32.59 |
||
|
9
|
9
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.81 |
||
|
10
|
10
27D-26335-00-00 Cable, clutch |
27D-26335-00-00 |
from US $65.95 |
||
|
11
|
11
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
12
|
12
2DX-26280-00-00 Rear View Mirror Assy (Left) |
2DX-26280-00-00 |
from US $59.96 |
||
|
13
|
13
2DX-26290-00-00 Rear View Mirror Assy (Right) |
2DX-26290-00-00 |
from US $59.96 |
||
|
14
|
14
905-20040-07-00 Damper, Plate |
905-20040-07-00 |
from US $1.52 |
||
