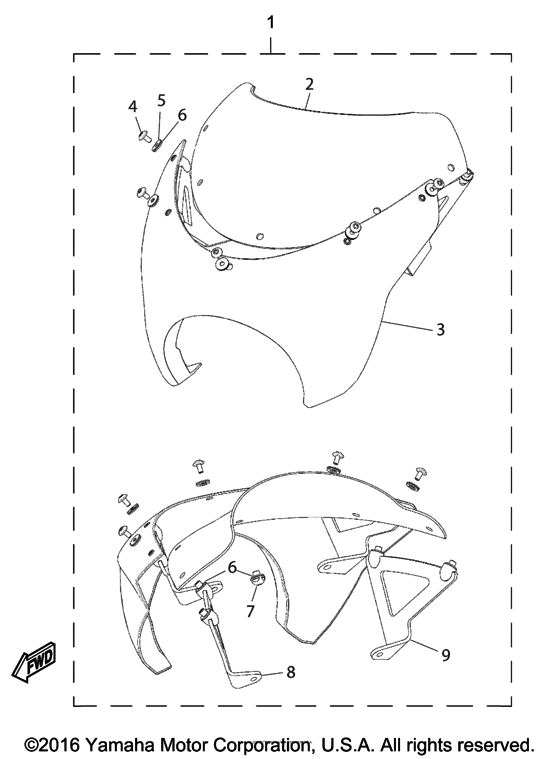

Cowl Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2016
- Colour
- Mat Gray Metallic 3
- Model code
- BJ32
- Sales region
- United States (California)
- Базовая модель
- XVS13CGCGY
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GP-F83J0-P0-02
1GP-F83J0-P0-00
COMPLETE SET |
1GP-F83J0-P0-02 |
— | ||
| replacement | |||||
|
1
|
1
1GP-F83J0-P0-00
BULLET COWL STRYKER
COMPLETE SET |
1GP-F83J0-P0-00 |
— | ||
|
2
|
2
1GP-F6234-V0-00
Screen
|
1GP-F6234-V0-00 |
— | ||
|
3
|
3
1GP-F8351-T0-00
Body, Cowl
STRYKER GRAY |
1GP-F8351-T0-00 |
— | ||
|
4
|
4
901-49061-04-00 Screw |
901-49061-04-00 |
from US $1.56 |
||
|
5
|
5
29P-F8319-V0-00 Washer |
29P-F8319-V0-00 |
US $3.28 |
||
|
6
|
6
29P-F2958-V0-00 Pads |
29P-F2958-V0-00 |
US $4.21 |
||
|
7
|
7
29P-F3958-V0-00
Nut, Special
|
29P-F3958-V0-00 |
— | ||
|
8
|
8
1GP-F612E-V0-00 BRACKET LH |
1GP-F612E-V0-00 |
US $68.33 |
||
|
9
|
9
1GP-F612K-V0-00 BRACKET RH |
1GP-F612K-V0-00 |
US $68.33 |
||
