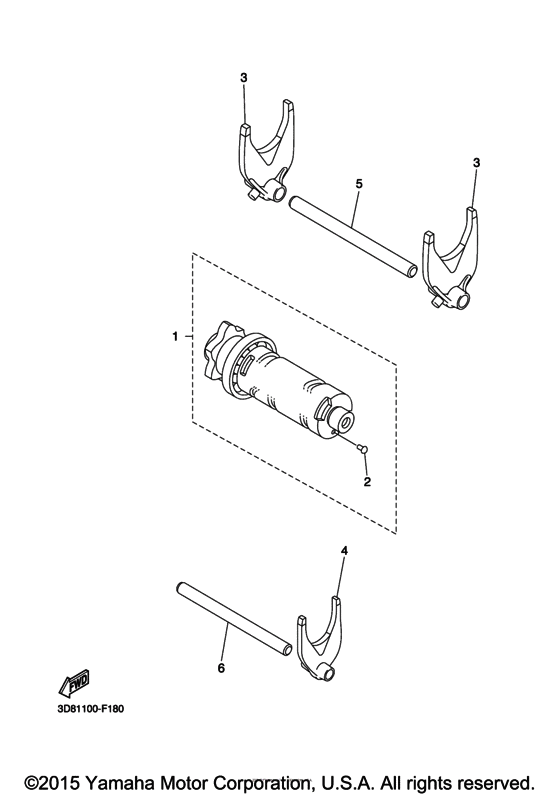

Shift shaft Diagram Yamaha XVS1300 Stryker
- Year
- 2016
- Colour
- Dark Purplish Blue Metallic 1
- Model code
- 27DH
- Sales region
- United States (California)
- Базовая модель
- XVS13CGCL
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-18540-10-00 Shift Cam Assy |
3D8-18540-10-00 |
from US $122.69 |
||
|
2
|
2
136-18542-00-00 Point, Neutral |
136-18542-00-00 |
from US $1.98 |
||
|
3
|
3
3D8-18511-00-00 Fork, Shift 1 |
3D8-18511-00-00 |
from US $47.53 |
||
|
4
|
4
3D8-18512-00-00 Fork, Shift 2 |
3D8-18512-00-00 |
from US $45.32 |
||
|
5
|
5
3D8-18531-00-00 Bar, Shift Fork Guide 1 |
3D8-18531-00-00 |
from US $16.43 |
||
|
6
|
6
3D8-18535-00-00 Bar, Shift Fork Guide 2 |
3D8-18535-00-00 |
from US $14.03 |
