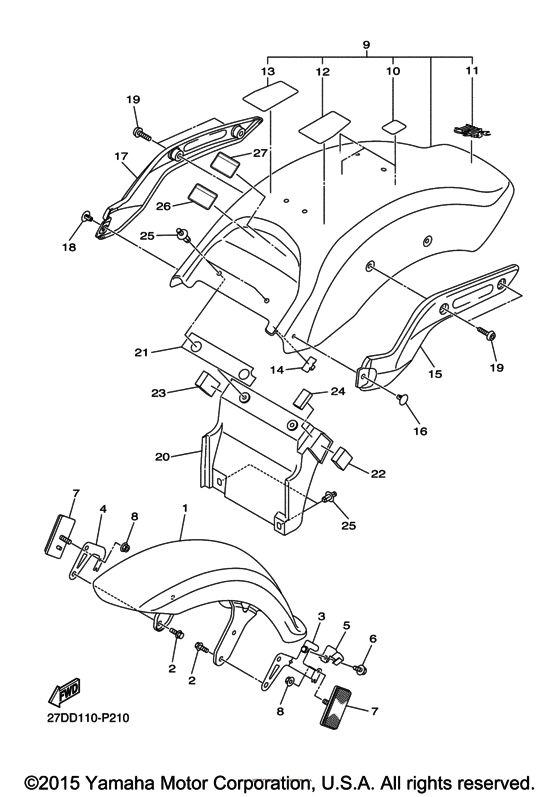

Fender Diagram Yamaha XVS1300 Stryker
- Year
- 2016
- Colour
- Vivid Orange Metallic 2
- Model code
- 1GPL
- Sales region
- United States (California)
- Базовая модель
- XVS13CGCO
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27D-YK215-11-P6 Front Fender CompUse for Color VIVID ORANGE METALLIC 2 ( VOM2 / 0552 ) |
27D-YK215-11-P6 |
US $502.87 |
||
|
2
|
2
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
3
|
3
27D-21587-00-00 Stay 1 |
27D-21587-00-00 |
from US $12.89 |
||
|
4
|
4
27D-21588-00-00 Stay 2 |
27D-21588-00-00 |
from US $6.66 |
||
|
5
|
5
27D-25887-00-00 Holder, Brake Hose |
27D-25887-00-00 |
from US $4.96 |
||
|
6
|
6
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
7
|
7
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
8
|
8
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
9
|
9
27D-W2161-40-P5 Rear Fender CompUse for Color VIVID ORANGE METALLIC 2 ( VOM2 / 0552 ) |
27D-W2161-40-P5 |
US $1,461.95 |
||
| replacement | |||||
|
9
|
9
27D-W2161-50-P5 Rear Fender CompUse for Color VIVID ORANGE METALLIC 2 ( VOM2 / 0552 ) |
27D-W2161-50-P5 |
US $1,461.95 |
||
|
10
|
10
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $6.74 |
||
|
11
|
11
46B-2163G-10-00 Emblem 1 |
46B-2163G-10-00 |
from US $7.08 |
||
|
12
|
12
27D-216A2-00-00 Seal, 2 |
27D-216A2-00-00 |
from US $5.81 |
||
|
13
|
13
27D-216A3-00-00 Seal, 3 |
27D-216A3-00-00 |
from US $5.81 |
||
|
14
|
14
90465-04020-00 Clamp |
90465-04020-00 |
from US $1.98 |
||
|
15
|
15
27D-2164F-10-00 Stay 1 |
27D-2164F-10-00 |
from US $62.03 |
||
|
16
|
16
90269-05074-00 Rivet |
90269-05074-00 |
from US $1.84 |
||
|
17
|
17
27D-2164G-10-00 Stay 2 |
27D-2164G-10-00 |
from US $62.03 |
||
|
18
|
18
90269-05074-00 Rivet |
90269-05074-00 |
from US $1.84 |
||
|
19
|
19
90111-08033-00 Bolt, Hex. Socket Button |
90111-08033-00 |
from US $3.74 |
||
|
20
|
20
27D-21629-00-00 Guard, Mud |
27D-21629-00-00 |
from US $16.43 |
||
|
21
|
21
3D8-21638-00-00 Damper 1 |
3D8-21638-00-00 |
from US $1.70 |
||
|
22
|
22
905-20130-01-00 Damper, Plate |
905-20130-01-00 |
from US $1.42 |
||
|
23
|
23
905-20130-02-00 Damper, Plate |
905-20130-02-00 |
from US $1.56 |
||
|
24
|
24
7CF-22869-00-00 Mole |
7CF-22869-00-00 |
from US $1.19 |
||
|
25
|
25
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
26
|
26
5RU-21686-00-00 Plate, Routing 2FOR CALIFORNIA |
5RU-21686-00-00 |
from US $2.27 |
||
|
27
|
27
34B-21684-00-00 Plate, RoutingFOR CALIFORNIA |
34B-21684-00-00 |
from US $1.56 |
||
