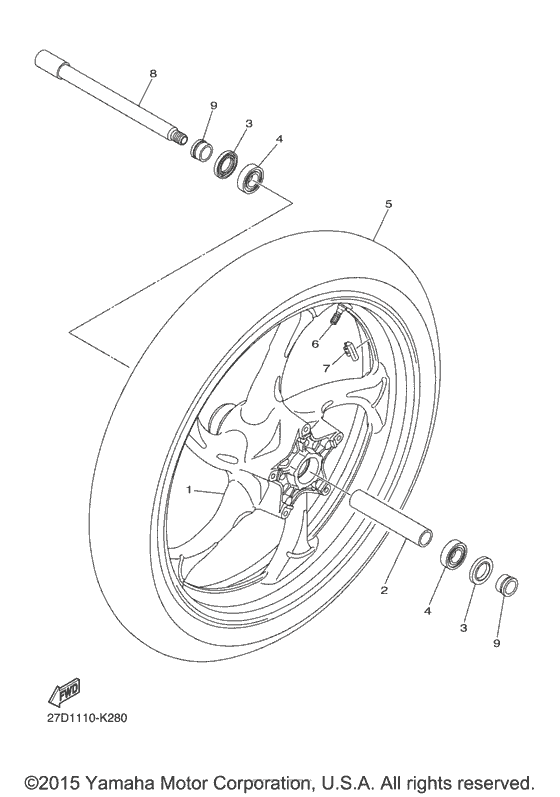

Front wheel Diagram Yamaha XVS1300 Stryker
- Year
- 2016
- Colour
- Vivid Orange Metallic 2
- Model code
- 1GPL
- Sales region
- United States (California)
- Базовая модель
- XVS13CGCO
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27D-25168-00-3X Cast Wheel, FrontLGB/OS3 |
27D-25168-00-3X |
from US $683.73 |
||
|
2
|
2
903-87220-8J-00 Collar |
903-87220-8J-00 |
from US $17.61 |
||
|
3
|
3
93106-28043-00 Oil Seal |
93106-28043-00 |
from US $5.68 |
||
|
4
|
4
93306-07208-00 Bearing |
93306-07208-00 |
from US $13.82 |
||
|
5
|
5
941-12210-20-00 Tire (120/70-21 M/c 62H Exedra)BRIDGESTONE |
941-12210-20-00 |
US $382.59 |
||
|
6
|
6
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
7
|
7
5MT-25398-00-00 Balancer, Wheel (10G)UN |
5MT-25398-00-00 |
from US $8.46 |
||
|
7
|
7
5MT-25398-10-00 Balancer, Wheel (20G)UN |
5MT-25398-10-00 |
from US $8.46 |
||
|
7
|
7
5MT-25398-20-00 Balancer, Wheel (30G)UN |
5MT-25398-20-00 |
from US $8.46 |
||
|
8
|
8
1D7-25181-10-00 Axle, Wheel |
1D7-25181-10-00 |
from US $70.38 |
||
| replacement | |||||
|
8
|
8
1D7-25181-00-00 Axle, Wheel |
1D7-25181-00-00 |
from US $73.22 |
||
|
9
|
9
903-87220-16-00 Collar, Wheel |
903-87220-16-00 |
from US $12.62 |
||
