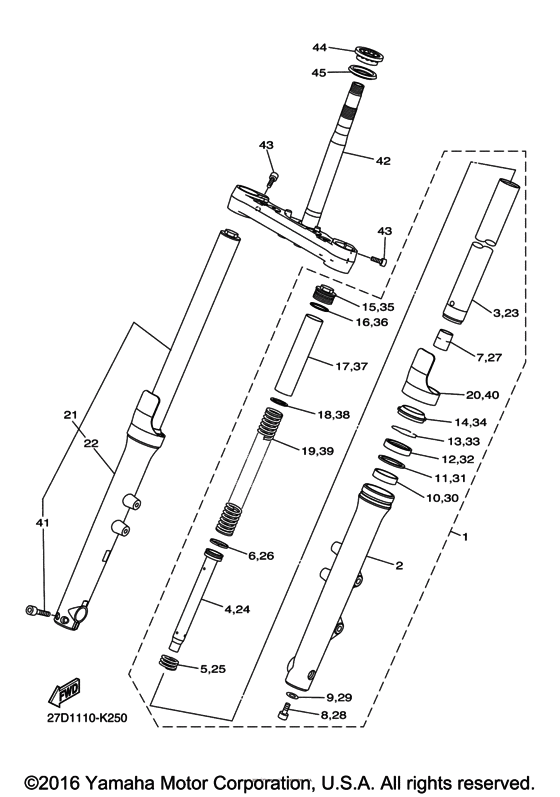

Front fork Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2017
- Colour
- Black Metallic X
- Model code
- BJ34
- Sales region
- USA
- Базовая модель
- XVS13CHB
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27D-23102-11-00 Front Fork Assy (L.h) |
27D-23102-11-00 |
from US $581.54 |
||
|
2
|
2
27D-23126-11-00 Tube, Outer (L.h) |
27D-23126-11-00 |
from US $292.90 |
||
|
3
|
3
27D-23110-00-00
Inner Tube Comp.1
|
27D-23110-00-00 |
— | ||
|
4
|
4
27D-23171-00-00 Piston, Front Fork |
27D-23171-00-00 |
from US $54.71 |
||
|
5
|
5
3VD-23151-00-00 Spring, Rebound |
3VD-23151-00-00 |
US $5.24 |
||
|
6
|
6
27D-23157-00-00 Ring, Piston |
27D-23157-00-00 |
from US $2.69 |
||
|
7
|
7
27D-23173-00-00 Spindle, Taper |
27D-23173-00-00 |
from US $12.18 |
||
|
8
|
8
90110-10N52-00 Bolt, Hexagon Socket Head |
90110-10N52-00 |
from US $6.51 |
||
|
9
|
9
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
10
|
10
3VD-23125-10-00 Metal, Slide 1 |
3VD-23125-10-00 |
from US $15.68 |
||
|
11
|
11
3VD-23115-00-00 Guide, Cover Upper |
3VD-23115-00-00 |
from US $6.51 |
||
|
12
|
12
5VU-23145-00-00 Oil Seal |
5VU-23145-00-00 |
from US $10.44 |
||
|
13
|
13
3VD-23156-00-00 Ring, Snap |
3VD-23156-00-00 |
from US $5.97 |
||
|
14
|
14
3VD-23144-00-00 Seal, Dust |
3VD-23144-00-00 |
from US $18.17 |
||
|
15
|
15
27D-2311H-00-00 Fork Bolt |
27D-2311H-00-00 |
from US $22.62 |
||
|
16
|
16
93210-35N02-00 O-Ring |
93210-35N02-00 |
from US $4.16 |
||
|
17
|
17
27D-23118-00-00 Spacer |
27D-23118-00-00 |
from US $13.18 |
||
|
18
|
18
90201-25289-00 Washer, Plate (T=1.6) |
90201-25289-00 |
from US $2.77 |
||
|
19
|
19
27D-23141-00-00 Spring, Front Fork |
27D-23141-00-00 |
from US $32.73 |
||
|
20
|
20
4TX-2331G-00-00 Cover |
4TX-2331G-00-00 |
from US $10.83 |
||
|
21
|
21
27D-23103-11-00
Front Fork Assy (R.h)
|
27D-23103-11-00 |
— | ||
|
22
|
22
27D-23136-11-00
Tube, Outer (R.h)
|
27D-23136-11-00 |
— | ||
|
23
|
23
27D-23110-00-00
Inner Tube Comp.1
|
27D-23110-00-00 |
— | ||
|
24
|
24
27D-23171-00-00 Piston, Front Fork |
27D-23171-00-00 |
from US $54.71 |
||
|
25
|
25
3VD-23151-00-00 Spring, Rebound |
3VD-23151-00-00 |
US $5.24 |
||
|
26
|
26
27D-23157-00-00 Ring, Piston |
27D-23157-00-00 |
from US $2.69 |
||
|
27
|
27
27D-23173-00-00 Spindle, Taper |
27D-23173-00-00 |
from US $12.18 |
||
|
28
|
28
90110-10N52-00 Bolt, Hexagon Socket Head |
90110-10N52-00 |
from US $6.51 |
||
|
29
|
29
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
30
|
30
3VD-23125-10-00 Metal, Slide 1 |
3VD-23125-10-00 |
from US $15.68 |
||
|
31
|
31
3VD-23115-00-00 Guide, Cover Upper |
3VD-23115-00-00 |
from US $6.51 |
||
|
32
|
32
5VU-23145-00-00 Oil Seal |
5VU-23145-00-00 |
from US $10.44 |
||
|
33
|
33
3VD-23156-00-00 Ring, Snap |
3VD-23156-00-00 |
from US $5.97 |
||
|
34
|
34
3VD-23144-00-00 Seal, Dust |
3VD-23144-00-00 |
from US $18.17 |
||
|
35
|
35
27D-2311H-00-00 Fork Bolt |
27D-2311H-00-00 |
from US $22.62 |
||
|
36
|
36
93210-35N02-00 O-Ring |
93210-35N02-00 |
from US $4.16 |
||
|
37
|
37
27D-23118-00-00 Spacer |
27D-23118-00-00 |
from US $13.18 |
||
|
38
|
38
90201-25289-00 Washer, Plate (T=1.6) |
90201-25289-00 |
from US $2.77 |
||
|
39
|
39
27D-23141-00-00 Spring, Front Fork |
27D-23141-00-00 |
from US $32.73 |
||
|
40
|
40
4TX-2331G-00-00 Cover |
4TX-2331G-00-00 |
from US $10.83 |
||
|
41
|
41
91314-08035-00 Bolt, Hexagon Socket Head |
91314-08035-00 |
from US $3.60 |
||
|
42
|
42
27D-23340-10-00 Under Bracket Comp |
27D-23340-10-00 |
from US $391.47 |
||
|
43
|
43
91314-10025-00 Bolt, Hexagon Socket Head |
91314-10025-00 |
from US $4.11 |
||
|
44
|
44
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.49 |
||
|
45
|
45
3FV-23462-00-00 Seal, Steering |
3FV-23462-00-00 |
from US $18.86 |
