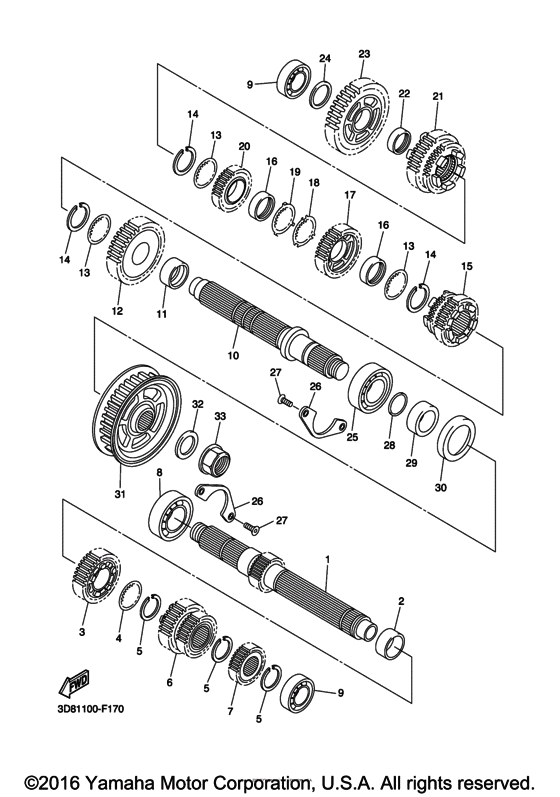

Transmission Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2017
- Colour
- Black Metallic X
- Model code
- BJ35
- Sales region
- United States (California)
- Базовая модель
- XVS13CHCB
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-17411-00-00 Axle, Main (13T)Axle, main (13t) |
3D8-17411-00-00 |
from US $216.91 |
||
|
2
|
2
90387-28003-00 Collar |
90387-28003-00 |
from US $11.19 |
||
|
3
|
3
3D8-17151-00-00 Gear, 5Th Pinion (25T)Gear, 5th pinion (25t) |
3D8-17151-00-00 |
from US $71.57 |
||
|
4
|
4
90209-25011-00 Washer |
90209-25011-00 |
from US $2.55 |
||
|
5
|
5
93440-28184-00 Circlip |
93440-28184-00 |
from US $2.36 |
||
|
6
|
6
27D-17131-00-00 Gear, 3Rd Pinion (21/26T) |
27D-17131-00-00 |
from US $163.03 |
||
|
7
|
7
3D8-17121-00-00 Gear, 2Nd Pinion (18T)Gear, 2nd pinion (18t) |
3D8-17121-00-00 |
from US $34.85 |
||
|
8
|
8
93306-37817-00 Bearing |
93306-37817-00 |
from US $38.60 |
||
|
9
|
9
933-06372-15-00 Bearing |
933-06372-15-00 |
from US $35.56 |
||
|
10
|
10
3D8-17421-00-00 Axle, Drive |
3D8-17421-00-00 |
from US $180.99 |
||
|
11
|
11
90387-31003-00 Collar |
90387-31003-00 |
from US $11.76 |
||
|
12
|
12
3D8-17221-00-00 Gear, 2Nd Wheel (32T)Gear, 2nd wheel (32t) |
3D8-17221-00-00 |
from US $111.63 |
||
|
13
|
13
90209-28008-00 Washer |
90209-28008-00 |
from US $3.04 |
||
|
14
|
14
93440-31187-00 Circlip |
93440-31187-00 |
from US $3.38 |
||
|
15
|
15
3D8-17285-00-00 Clutch, Dog |
3D8-17285-00-00 |
from US $96.85 |
||
|
16
|
16
90387-28004-00 Collar |
90387-28004-00 |
from US $12.12 |
||
|
17
|
17
3D8-17231-00-00 Gear, 3Rd Wheel (29T)Gear, 3rd wheel (29t) |
3D8-17231-00-00 |
from US $113.43 |
||
|
18
|
18
90214-29002-00 Washer, Claw |
90214-29002-00 |
from US $4.68 |
||
|
19
|
19
90214-28002-00 Washer, Claw |
90214-28002-00 |
from US $3.68 |
||
|
20
|
20
3D8-17241-00-00 Gear, 4Th Wheel (29T)Gear, 4th wheel (29t) |
3D8-17241-00-00 |
from US $109.98 |
||
|
21
|
21
3D8-17251-00-00 Gear, 5Th Wheel (24T)Gear, 5th wheel (24t) |
3D8-17251-00-00 |
from US $111.63 |
||
|
22
|
22
90387-25008-00 Collar |
90387-25008-00 |
from US $10.63 |
||
|
23
|
23
3D8-17211-00-00 Gear, 1St Wheel (36T)Gear, 1st wheel (36t) |
3D8-17211-00-00 |
from US $95.76 |
||
|
24
|
24
90201-224L4-00 Washer, Plate |
90201-224L4-00 |
from US $1.66 |
||
|
25
|
25
93306-30610-00 Bearing |
93306-30610-00 |
from US $42.26 |
||
| replacement | |||||
|
25
|
25
933-06306-30-00 Bearing(3Kw) |
933-06306-30-00 |
from US $48.50 |
||
|
26
|
26
3D8-15381-00-00 Plate, Bearing Cover |
3D8-15381-00-00 |
from US $13.74 |
||
|
27
|
27
90151-06024-00 Screw, Countersunk |
90151-06024-00 |
from US $1.81 |
||
| replacement | |||||
|
27
|
27
90151-06023-00 Screw, Countersunk |
90151-06023-00 |
from US $1.70 |
||
|
28
|
28
93210-27672-00 O-Ring |
93210-27672-00 |
from US $4.99 |
||
|
29
|
29
90387-30010-00 Collar |
90387-30010-00 |
from US $29 |
||
|
30
|
30
93102-45012-00 Oil Seal |
93102-45012-00 |
from US $8.88 |
||
|
31
|
31
27D-17651-00-00 Pulley, Belt |
27D-17651-00-00 |
from US $334.35 |
||
|
32
|
32
90208-22004-00 Washer, Conical Spring |
90208-22004-00 |
from US $10.96 |
||
|
33
|
33
90179-22016-00 Nut |
90179-22016-00 |
from US $21.92 |
||
