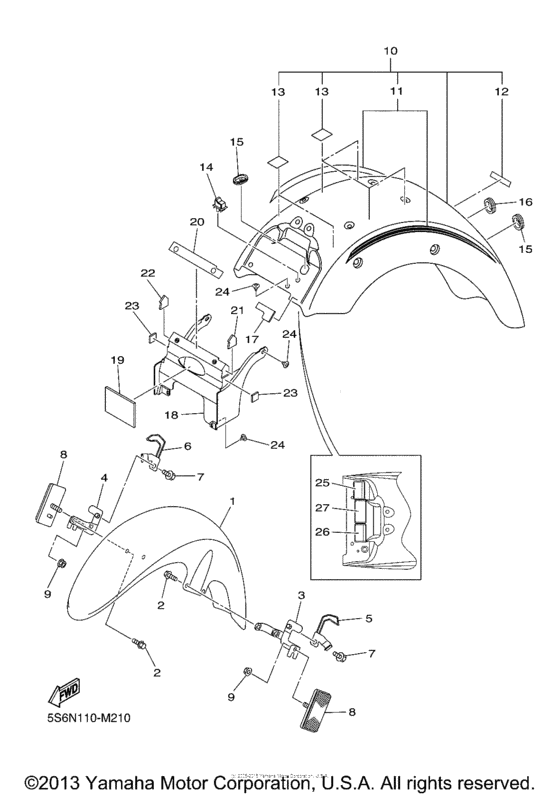

Fender Diagram Yamaha XVS1300 V-Star Tourer
- Year
- 2013
- Model code
- 5S6P
- Sales region
- USA
- Базовая модель
- XVS13CTDCR
- Engine Capacity
- 1300
- Model
- XVS1300CT (V-Star Tourer)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-21510-01-P1 Front Fender Compfor Color Deep Red Metallic K DRMK / 0918 |
3D8-21510-01-P1 |
from US $723.36 |
||
|
2
|
2
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.66 |
||
|
3
|
3
3D8-21587-00-00 Stay 1 |
3D8-21587-00-00 |
from US $24.23 |
||
|
4
|
4
3D8-21588-00-00 Stay 2 |
3D8-21588-00-00 |
from US $24.23 |
||
|
5
|
5
3D8-21597-00-00 Holder,wire 1 |
3D8-21597-00-00 |
from US $21.68 |
||
|
6
|
6
3D8-21598-00-00 Holder, Wire 2 |
3D8-21598-00-00 |
from US $21.68 |
||
|
7
|
7
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
8
|
8
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
9
|
9
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
10
|
10
3D8-W216R-30-P1 Rear Fender Assyfor Color Deep Red Metallic K DRMK / 0918 |
3D8-W216R-30-P1 |
US $1,408.52 |
||
|
11
|
11
3D8-2165A-40-00 Graphic Set, Rear Fender |
3D8-2165A-40-00 |
US $192.02 |
||
|
12
|
12
1D6-2153E-00-00 Emblem, Yamaha |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
12
|
12
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
|
12
|
12
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
|
13
|
13
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $6.74 |
||
|
14
|
14
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
|
15
|
15
90480-01015-00 Grommet |
90480-01015-00 |
from US $3.83 |
||
|
16
|
16
90338-20004-00 Plug |
90338-20004-00 |
from US $2.08 |
||
|
17
|
17
3D8-21747-00-00 Damper |
3D8-21747-00-00 |
from US $1.70 |
||
|
18
|
18
3D8-21629-00-P2 Guard, Mudfor Color Deep Red Metallic K DRMK / 0918 |
3D8-21629-00-P2 |
US $176.24 |
||
|
19
|
19
3D8-21621-00-00 Flap |
3D8-21621-00-00 |
from US $8.08 |
||
|
20
|
20
3D8-21638-00-00 Damper 1 |
3D8-21638-00-00 |
from US $1.70 |
||
|
21
|
21
3D8-21639-00-00 Damper 2 |
3D8-21639-00-00 |
from US $1.35 |
||
|
22
|
22
3D8-21649-00-00 Damper |
3D8-21649-00-00 |
from US $1.35 |
||
|
23
|
23
3D8-21652-00-00 Protector |
3D8-21652-00-00 |
from US $1.42 |
||
|
24
|
24
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
25
|
25
5RU-21686-00-00 Plate, Routing 2FOR CALIFORNIA |
5RU-21686-00-00 |
from US $2.27 |
||
|
26
|
26
34B-21684-00-00 Plate, RoutingFOR CALIFORNIA |
34B-21684-00-00 |
from US $1.56 |
||
|
27
|
27
1D7-21668-00-00 Label, Tire |
1D7-21668-00-00 |
from US $3.12 |
||
