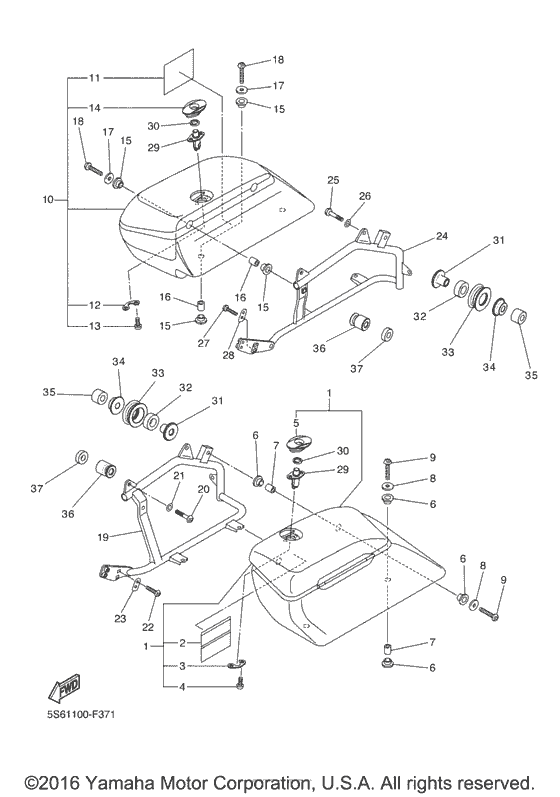

Saddlebags Diagram Yamaha XVS1300 V-Star Tourer
- Year
- 2016
- Colour
- Dull Red Metallic D
- Model code
- BH92
- Sales region
- United States (California)
- Базовая модель
- XVS13CTGCR
- Engine Capacity
- 1300
- Model
- XVS1300CT (V-Star Tourer)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5S6-F8430-01-00
Saddlebag Comp. 1
|
5S6-F8430-01-00 |
— | ||
|
2
|
2
5S6-F8446-00-00 Label, Caution |
5S6-F8446-00-00 |
US $3.55 |
||
|
3
|
3
2C5-F848T-00-00 Plate, Lock 1 |
2C5-F848T-00-00 |
from US $6.62 |
||
|
4
|
4
92014-05010-00 Bolt, Button Head |
92014-05010-00 |
from US $1.56 |
||
|
5
|
5
5S6-F8493-00-00 Cover Lock Assy 2 |
5S6-F8493-00-00 |
US $36.52 |
||
|
6
|
6
904-80200-04-00 Grommet |
904-80200-04-00 |
from US $1.98 |
||
|
7
|
7
903-87080-77-00 Collar |
903-87080-77-00 |
from US $2.83 |
||
|
8
|
8
90201-065G8-00 Washer, Plate |
90201-065G8-00 |
from US $1.70 |
||
|
9
|
9
92012-06025-00 Bolt, Button Head |
92012-06025-00 |
from US $1.42 |
||
|
10
|
10
5S6-F8440-01-00
Saddbag Comp. 2
|
5S6-F8440-01-00 |
— | ||
|
11
|
11
5S6-F8446-00-00 Label, Caution |
5S6-F8446-00-00 |
US $3.55 |
||
|
12
|
12
2C5-F848T-00-00 Plate, Lock 1 |
2C5-F848T-00-00 |
from US $6.62 |
||
|
13
|
13
92014-05010-00 Bolt, Button Head |
92014-05010-00 |
from US $1.56 |
||
|
14
|
14
5S6-F849K-00-00 Cover Lock Assy 2 |
5S6-F849K-00-00 |
from US $73.22 |
||
|
15
|
15
904-80200-04-00 Grommet |
904-80200-04-00 |
from US $1.98 |
||
|
16
|
16
903-87080-77-00 Collar |
903-87080-77-00 |
from US $2.83 |
||
|
17
|
17
90201-065G8-00 Washer, Plate |
90201-065G8-00 |
from US $1.70 |
||
|
18
|
18
92012-06025-00 Bolt, Button Head |
92012-06025-00 |
from US $1.42 |
||
|
19
|
19
5S6-28473-01-00 Frame, Saddlebag 1 |
5S6-28473-01-00 |
from US $255.60 |
||
|
20
|
20
913-80080-75-00
Bolt, Hex. Socket Head
75MM LONG |
913-80080-75-00 |
— | ||
|
21
|
21
90201-09802-00 WASHER,PLATE |
90201-09802-00 |
US $3.31 |
||
|
22
|
22
5S6-28474-01-00 Frame, Saddlebag 2 |
5S6-28474-01-00 |
from US $255.60 |
||
|
23
|
23
901-11080-46-00 Bolt, Hex. Socket Button |
901-11080-46-00 |
US $10.21 |
||
|
24
|
24
5S6-28417-00-00 Plate |
5S6-28417-00-00 |
US $11.63 |
||
|
25
|
25
913-80080-75-00
Bolt, Hex. Socket Head
75MM LONG |
913-80080-75-00 |
— | ||
|
26
|
26
90201-09802-00 WASHER,PLATE |
90201-09802-00 |
US $3.31 |
||
|
27
|
27
901-11080-46-00 Bolt, Hex. Socket Button |
901-11080-46-00 |
US $10.21 |
||
|
28
|
28
5S7-28417-00-00
Plate
|
5S7-28417-00-00 |
— | ||
|
29
|
29
5S6-28408-00-00 Lock Assy 1 |
5S6-28408-00-00 |
from US $92.15 |
||
|
30
|
30
5S6-28428-00-00 Seal 1 |
5S6-28428-00-00 |
from US $4.11 |
||
|
31
|
31
2C5-F8329-00-00 Spacer |
2C5-F8329-00-00 |
US $17.08 |
||
|
32
|
32
2C5-F836T-00-00
Damper, Locating 1
|
2C5-F836T-00-00 |
— | ||
|
33
|
33
2C5-F845L-00-00 Stopper, Open |
2C5-F845L-00-00 |
US $96.96 |
||
|
34
|
34
2C5-F8425-00-00 Damper 3 |
2C5-F8425-00-00 |
US $60.24 |
||
|
35
|
35
5S7-F83U0-00-00
Spacer
10.5MM LONG, REAR |
5S7-F83U0-00-00 |
— | ||
|
36
|
36
2C5-F842L-00-00 Pin, Stopper |
2C5-F842L-00-00 |
US $130.42 |
||
|
37
|
37
5S7-F8329-V0-00
Spacer
9MM LONG, FRONT |
5S7-F8329-V0-00 |
— |
