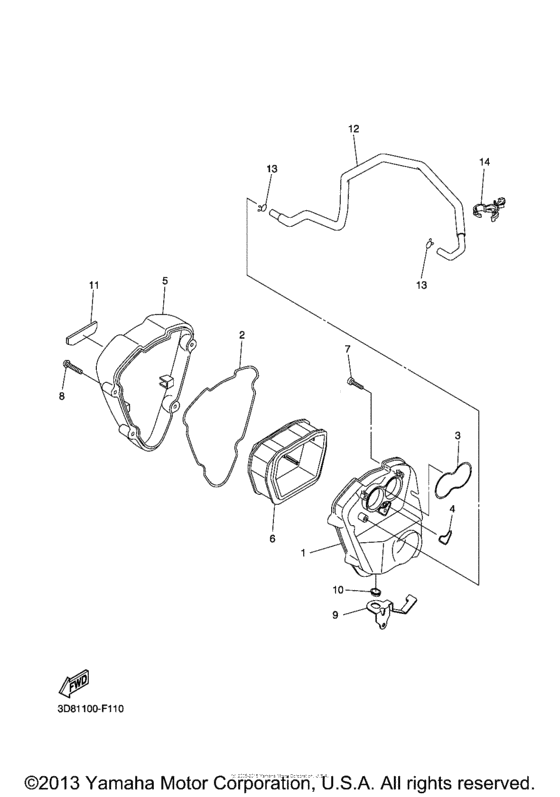

Intake (2) Diagram Yamaha XVS1300 V-Star Tourer
- Year
- 2008
- Model code
- 5S65
- Sales region
- USA
- Базовая модель
- XVS13CTXCB
- Engine Capacity
- 1300
- Model
- XVS1300CT (V-Star Tourer)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-14411-00-00 Case, Air Cleaner 1 |
3D8-14411-00-00 |
from US $82.93 |
||
| replacements | |||||
|
1
|
1
3D8-14411-01-00 Case, Air Cleaner 1 |
3D8-14411-01-00 |
from US $91.19 |
||
|
1
|
1
99999-03824-00 Case, Air Filter Set |
99999-03824-00 |
from US $96.17 |
||
|
2
|
2
4GA-14452-00-00
Seal
|
4GA-14452-00-00 |
— | ||
| replacement | |||||
|
2
|
2
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $10.54 |
||
|
3
|
3
3D8-14457-00-00 Seal |
3D8-14457-00-00 |
from US $4.68 |
||
|
4
|
4
3D8-14462-00-00 Seal |
3D8-14462-00-00 |
from US $2.69 |
||
|
5
|
5
3D8-14421-00-00 Case, Air Cleaner 2 |
3D8-14421-00-00 |
from US $161.19 |
||
| replacement | |||||
|
5
|
5
3D8-14421-01-00 Case, Air Cleaner 2 |
3D8-14421-01-00 |
from US $161.19 |
||
|
6
|
6
3D8-14451-00-00 Element, Air Cleaner |
3D8-14451-00-00 |
from US $37.73 |
||
|
7
|
7
91312-05025-00 Bolt |
91312-05025-00 |
from US $1.42 |
||
|
8
|
8
90111-05024-00 Bolt, Hex. Socket Button |
90111-05024-00 |
from US $1.81 |
||
|
9
|
9
3D8-14498-00-00 Stay 1 |
3D8-14498-00-00 |
from US $17.96 |
||
|
10
|
10
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
11
|
11
3D8-1442K-00-00 Emblem 2 |
3D8-1442K-00-00 |
from US $11.33 |
||
|
12
|
12
3D8-11166-00-00 Pipe, Breather 1 |
3D8-11166-00-00 |
from US $62.86 |
||
|
13
|
13
90467-16195-00 Clip |
90467-16195-00 |
US $3.68 |
||
| replacement | |||||
|
13
|
13
90467-15M14-00 Clip |
90467-15M14-00 |
from US $3.68 |
||
|
14
|
14
90464-20009-00 Clamp |
90464-20009-00 |
from US $1.70 |
||
