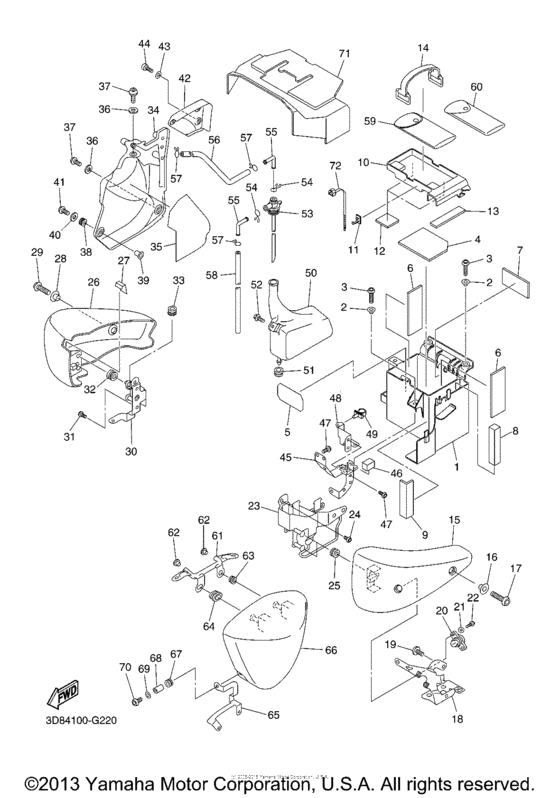

Side cover Diagram Yamaha XVS1300 V-Star Tourer
- Year
- 2008
- Model code
- 5S65
- Sales region
- USA
- Базовая модель
- XVS13CTXCS
- Engine Capacity
- 1300
- Model
- XVS1300CT (V-Star Tourer)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D8-2177G-02-00 Box, Battery |
3D8-2177G-02-00 |
from US $20.83 |
||
|
2
|
2
90387-06109-00 Collar |
90387-06109-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
903-87062-67-00 Collar |
903-87062-67-00 |
from US $1.56 |
||
|
3
|
3
92012-06020-00 Bolt, Button Head |
92012-06020-00 |
from US $1.66 |
||
|
4
|
4
51Y-82122-00-00 Seat, Battery |
51Y-82122-00-00 |
from US $2.69 |
||
|
5
|
5
5PX-21652-00-00 Protector |
5PX-21652-00-00 |
from US $8.50 |
||
|
6
|
6
5PX-21778-00-00 Damper, Locating 1 |
5PX-21778-00-00 |
from US $2.13 |
||
|
7
|
7
26H-21746-00-00 Damper, Side Cover |
26H-21746-00-00 |
from US $3.12 |
||
|
8
|
8
3D8-21779-00-00 Damper, Locating 2 |
3D8-21779-00-00 |
from US $1.42 |
||
|
9
|
9
3D8-2177M-00-00 Damper, Locating 3 |
3D8-2177M-00-00 |
from US $1.40 |
||
|
10
|
10
3D8-28173-10-00 Box, Tool |
3D8-28173-10-00 |
from US $6.94 |
||
|
11
|
11
90464-11013-00 Clamp |
90464-11013-00 |
from US $1.98 |
||
|
12
|
12
2GH-24185-00-00 Damper, Locating 5 |
2GH-24185-00-00 |
from US $1.03 |
||
|
13
|
13
1AE-2834E-00-00 Damper 1 |
1AE-2834E-00-00 |
from US $2.35 |
||
|
14
|
14
3L8-82131-01-00
Band, Battery
|
3L8-82131-01-00 |
— | ||
| replacement | |||||
|
14
|
14
22F-82131-00-00 Band, Battery |
22F-82131-00-00 |
from US $15.44 |
||
|
15
|
15
3D8-21711-00-P4
Cover, Side 1
Use for Color BLUISH SILVER 4 BS4 / 0820 |
3D8-21711-00-P4 |
— | ||
|
15
|
15
3D8-21711-00-P5
Cover, Side 1
Use for Color VERY DARK RED METALLIC 2 VDRM2 / 0957 |
3D8-21711-00-P5 |
— | ||
|
16
|
16
90387-06173-00 Collar |
90387-06173-00 |
from US $2.55 |
||
|
16
|
16
3D8-21711-00-P6 Cover, Side 1Use for Color Light Yellowish Gray Metallic 9 LYNM9 / 752 |
3D8-21711-00-P6 |
US $164.12 |
||
|
17
|
17
90149-06023-00 Screw |
90149-06023-00 |
from US $4.99 |
||
|
18
|
18
3D8-2175T-00-00 Bracket 1 |
3D8-2175T-00-00 |
from US $28.90 |
||
|
19
|
19
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
19
|
19
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
20
|
20
5PX-W2470-00-00 Rotor Set |
5PX-W2470-00-00 |
from US $72.67 |
||
|
21
|
21
90201-06034-00 Washer, Plate |
90201-06034-00 |
from US $1.98 |
||
|
22
|
22
90105-06639-00 Bolt, Flange (Small Head) |
90105-06639-00 |
from US $1.56 |
||
| replacements | |||||
|
22
|
22
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
3D8-2172M-00-00 Bracket 3 |
3D8-2172M-00-00 |
US $39.42 |
||
|
24
|
24
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.66 |
||
|
25
|
25
90480-12550-00 Grommet |
90480-12550-00 |
from US $1.84 |
||
|
26
|
26
3D8-21721-00-P4
Cover, Side 2
Use for Color BLUISH SILVER 4 BS4 / 0820 |
3D8-21721-00-P4 |
— | ||
|
27
|
27
3MA-27491-00-00 Protector |
3MA-27491-00-00 |
from US $4.39 |
||
|
27
|
27
3D8-21721-00-P6 Cover, Side 2Use for Color Light Yellowish Gray Metallic 9 LYNM9 / 752 |
3D8-21721-00-P6 |
US $164.12 |
||
|
27
|
27
3D8-21721-00-P5 Cover, Side 2Use for Color VERY DARK RED METALLIC 2 VDRM2 / 0957 |
3D8-21721-00-P5 |
US $164.12 |
||
|
28
|
28
90387-06173-00 Collar |
90387-06173-00 |
from US $2.55 |
||
|
29
|
29
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
30
|
30
3D8-2172N-00-00 Bracket 4 |
3D8-2172N-00-00 |
from US $40.90 |
||
|
31
|
31
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.66 |
||
|
32
|
32
90480-12550-00 Grommet |
90480-12550-00 |
from US $1.84 |
||
|
33
|
33
90480-18418-00 Grommet |
90480-18418-00 |
from US $3.05 |
||
| replacement | |||||
|
33
|
33
90480-18495-00 Grommet(3Ak) |
90480-18495-00 |
from US $2.83 |
||
|
34
|
34
3D8-21741-00-00 Cover, Side 4 |
3D8-21741-00-00 |
US $142.25 |
||
|
35
|
35
3D8-21746-00-00 Damper |
3D8-21746-00-00 |
US $21.76 |
||
|
36
|
36
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
37
|
37
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
38
|
38
90480-12007-00 Grommet |
90480-12007-00 |
from US $3.68 |
||
|
39
|
39
90560-06201-00 Spacer |
90560-06201-00 |
from US $3.83 |
||
|
40
|
40
90201-06M01-00 Washer, Plate |
90201-06M01-00 |
from US $1.98 |
||
|
41
|
41
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $2.08 |
||
|
42
|
42
3D8-2176E-00-00 Plate |
3D8-2176E-00-00 |
US $120.69 |
||
|
43
|
43
92902-05600-00 Washer, Plate |
92902-05600-00 |
US $1.07 |
||
| replacements | |||||
|
43
|
43
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
43
|
43
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
44
|
44
92014-05012-00 Bolt, Button Head |
92014-05012-00 |
from US $1.66 |
||
|
45
|
45
3D8-2172K-00-00 Bracket 1 |
3D8-2172K-00-00 |
from US $35.14 |
||
| replacement | |||||
|
45
|
45
3D8-2172K-01-00 Bracket 1 |
3D8-2172K-01-00 |
from US $35.14 |
||
|
46
|
46
3D8-21778-00-00 Damper, Locating 1 |
3D8-21778-00-00 |
from US $0.59 |
||
|
47
|
47
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.66 |
||
|
48
|
48
3D8-2172L-00-00 Bracket 2 |
3D8-2172L-00-00 |
from US $11.90 |
||
|
49
|
49
90464-12001-00 Clamp |
90464-12001-00 |
from US $1.70 |
||
|
50
|
50
3D8-21871-00-00 Tank, Recovery |
3D8-21871-00-00 |
from US $26.49 |
||
|
51
|
51
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.94 |
||
|
52
|
52
90119-06137-00 Bolt, With Washer |
90119-06137-00 |
from US $1.70 |
||
|
53
|
53
3D8-21875-00-00 Cap |
3D8-21875-00-00 |
from US $9.07 |
||
|
54
|
54
90467-11019-00 Clip |
90467-11019-00 |
US $1.70 |
||
| replacements | |||||
|
54
|
54
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
54
|
54
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.39 |
||
|
55
|
55
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $4.72 |
||
|
56
|
56
3D8-21826-00-00 Pipe, Breather |
3D8-21826-00-00 |
from US $6.94 |
||
|
57
|
57
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
58
|
58
90445-09097-00 Hose (L420) |
90445-09097-00 |
from US $6.52 |
||
| replacements | |||||
|
58
|
58
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
58
|
58
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
59
|
59
3D8-28100-00-00 Tool Kit |
3D8-28100-00-00 |
from US $30.60 |
||
|
60
|
60
3D8-28110-00-00 Tool Kit, 2 |
3D8-28110-00-00 |
from US $24.09 |
||
| replacement | |||||
|
60
|
60
3D8-28110-01-00 |
3D8-28110-01-00 |
US $28.64 |
||
|
61
|
61
3D8-14849-00-00 Bracket |
3D8-14849-00-00 |
from US $56.51 |
||
|
62
|
62
90338-10012-00 Plug |
90338-10012-00 |
US $4.52 |
||
|
63
|
63
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.94 |
||
|
64
|
64
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
65
|
65
3D8-15199-00-00 Bracket |
3D8-15199-00-00 |
US $34.54 |
||
|
66
|
66
3D8-21731-00-00 Cover, Side 3 |
3D8-21731-00-00 |
from US $190.66 |
||
|
67
|
67
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.50 |
||
|
68
|
68
903-87060-43-00 Collar |
903-87060-43-00 |
from US $1.70 |
||
|
69
|
69
90201-06088-00 Washer, Plate |
90201-06088-00 |
from US $1.81 |
||
|
70
|
70
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
71
|
71
3D8-24796-00-00 Cover |
3D8-24796-00-00 |
from US $30.70 |
||
|
72
|
72
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
