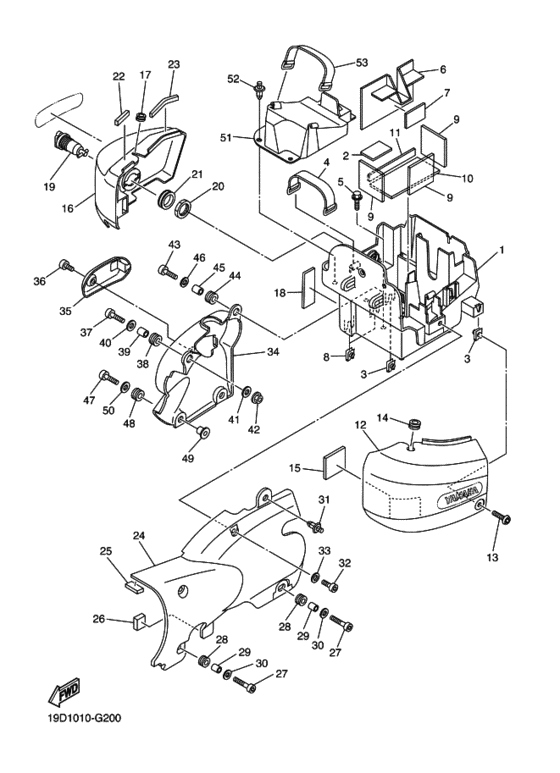

Side cover Diagram Yamaha XVS250 Drag Star
- Year
- 2008
- Colour
- Very Dark Orange Metallic 1 (VDOM1; 0858)
- Model code
- 19D2
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XVS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19D-2160A-00-00 Box Compボツクスコンプリート; |
19D-2160A-00-00 |
US $66.59 |
||
|
2
|
2
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.55 |
||
|
3
|
3
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
3
|
3
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
4
|
4
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
4
|
4
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $4.64 |
||
|
5
|
5
90119-06215-00 Bolt, With Washer |
90119-06215-00 |
from US $1.56 |
||
| replacements | |||||
|
5
|
5
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
5
|
5
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
|
6
|
6
5JX-2175E-00-00 Panel, Innerパネル、インナ; |
5JX-2175E-00-00 |
US $7.51 |
||
|
7
|
7
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.55 |
||
|
8
|
8
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
8
|
8
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
9
|
9
M12-T133A-00-00 Seat, Damper Aシート、 ダンパ Ａ; |
M12-T133A-00-00 |
from US $0.79 |
||
|
10
|
10
5Y1-82122-00-00 Seat, Batteryシート，バツテリ; |
5Y1-82122-00-00 |
from US $4.47 |
||
|
11
|
11
4GL-2177M-00-00 Damper, Locating 3ダンパ，ロケーテイング ３; |
4GL-2177M-00-00 |
US $1.98 |
||
|
12
|
12
5JX-21711-00-P7 Cover, Side 1カバー，サイド １; ＶＤＯＭ１ |
5JX-21711-00-P7 |
US $105.47 |
||
|
13
|
13
90149-06302-00 Screw |
90149-06302-00 |
from US $3.83 |
||
|
14
|
14
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
15
|
15
3VR-26387-00-00 Proof, Waterプルーフ， ウオータ; |
3VR-26387-00-00 |
US $2.55 |
||
|
16
|
16
19D-21721-00-P7 Cover, Side 2カバー，サイド ２; ＶＤＯＭ１ |
19D-21721-00-P7 |
US $115.11 |
||
|
17
|
17
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
18
|
18
4SV-28372-00-00 Damper |
4SV-28372-00-00 |
from US $1.84 |
||
|
19
|
19
55K-21708-00-00 Lock Assy 2ロツクアセンブリ ２; |
55K-21708-00-00 |
from US $49.46 |
||
|
20
|
20
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
21
|
21
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
22
|
22
5JX-21732-00-00 Seal 1シール １; |
5JX-21732-00-00 |
from US $1.98 |
||
|
23
|
23
5JX-21735-00-00 Seal 2シール ２; |
5JX-21735-00-00 |
US $1.98 |
||
|
24
|
24
5JX-21731-10-P1 Cover, Side 3カバー，サイド ３; 参照; ＭＢＬ２ |
5JX-21731-10-P1 |
US $134.84 |
||
|
25
|
25
89X-77167-00-00 Trim 3 |
89X-77167-00-00 |
from US $1.55 |
||
|
26
|
26
5JX-21778-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
5JX-21778-00-00 |
from US $1.34 |
||
|
27
|
27
913-14060-20-00 Boltボルト，ヘキサゴンソケツトヘツド; |
913-14060-20-00 |
from US $1.07 |
||
|
28
|
28
90480-10289-00 Grommet |
90480-10289-00 |
from US $1.70 |
||
|
29
|
29
90387-0600V-00 Collar(4Dn)カラー; |
90387-0600V-00 |
from US $1.70 |
||
|
30
|
30
90201-06062-00 Washer, Plateワツシヤ，プレート; |
90201-06062-00 |
from US $1.70 |
||
|
31
|
31
902-69070-77-00 Rivetリベツト; |
902-69070-77-00 |
from US $1.84 |
||
|
32
|
32
91314-06010-00 Bolt, Hexagon Socket Headボルト，ヘキサゴンソケツトヘツド; |
91314-06010-00 |
from US $1.56 |
||
|
33
|
33
92903-06200-00 Washer, Plainワツシヤ，プレーン; |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
33
|
33
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
34
|
34
19D-2117V-10-P0 Cover 7カバー ７; ＶＤＯＭ１ |
19D-2117V-10-P0 |
US $251.45 |
||
|
35
|
35
19D-2117W-10-P0 Cover 8カバー ８; ＶＤＯＭ１ |
19D-2117W-10-P0 |
US $92.15 |
||
|
36
|
36
90110-06308-00 Bolt, Hexagon Socket Head |
90110-06308-00 |
from US $1.40 |
||
|
37
|
37
90110-06274-00 Bolt, Hexagon Socket Head |
90110-06274-00 |
from US $1.07 |
||
| replacement | |||||
|
37
|
37
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
38
|
38
90480-10289-00 Grommet |
90480-10289-00 |
from US $1.70 |
||
|
39
|
39
90387-0600V-00 Collar(4Dn)カラー; |
90387-0600V-00 |
from US $1.70 |
||
|
40
|
40
90201-06062-00 Washer, Plateワツシヤ，プレート; |
90201-06062-00 |
from US $1.70 |
||
|
41
|
41
90201-06033-00 Washer, Plateワツシヤ，プレート; |
90201-06033-00 |
from US $1.70 |
||
|
42
|
42
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
42
|
42
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
43
|
43
90110-06274-00 Bolt, Hexagon Socket Head |
90110-06274-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
44
|
44
90480-10289-00 Grommet |
90480-10289-00 |
from US $1.70 |
||
|
45
|
45
90387-0600V-00 Collar(4Dn)カラー; |
90387-0600V-00 |
from US $1.70 |
||
|
46
|
46
90201-06062-00 Washer, Plateワツシヤ，プレート; |
90201-06062-00 |
from US $1.70 |
||
|
47
|
47
90110-06274-00 Bolt, Hexagon Socket Head |
90110-06274-00 |
from US $1.07 |
||
| replacement | |||||
|
47
|
47
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
48
|
48
90480-10289-00 Grommet |
90480-10289-00 |
from US $1.70 |
||
|
49
|
49
90387-071E0-00 Collarカラー; |
90387-071E0-00 |
from US $5.38 |
||
|
50
|
50
90201-06062-00 Washer, Plateワツシヤ，プレート; |
90201-06062-00 |
from US $1.70 |
||
|
51
|
51
19D-28173-00-00 Box, Toolボツクス，ツール; |
19D-28173-00-00 |
US $17.99 |
||
|
52
|
52
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
53
|
53
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
53
|
53
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $4.64 |
||
