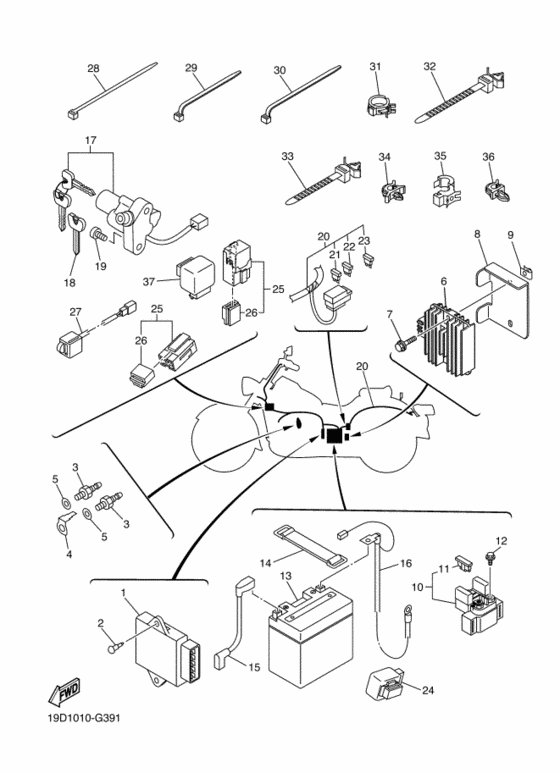

Electrical 1 Diagram Yamaha XVS250 Drag Star
- Year
- 2011
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 19D4
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XVS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KR-82305-10-00 Ignitor Unit Assy |
5KR-82305-10-00 |
US $596.64 |
||
|
2
|
2
90269-07001-00 Rivet |
90269-07001-00 |
from US $1.70 |
||
|
3
|
3
5FU-83790-20-00 Heater Assy (30W)ヒータアセンブリ ; ３０Ｗ |
5FU-83790-20-00 |
from US $27.77 |
||
|
4
|
4
5FU-82103-00-00 Terminal 1 |
5FU-82103-00-00 |
from US $1.84 |
||
|
5
|
5
90201-08016-00 Washer, Plate |
90201-08016-00 |
from US $1.70 |
||
|
6
|
6
4XY-81960-00-00 Rectifier & Regulator Assy |
4XY-81960-00-00 |
from US $93.90 |
||
|
7
|
7
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
7
|
7
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
8
|
8
19D-81975-00-00 Plate, Rectifier Fitting |
19D-81975-00-00 |
US $24.09 |
||
|
9
|
9
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
9
|
9
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
10
|
10
4SV-81940-12-00 Starter Relay Assy (Rc19-015)スタ−タリレーアセンブリ; |
4SV-81940-12-00 |
from US $43.98 |
||
|
11
|
11
1AE-82151-00-00 Fuse (30A-Bl)．フユーズ ; ３０Ａ−ＢＬ |
1AE-82151-00-00 |
from US $1.66 |
||
|
12
|
12
95027-06008-00 Bolt, Flangeボルト，フランジ; |
95027-06008-00 |
from US $1.43 |
||
|
13
|
13
907-93260-96-00
Battery Assy (Yuasa Ytz-7S)
バツテリアセンブリ; ＹＵＡＳＡ ＹＴＺ−７Ｓ |
907-93260-96-00 |
— | ||
|
14
|
14
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
15
|
15
5JX-82115-00-00 Wire, Plus Lead |
5JX-82115-00-00 |
US $18.14 |
||
|
16
|
16
5JX-82116-00-00 Wire, Minus Lead |
5JX-82116-00-00 |
US $17.28 |
||
|
17
|
17
4TR-82033-01-00 Key SetＡＰ＊１ |
4TR-82033-01-00 |
US $356 |
||
|
17
|
17
4TR-82501-01-00 Main Switch Steering Lock |
4TR-82501-01-00 |
from US $156.12 |
||
| replacement | |||||
|
17
|
17
4TR-82501-02-00 Main Switch Steering Lock |
4TR-82501-02-00 |
US $374.89 |
||
|
18
|
18
4BH-82511-09-00 Blank KeyＡＰ |
4BH-82511-09-00 |
from US $11.19 |
||
|
19
|
19
90149-08002-00 Screw |
90149-08002-00 |
from US $1.84 |
||
|
20
|
20
19D-82590-00-00 Wire Harness Assy |
19D-82590-00-00 |
US $435.12 |
||
|
21
|
21
5JJ-82151-90-00 Fuse - 5 A - Blade (．フユ−ズ ; ５Ａ−ＢＬ |
5JJ-82151-90-00 |
US $3.54 |
||
| replacement | |||||
|
21
|
21
67F-82151-20-00 Fuse (5A)．フユ−ズ ; ５Ａ−ＢＬ |
67F-82151-20-00 |
from US $2.98 |
||
|
22
|
22
5JJ-82151-10-00 Fuse (15A-Bl)．フユ−ズ ; １５Ａ−ＢＬ |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
22
|
22
67F-82151-50-00 Fuse (15A)．フユ−ズ ; １５Ａ−ＢＬ |
67F-82151-50-00 |
from US $1.98 |
||
|
23
|
23
5JJ-82151-30-00
Fuse (10A-Bl)
．フユ−ズ ; １０Ａ−ＢＬ |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
23
|
23
67F-82151-40-00 Fuse (10A)．フユ−ズ ; １０Ａ−ＢＬ |
67F-82151-40-00 |
from US $1.98 |
||
|
24
|
24
5KS-81950-40-00 Relay Assy (5Ks-40)リレ−アセンブリ; スターテイングサーキツトカツトオフリレー |
5KS-81950-40-00 |
US $53.74 |
||
|
25
|
25
5EA-81950-20-00 Relay Assy (5Ea-02)リレ−アセンブリ; ヘツドライトリレー／キヤブヒーター |
5EA-81950-20-00 |
from US $21.68 |
||
|
26
|
26
5EA-81952-00-00 Holder, Relay．ホルダ−，リレ−; |
5EA-81952-00-00 |
from US $4.39 |
||
|
27
|
27
5FU-82560-50-00 Thermo Switch Assy |
5FU-82560-50-00 |
from US $35.99 |
||
|
28
|
28
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
29
|
29
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
29
|
29
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
30
|
30
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
31
|
31
90464-25217-00 Clampクランプ; |
90464-25217-00 |
from US $1.70 |
||
|
32
|
32
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
32
|
32
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
33
|
33
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
33
|
33
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
34
|
34
90464-15156-00 Clamp |
90464-15156-00 |
from US $1.98 |
||
|
35
|
35
90464-25217-00 Clampクランプ; |
90464-25217-00 |
from US $1.70 |
||
|
36
|
36
90464-08263-00 Clamp |
90464-08263-00 |
from US $1.71 |
||
|
37
|
37
5C4-83350-00-00 Flasher Relay Assy |
5C4-83350-00-00 |
from US $51.95 |
||
| replacement | |||||
|
37
|
37
5C4-83350-01-00 Flasher Relay Assy |
5C4-83350-01-00 |
from US $51.12 |
||
