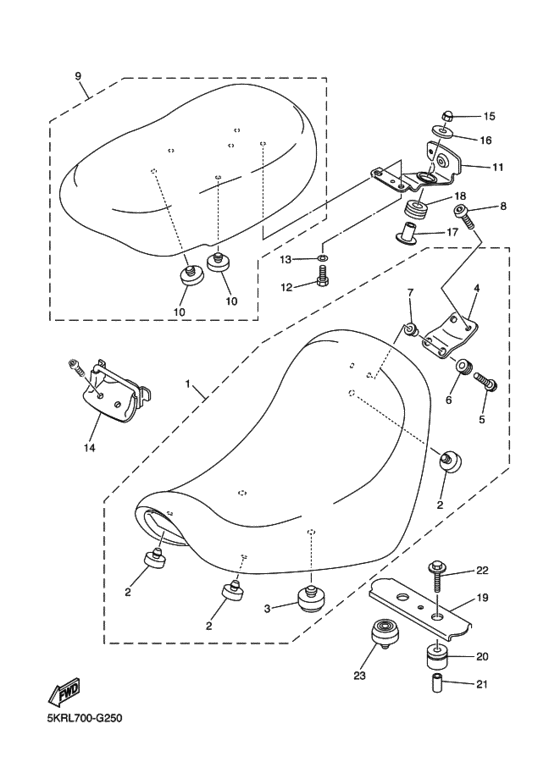

Seat Diagram Yamaha XVS250 Drag Star
- Year
- 2012
- Colour
- New White (NW; 001A)
- Model code
- 19D5
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XVS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JX-24710-40-00 Single Seat Assy |
5JX-24710-40-00 |
US $353.69 |
||
|
2
|
2
2GH-24741-00-00 Pad, Seat．パツド，シ−ト; |
2GH-24741-00-00 |
from US $2.72 |
||
| replacement | |||||
|
2
|
2
2GH-24741-01-00 ．パツド，シ−ト; |
2GH-24741-01-00 |
US $3.65 |
||
|
3
|
3
5JX-24741-00-00 Pad, Seat．パツド，シ−ト; |
5JX-24741-00-00 |
US $4.25 |
||
|
4
|
4
5JX-2475H-00-00 Bracket, Seat Lever 1．ブラケツト，シ−トレバ− １; |
5JX-2475H-00-00 |
US $8.93 |
||
|
5
|
5
95807-06016-00 Bolt, Flange．ボルト，フランジ; |
95807-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-06016-00 Bolt, Flange．ボルト，フランジ; |
95817-06016-00 |
from US $1.07 |
||
|
6
|
6
90480-13001-00 Grommet．グロメツト; |
90480-13001-00 |
from US $1.40 |
||
|
7
|
7
90387-06737-00 Collar．カラ−; |
90387-06737-00 |
from US $1.70 |
||
|
8
|
8
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
9
|
9
5JX-24750-40-00 Tandem Seat Assy |
5JX-24750-40-00 |
US $221.06 |
||
|
10
|
10
22W-24741-00-00 Pad, Seat．パツド，シ−ト; |
22W-24741-00-00 |
from US $2 |
||
|
11
|
11
5JX-2475J-01-00 Bracket, Seat Lever 2 |
5JX-2475J-01-00 |
US $15.44 |
||
|
12
|
12
970-07060-12-00
Bolt
ボルト; |
970-07060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97017-06012-00 Boltボルト; |
97017-06012-00 |
from US $1.21 |
||
|
13
|
13
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.93 |
||
|
14
|
14
5EL-2475N-00-00 Bracket |
5EL-2475N-00-00 |
from US $18.70 |
||
|
15
|
15
90176-08080-00 Nut, Crownナツト，クラウン; |
90176-08080-00 |
from US $1.70 |
||
|
16
|
16
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
17
|
17
90387-09004-00 Collar |
90387-09004-00 |
US $23.24 |
||
|
18
|
18
90480-22196-00 Grommet |
90480-22196-00 |
from US $1.84 |
||
|
19
|
19
5JX-24744-00-00 Plate, Seat Fitting |
5JX-24744-00-00 |
US $9.63 |
||
|
20
|
20
90480-14628-00 Grommet |
90480-14628-00 |
US $2.27 |
||
| replacement | |||||
|
20
|
20
90480-14182-00 Grommet |
90480-14182-00 |
from US $2.27 |
||
|
21
|
21
90387-06027-00 Collar |
90387-06027-00 |
from US $1.70 |
||
|
22
|
22
90119-06190-00 Bolt, With Washer |
90119-06190-00 |
from US $1.84 |
||
| replacement | |||||
|
22
|
22
90119-06163-00 Bolt, With Washer |
90119-06163-00 |
from US $1.84 |
||
|
23
|
23
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
