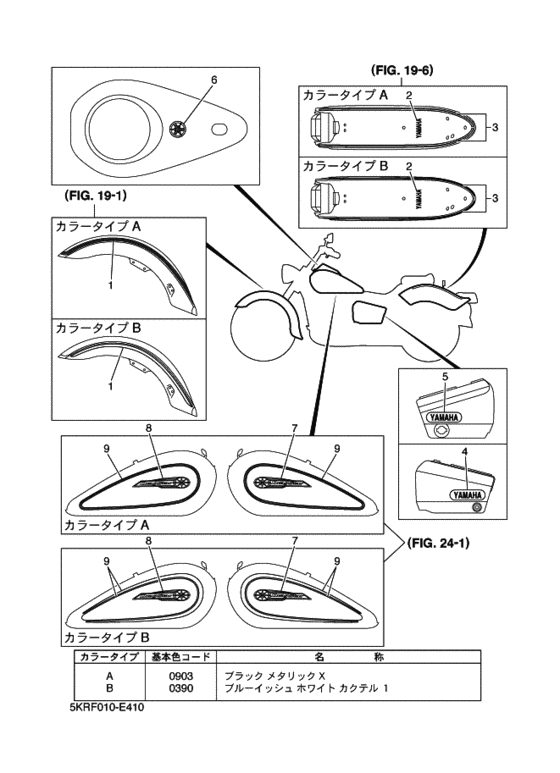

Graphic & Emblem Diagram Yamaha XVS250 Drag Star
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5KRF
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XVS250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JX-21570-60-00 Graphic Set, Front Fender．グラフイツクセツト，フロントフエンダ; ＵＲ |
5JX-21570-60-00 |
US $66.27 |
||
|
2
|
2
992-47000-80-00 Emblem, Yamaha．エンブレム，ヤマハ; |
992-47000-80-00 |
from US $7.79 |
||
|
3
|
3
5JX-2165A-60-00 Graphic Set,rear Fender．グラフイツクセツト，リヤフエンダ; ＵＲ |
5JX-2165A-60-00 |
US $87.78 |
||
|
4
|
4
3LS-21781-10-00 07749150120 Emblem (Yamaha) |
3LS-21781-10-00 |
from US $20.40 |
||
|
5
|
5
3LS-21781-10-00 07749150120 Emblem (Yamaha) |
3LS-21781-10-00 |
from US $20.40 |
||
|
6
|
6
4TR-2413B-00-00 Emblem |
4TR-2413B-00-00 |
from US $14.73 |
||
|
7
|
7
5JX-2416B-00-00 Emblem |
5JX-2416B-00-00 |
US $31.88 |
||
|
8
|
8
5JX-2417B-00-00 Emblem |
5JX-2417B-00-00 |
US $31.88 |
||
|
9
|
9
5JX-24240-90-00
Graphic Set
．グラフイツクセツト; ＵＲ |
5JX-24240-90-00 |
— |
