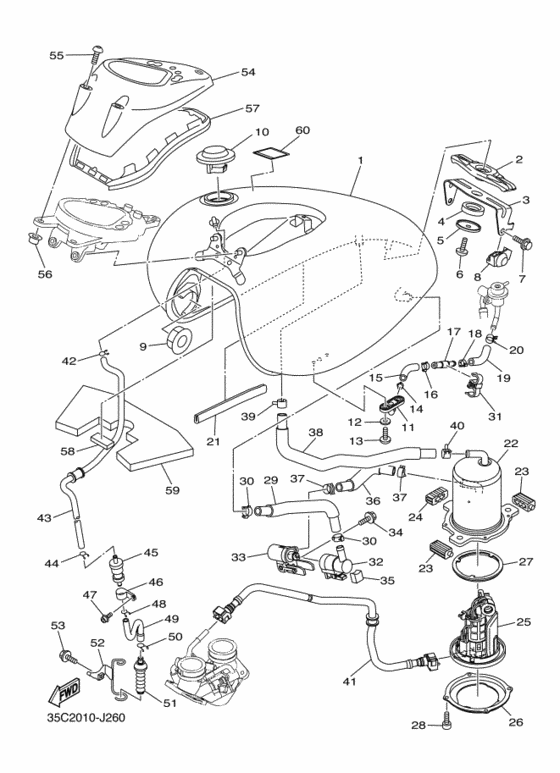

Fuel tank Diagram Yamaha XVS400 Drag Star
- Year
- 2010
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 35C2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XVS400 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35C-Y2410-00-04 Fuel Tank CompＷＧ フユエルタンクコンプリート; ＷＧ; ＵＲ ＳＭＸ |
35C-Y2410-00-04 |
US $1,544.40 |
||
|
2
|
2
35C-24182-00-00 Damper, Locating 2ダンパ，ロケーテイング ２; |
35C-24182-00-00 |
US $18.70 |
||
|
3
|
3
35C-2413Y-00-00 Bracket, Tank Fitting |
35C-2413Y-00-00 |
US $12.18 |
||
|
4
|
4
4TR-24183-00-00 Damper, Locating 3ダンパ，ロケーテイング ３; |
4TR-24183-00-00 |
from US $5.24 |
||
|
5
|
5
90209-06011-00 Washer |
90209-06011-00 |
from US $3.83 |
||
|
6
|
6
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.56 |
||
|
7
|
7
958-17080-16-00 Bolt, Flangeボルト，フランジ; |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
901-0508X-15-00
Blt,hex,1/4-20X5/8
ボルト，フランジ; |
901-0508X-15-00 |
— | ||
|
8
|
8
35C-24129-00-00 Cover, Side 1カバー，サイド １; |
35C-24129-00-00 |
US $13.46 |
||
|
9
|
9
4H7-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
4H7-24181-00-00 |
from US $7.93 |
||
|
10
|
10
4TR-24602-01-00 Cap Assy |
4TR-24602-01-00 |
US $113.43 |
||
| replacements | |||||
|
10
|
10
4TR-24602-20-00 Cap Assy |
4TR-24602-20-00 |
from US $113.43 |
||
|
10
|
10
4TR-24602-02-00 Cap Assy |
4TR-24602-02-00 |
US $113.43 |
||
|
11
|
11
35C-24300-00-00 Fuel Pipe Joint |
35C-24300-00-00 |
US $74.33 |
||
|
12
|
12
902-02051-93-00
Washer, Plate(3Gm)
ワツシヤ，プレート; |
902-02051-93-00 |
— | ||
| replacement | |||||
|
12
|
12
902-02051-87-00 Washer, Plateワツシヤ，プレート; |
902-02051-87-00 |
from US $1.28 |
||
|
13
|
13
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
14
|
14
904-67140-A7-00 Clip |
904-67140-A7-00 |
US $4.11 |
||
|
15
|
15
35C-24314-00-00 Pipe 4 |
35C-24314-00-00 |
US $9.63 |
||
|
16
|
16
904-67140-A7-00 Clip |
904-67140-A7-00 |
US $4.11 |
||
|
17
|
17
35C-14860-00-00 Check Valve Assy |
35C-14860-00-00 |
US $75.02 |
||
|
18
|
18
90467-130A1-00 Clip |
90467-130A1-00 |
from US $3.40 |
||
|
19
|
19
35C-24313-00-00 Pipe 3 |
35C-24313-00-00 |
US $7.65 |
||
|
20
|
20
90467-12003-00 Clip |
90467-12003-00 |
from US $3.54 |
||
|
21
|
21
1FK-2171L-00-00 Mole, Side Cover 1モール，サイドカバー １; |
1FK-2171L-00-00 |
from US $12.18 |
||
|
22
|
22
35C-244A0-00-00 Pump Case Comp |
35C-244A0-00-00 |
US $526.50 |
||
|
23
|
23
35C-24339-00-00 Grommet |
35C-24339-00-00 |
US $7.93 |
||
|
24
|
24
35C-24375-00-00 Grommet |
35C-24375-00-00 |
US $11.48 |
||
|
25
|
25
35C-13907-00-00 Fuel Pump Compフユエルポンプコンプリート; |
35C-13907-00-00 |
US $390.10 |
||
|
26
|
26
35C-24491-00-00 Bracket, Fuel Pump |
35C-24491-00-00 |
from US $21.68 |
||
|
27
|
27
1S4-24486-00-00 O-Ring |
1S4-24486-00-00 |
from US $27.63 |
||
|
28
|
28
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
29
|
29
35C-24311-00-00 Pipe, Fuel 1 |
35C-24311-00-00 |
US $28.05 |
||
|
30
|
30
5PX-2411M-00-00 Clip |
5PX-2411M-00-00 |
from US $6.52 |
||
|
31
|
31
904-64130-15-00 Clamp |
904-64130-15-00 |
US $1.77 |
||
|
32
|
32
5PX-24305-00-00 Fuel Pipe Joint Comp. 2フユエルパイプジヨイントコンプリート ２; |
5PX-24305-00-00 |
from US $43.24 |
||
|
33
|
33
5PX-24304-11-00 Fuel Pipe Joint Comp. 1Fuel pipe joint comp.1 フユエルパイプジヨイントコンプリート １; |
5PX-24304-11-00 |
from US $72.81 |
||
|
34
|
34
975-22055-20-00 Bolt, With Washer |
975-22055-20-00 |
from US $0.83 |
||
|
35
|
35
5PX-24184-01-00 Damper, Locating 4ダンパ，ロケーテイング ４; |
5PX-24184-01-00 |
from US $3.12 |
||
|
36
|
36
35C-24312-00-00 Pipe 2 |
35C-24312-00-00 |
US $14.03 |
||
|
37
|
37
90467-160A2-00 Clip |
90467-160A2-00 |
from US $2.55 |
||
|
38
|
38
35C-24316-00-00 Pipe 6 |
35C-24316-00-00 |
US $39.65 |
||
|
39
|
39
5PX-2411M-00-00 Clip |
5PX-2411M-00-00 |
from US $6.52 |
||
|
40
|
40
90467-160A2-00 Clip |
90467-160A2-00 |
from US $2.55 |
||
|
41
|
41
35C-13971-00-00 Pipe, Fuel 1 |
35C-13971-00-00 |
US $106.52 |
||
|
42
|
42
90467-09002-00 Clip |
90467-09002-00 |
from US $1.70 |
||
|
43
|
43
35C-24324-00-00 Pipe 13 |
35C-24324-00-00 |
US $56.37 |
||
|
44
|
44
90467-09002-00 Clip |
90467-09002-00 |
from US $1.70 |
||
|
45
|
45
5PX-24180-00-00 Roll Over Valve Assyロールオーババルブアセンブリ; |
5PX-24180-00-00 |
from US $40.20 |
||
|
46
|
46
4B5-24135-00-00 Clamp 1 |
4B5-24135-00-00 |
from US $8.50 |
||
|
47
|
47
901-10050-66-00 Bolt, Hexagon Socket Head |
901-10050-66-00 |
from US $1.42 |
||
|
48
|
48
90467-09002-00 Clip |
90467-09002-00 |
from US $1.70 |
||
|
49
|
49
35C-24325-00-00 Pipe 14 |
35C-24325-00-00 |
US $4.53 |
||
|
50
|
50
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
51
|
51
5UX-24481-00-00 Plug |
5UX-24481-00-00 |
from US $7.51 |
||
|
52
|
52
35C-24135-00-00 Clamp 1 |
35C-24135-00-00 |
US $19.69 |
||
|
53
|
53
95807-06014-00 Bolt, Flange |
95807-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
53
|
53
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
54
|
54
5KP-2171A-00-00 Cover, Topカバー，トツプ; |
5KP-2171A-00-00 |
US $115.23 |
||
|
55
|
55
90111-05007-00 Bolt, Hex. Socket Button |
90111-05007-00 |
from US $1.98 |
||
|
56
|
56
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
57
|
57
5KP-2414G-00-00 Sealシール; |
5KP-2414G-00-00 |
US $54.44 |
||
|
58
|
58
3XV-21717-00-00 Damperダンパ; |
3XV-21717-00-00 |
from US $2.27 |
||
|
59
|
59
35C-24724-00-00 Damper, Seatダンパ，シート; |
35C-24724-00-00 |
US $5.38 |
||
|
60
|
60
3XC-2118K-10-00 Label, Cautionラベル， コーシヨン; |
3XC-2118K-10-00 |
US $3.54 |
||
