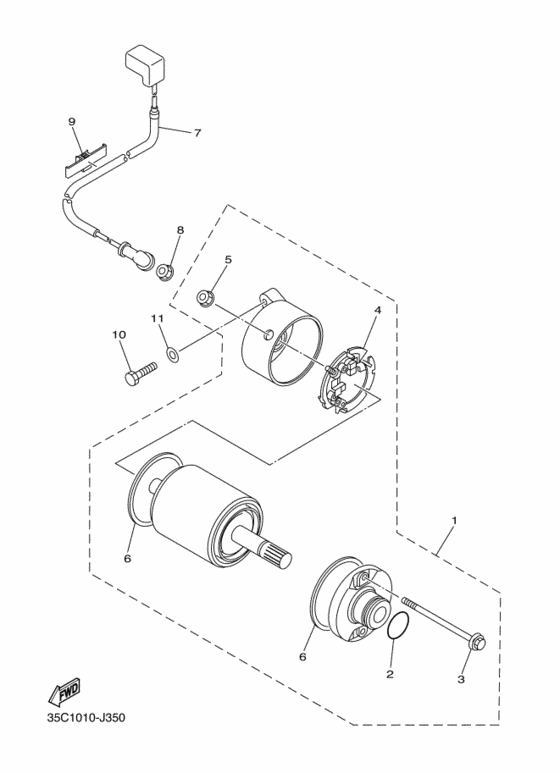

Starting motor Diagram Yamaha XVS400 Drag Star
- Year
- 2010
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 35C2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XVS400 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35C-81890-00-00 Motor Assyモータアセンブリ; |
35C-81890-00-00 |
US $417.38 |
||
|
2
|
2
1FK-81847-00-00
O-Ring
|
1FK-81847-00-00 |
— | ||
| replacement | |||||
|
2
|
2
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.98 |
||
|
3
|
3
3HE-81826-00-00 Bolt |
3HE-81826-00-00 |
from US $11.48 |
||
|
4
|
4
3KS-81840-00-00 Brush Holder Assy |
3KS-81840-00-00 |
from US $67.84 |
||
|
5
|
5
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
6
|
6
35C-81844-00-00 Gasket |
35C-81844-00-00 |
from US $20.97 |
||
|
7
|
7
35C-81815-00-00 Cord, Starter Motorコード，スタータモータ; |
35C-81815-00-00 |
US $60.10 |
||
|
8
|
8
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
9
|
9
4EB-8252H-00-00 Plate, Holderプレート，ホルダ; |
4EB-8252H-00-00 |
US $1.56 |
||
|
10
|
10
97070-06025-00 Boltボルト; |
97070-06025-00 |
from US $1.35 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
