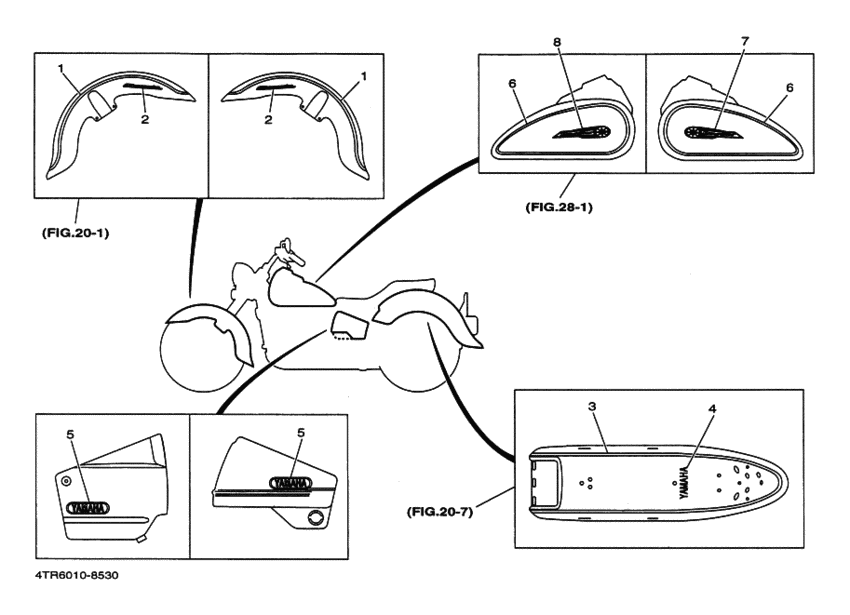

Graphic & Emblem (4TR5) Diagram Yamaha XVS400 Drag Star Classic
- Year
- 1998
- Colour
- Camellia Green (CMG; 00TK)
- Model code
- 4TR5
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- C
- Model
- XVS400C (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BN-21570-40-00
Graphic Set, Front Fender
＊グラフイツクセツト，フロントフエンダ; 参照 |
5BN-21570-40-00 |
— | ||
|
2
|
2
5BN-21565-00-00 Emblem 2＊エンブレム ２; 参照 |
5BN-21565-00-00 |
from US $26.07 |
||
| replacement | |||||
|
2
|
2
5BN-21565-01-00 Emblem 2＊エンブレム ２; 参照 |
5BN-21565-01-00 |
from US $26.07 |
||
|
3
|
3
5BN-2165A-40-00
Graphic Set,rear Fender
＊グラフイツクセツト，リヤフエンダ; 参照 |
5BN-2165A-40-00 |
— | ||
|
4
|
4
99237-00080-00 Emblem, Yamaha＊エンブレム，ＹＡＭＡＨＡ; 参照 |
99237-00080-00 |
from US $7.79 |
||
| replacement | |||||
|
4
|
4
992-47000-80-00 Emblem, Yamaha＊エンブレム，ＹＡＭＡＨＡ; 参照 |
992-47000-80-00 |
from US $7.79 |
||
|
5
|
5
3LS-21781-00-00 Emblem 1エンブレム; 参照 |
3LS-21781-00-00 |
from US $25.08 |
||
|
6
|
6
5BN-24240-40-00
Graphic Set
＊グラフイツクセツト; 参照 |
5BN-24240-40-00 |
— | ||
|
7
|
7
4VR-24161-00-00 Emblem 1 |
4VR-24161-00-00 |
US $74.33 |
||
| replacement | |||||
|
7
|
7
4VR-24161-09-00 Emblem 1 |
4VR-24161-09-00 |
US $54.21 |
||
|
8
|
8
4VR-24162-00-00 Emblem 2 |
4VR-24162-00-00 |
US $74.33 |
||
| replacement | |||||
|
8
|
8
4VR-24162-09-00 Emblem 2 |
4VR-24162-09-00 |
US $54.21 |
||
