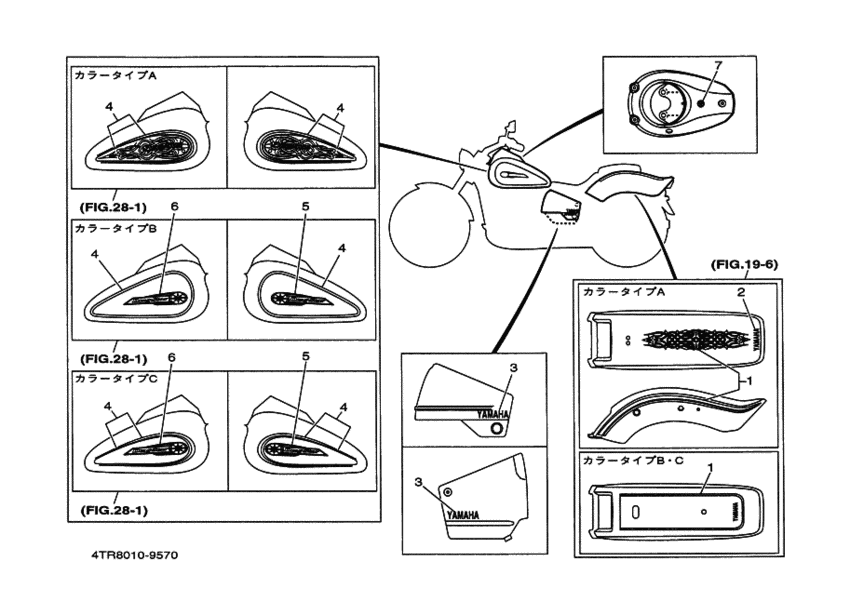

Graphic & Emblem (4TR8) Diagram Yamaha XVS400 Drag Star
- Year
- 1999
- Colour
- Dark Purplish Red Cocktail 3 (DPRC3; 0567)
- Model code
- 4TR8
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- C
- Model
- XVS400 (Drag Star)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VR-21675-30-00
Graphic, Rear Fender
＊グラフイツク，リヤフエンダ; |
4VR-21675-30-00 |
— | ||
|
4
|
4
4VR-24240-50-00
Graphic Set
＊グラフイツクセツト; |
4VR-24240-50-00 |
— | ||
|
5
|
5
4VR-24161-00-00 Emblem 1 |
4VR-24161-00-00 |
US $74.33 |
||
| replacement | |||||
|
5
|
5
4VR-24161-09-00 Emblem 1 |
4VR-24161-09-00 |
US $54.21 |
||
|
6
|
6
4VR-24162-00-00 Emblem 2 |
4VR-24162-00-00 |
US $74.33 |
||
| replacement | |||||
|
6
|
6
4VR-24162-09-00 Emblem 2 |
4VR-24162-09-00 |
US $54.21 |
||
|
7
|
7
4TR-2413B-00-00 Emblemエンブレム １; |
4TR-2413B-00-00 |
from US $14.73 |
||
