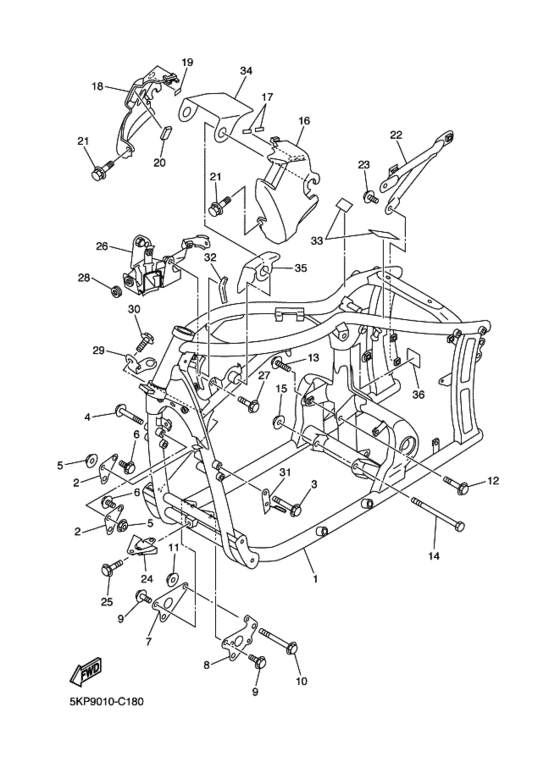

Frame Diagram Yamaha XVS400 Drag Star Classic
- Year
- 2004
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5KP9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XVS400C (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KP-21110-40-00
Frame Comp
フレームコンプリート; |
5KP-21110-40-00 |
— | ||
|
2
|
2
4VR-21315-00-00 Stay, Engine 1ステー，エンジン ２; |
4VR-21315-00-00 |
from US $11.76 |
||
|
3
|
3
90105-082A4-00 Bolt, Flangeボルト，フランジ; |
90105-082A4-00 |
from US $4.25 |
||
|
4
|
4
90105-084A1-00 Bolt, Flangeボルト，フランジ; |
90105-084A1-00 |
from US $5.10 |
||
|
5
|
5
90179-08684-00 Nut |
90179-08684-00 |
from US $1.84 |
||
|
6
|
6
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
7
|
7
4VR-21317-00-00 Stay, Engine 3ステー，エンジン ３; |
4VR-21317-00-00 |
from US $16.86 |
||
|
8
|
8
5BN-21317-00-00 Stay, Engine 3ステー，エンジン ３; |
5BN-21317-00-00 |
from US $64.94 |
||
|
9
|
9
90105-08307-00 Bolt, Flangeボルト，フランジ; |
90105-08307-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
95814-08020-00 Bolt, Flange(4Hm)ボルト，フランジ; |
95814-08020-00 |
from US $1.56 |
||
|
10
|
10
95814-10100-00 Bolt, Flange |
95814-10100-00 |
from US $5.53 |
||
|
11
|
11
90179-10658-00 Nut, Flangeナツト; |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
11
|
11
95704-10500-00 Nut, With Washerナツト; |
95704-10500-00 |
from US $1.07 |
||
|
12
|
12
901-05102-53-00 Bolt, Flangeボルト，フランジ; |
901-05102-53-00 |
from US $5.81 |
||
| replacement | |||||
|
12
|
12
90105-10788-00 Bolt, Flangeボルト，フランジ; |
90105-10788-00 |
from US $5.81 |
||
|
13
|
13
901-05102-32-00
Bolt, Flange
ボルト，フランジ; |
901-05102-32-00 |
— | ||
| replacements | |||||
|
13
|
13
95817-10060-00 Bolt, Flangeボルト，フランジ; |
95817-10060-00 |
from US $2.83 |
||
|
13
|
13
90105-10169-00 Bolt, Flangeボルト，フランジ; |
90105-10169-00 |
from US $5.67 |
||
|
14
|
14
90101-12694-00 Bolt |
90101-12694-00 |
from US $20.12 |
||
|
15
|
15
90179-12248-00 Nutナツト; |
90179-12248-00 |
from US $4.34 |
||
| replacement | |||||
|
15
|
15
90179-12657-00 Nutナツト; |
90179-12657-00 |
from US $6.52 |
||
|
16
|
16
4TR-2171E-00-00 Cover, Side 5カバー，サイド ５; |
4TR-2171E-00-00 |
from US $24.38 |
||
| replacement | |||||
|
16
|
16
4TR-2171E-01-00 Cover, Side 5カバー，サイド ５; |
4TR-2171E-01-00 |
from US $25.58 |
||
|
17
|
17
3BN-21747-00-00 Damper |
3BN-21747-00-00 |
from US $1.96 |
||
| replacement | |||||
|
17
|
17
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
18
|
18
4TR-2171X-40-00 Cover, Side 6 |
4TR-2171X-40-00 |
from US $46.28 |
||
|
19
|
19
3BN-21747-00-00 Damper |
3BN-21747-00-00 |
from US $1.96 |
||
| replacement | |||||
|
19
|
19
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
20
|
20
4SV-28372-00-00 Damper |
4SV-28372-00-00 |
from US $1.84 |
||
|
21
|
21
90119-06236-00 Bolt, With Washer |
90119-06236-00 |
from US $1.84 |
||
|
22
|
22
4TR-21460-01-00 Stay, Mufflerステイ，マフラー; |
4TR-21460-01-00 |
from US $52.64 |
||
| replacement | |||||
|
22
|
22
4TR-21460-30-00 Stay, Mufflerステイ，マフラー; |
4TR-21460-30-00 |
from US $40.45 |
||
|
23
|
23
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
24
|
24
4VR-28356-01-00 Stay 1ステー １; |
4VR-28356-01-00 |
from US $15.44 |
||
|
25
|
25
90105-062A2-00 Bolt, Flangeボルト，フランジ; |
90105-062A2-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
958-17060-12-00 Bolt, Flangeボルト，フランジ; |
958-17060-12-00 |
from US $1.07 |
||
|
26
|
26
4TR-24491-10-00 Bracket, Fuel Pump |
4TR-24491-10-00 |
from US $54.85 |
||
|
27
|
27
95807-06014-00 Bolt, Flange |
95807-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
28
|
28
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
29
|
29
4TR-2144G-01-00 Stay, Stop Switchステー，ストツプスイツチ; |
4TR-2144G-01-00 |
from US $5.81 |
||
|
30
|
30
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
30
|
30
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
31
|
31
4VR-21161-00-00 Holder, Cableホルダ，ケーブル; |
4VR-21161-00-00 |
from US $24.79 |
||
|
32
|
32
4GY-2214F-00-00 Damper 1ダンパ １; |
4GY-2214F-00-00 |
from US $1.12 |
||
|
33
|
33
3SP-21732-00-00 Seal 1シール １; |
3SP-21732-00-00 |
from US $8.93 |
||
|
34
|
34
5KP-2177F-00-00 Coverカバー; |
5KP-2177F-00-00 |
US $19.55 |
||
|
35
|
35
5KP-21266-00-00 Sheet 1 |
5KP-21266-00-00 |
from US $7.51 |
||
|
36
|
36
3FY-21575-01-00 Seal 1シール １; |
3FY-21575-01-00 |
from US $8.08 |
||
