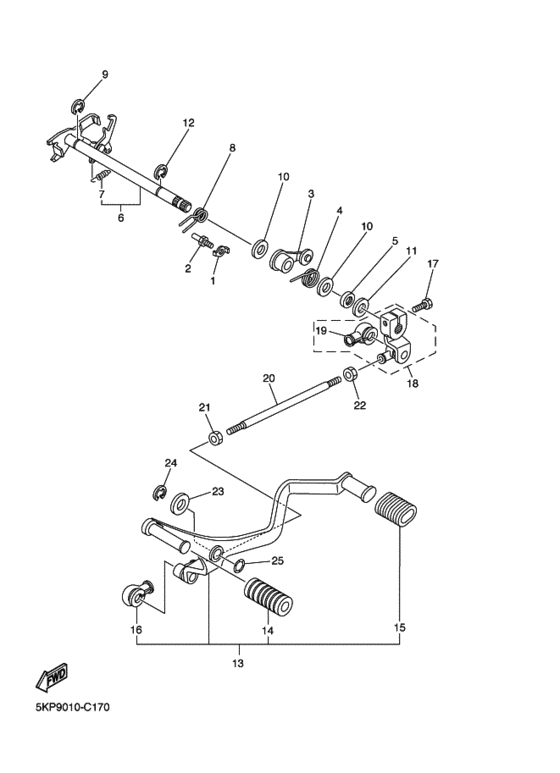

Shift shaft Diagram Yamaha XVS400 Drag Star Classic
- Year
- 2004
- Colour
- Dark Purplish Blue Metallic L (DPBML; 0865)
- Model code
- 5KP9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- XVS400C (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90215-18178-00 Washer, Lock |
90215-18178-00 |
from US $1.98 |
||
|
2
|
2
4G0-18127-00-00 Stopper, Screw |
4G0-18127-00-00 |
from US $6.94 |
||
| replacement | |||||
|
2
|
2
5VK-18127-00-00 Stopper, Screw |
5VK-18127-00-00 |
from US $6.94 |
||
|
3
|
3
4TR-18140-00-00 Stopper Lever Assyストツパレバーアセンブリ; |
4TR-18140-00-00 |
from US $34.43 |
||
|
4
|
4
90508-290B5-00 Spring, Torsionスプリング，トーシヨン; |
90508-290B5-00 |
from US $5.81 |
||
|
5
|
5
93102-12106-00 Oil Seal (Sd 12-22-5 Hs)オイルシール ; ＳＤ １２−２２−５ ＨＳ |
93102-12106-00 |
from US $2.98 |
||
| replacement | |||||
|
5
|
5
931-02123-21-00 Oil Sealオイルシール ; ＳＤ １２−２２−５ ＨＳ |
931-02123-21-00 |
from US $4.53 |
||
|
6
|
6
4TR-18120-00-00 Shift Lever Assyシフトレバーアセンブリ; |
4TR-18120-00-00 |
from US $57.20 |
||
|
7
|
7
90506-08227-00 Spring, Tension．スプリング，テンシヨン; |
90506-08227-00 |
from US $1.56 |
||
|
8
|
8
90508-32536-00 Spring, Torsionスプリング，トーシヨン; |
90508-32536-00 |
from US $4.53 |
||
|
9
|
9
99001-10600-00 Circlipサークリツプ; |
99001-10600-00 |
from US $1.35 |
||
| replacement | |||||
|
9
|
9
99006-10600-00 Circlipサークリツプ; |
99006-10600-00 |
from US $1.34 |
||
|
10
|
10
90201-12588-00 Washer, Plateワツシヤ，プレート; |
90201-12588-00 |
from US $1.70 |
||
|
11
|
11
90201-12575-00 Washer, Plate (353)ワツシヤ，プレート; |
90201-12575-00 |
from US $1.66 |
||
|
12
|
12
99001-10600-00 Circlipサークリツプ; |
99001-10600-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
99006-10600-00 Circlipサークリツプ; |
99006-10600-00 |
from US $1.34 |
||
|
13
|
13
5BN-18110-00-00 Shift Pedal Assy |
5BN-18110-00-00 |
from US $167.06 |
||
| replacement | |||||
|
13
|
13
5BN-18110-01-00 Shift Pedal Assy |
5BN-18110-01-00 |
from US $154.39 |
||
|
14
|
14
4NK-18113-10-00 Cover, Shift Pedal．カバー，シフトペダル; |
4NK-18113-10-00 |
from US $7.37 |
||
|
15
|
15
22N-18113-00-00 Cover, Shift Pedal．カバー，シフトペダル; |
22N-18113-00-00 |
from US $6.09 |
||
|
16
|
16
2H9-18154-00-00 Cover, Dust．カバー，ダスト; |
2H9-18154-00-00 |
from US $5.10 |
||
|
17
|
17
970-24060-20-00 Bolt(3Dm)ボルト; |
970-24060-20-00 |
from US $0.93 |
||
|
18
|
18
4TR-18112-00-00 Arm, Shiftアーム，シフト; |
4TR-18112-00-00 |
from US $39.38 |
||
|
19
|
19
2H9-18154-00-00 Cover, Dust．カバー，ダスト; |
2H9-18154-00-00 |
from US $5.10 |
||
|
20
|
20
5A8-18115-00-00 Rod, Shift |
5A8-18115-00-00 |
from US $17.14 |
||
|
21
|
21
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.70 |
||
|
22
|
22
95304-06700-00 Nut |
95304-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
22
|
22
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
22
|
22
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
23
|
23
90201-12688-00 Washer, Plateワツシヤ，プレート; |
90201-12688-00 |
from US $2.41 |
||
| replacement | |||||
|
23
|
23
90201-124E4-00 Washer, Plateワツシヤ，プレート; |
90201-124E4-00 |
from US $2.41 |
||
|
24
|
24
99009-12400-00 Circlipサークリツプ; |
99009-12400-00 |
from US $1.56 |
||
|
25
|
25
90206-12074-00 Washer, Waveワツシヤ，ウエイブ; |
90206-12074-00 |
from US $1.70 |
||
