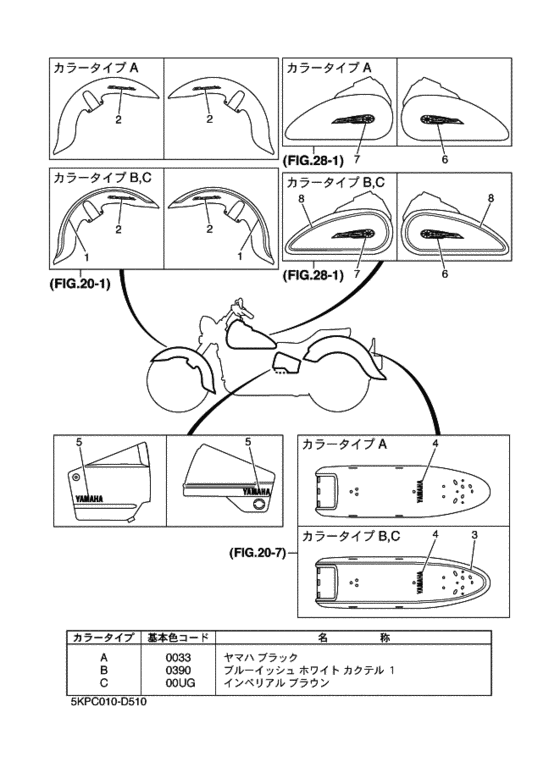

ｸﾞﾗﾌｨｯｸ & ｴﾝﾌﾞﾚﾑ 2 Diagram Yamaha XVS400 Drag Star Classic
- Year
- 2005
- Colour
- Imperial Brown (IPB; 00UG)
- Model code
- 5KPD
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- C
- Model
- XVS400C (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BN-2157A-80-00 Graphic Set, Front Fender．グラフイツクセツト，フロントフエンダ; ＵＲ |
5BN-2157A-80-00 |
US $119.47 |
||
|
2
|
2
5BN-21565-00-00 Emblem 2ＵＲ |
5BN-21565-00-00 |
from US $26.07 |
||
| replacement | |||||
|
2
|
2
5BN-21565-01-00 Emblem 2ＵＲ |
5BN-21565-01-00 |
from US $26.07 |
||
|
3
|
3
5BN-2165B-80-00 Graphic Set,rear Fender．グラフイツクセツト，リヤフエンダ; ＵＲ |
5BN-2165B-80-00 |
US $277.70 |
||
|
4
|
4
992-47000-80-00 Emblem, Yamaha．エンブレム，ヤマハ; |
992-47000-80-00 |
from US $7.79 |
||
|
5
|
5
99244-00080-00 Emblem, Yamaha |
99244-00080-00 |
from US $8.64 |
||
|
6
|
6
4VR-24161-01-00
Emblem 1
ＵＲ |
4VR-24161-01-00 |
— | ||
| replacement | |||||
|
6
|
6
4VR-24161-02-00 Emblem 1ＵＲ |
4VR-24161-02-00 |
US $61.34 |
||
|
7
|
7
4VR-24162-01-00
Emblem 2
ＵＲ |
4VR-24162-01-00 |
— | ||
| replacement | |||||
|
7
|
7
4VR-24162-02-00 Emblem 2ＵＲ |
4VR-24162-02-00 |
US $61.34 |
||
|
8
|
8
5SC-24240-40-00 Graphic Set．グラフイツクセツト; ＵＲ |
5SC-24240-40-00 |
US $208.62 |
||
