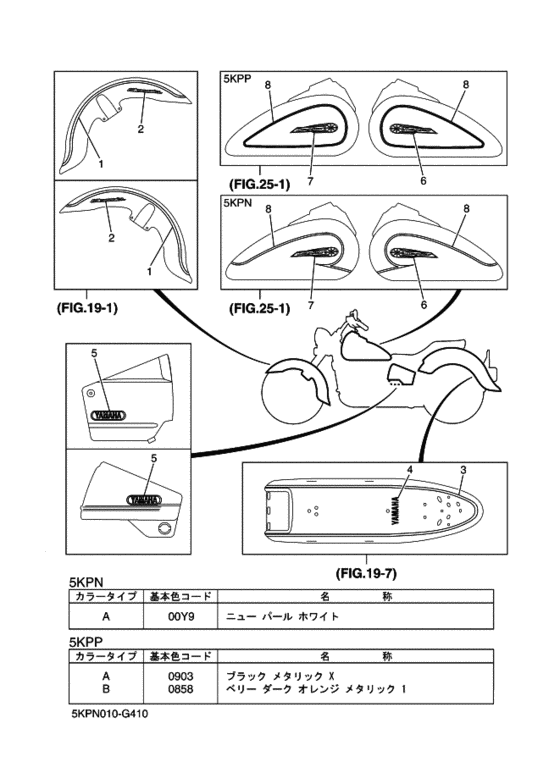

Graphic & Emblem Diagram Yamaha XVS400 Drag Star Classic
- Year
- 2008
- Colour
- Very Dark Orange Metallic 1 (VDOM1; 0858)
- Model code
- 5KPP
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Note
- ; BLACK EG
- Model
- XVS400C (Drag Star Classic)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KP-21570-50-00
Graphic Set, Front Fender
．グラフイツクセツト，フロントフエンダ; ＵＲ |
5KP-21570-50-00 |
— | ||
|
2
|
2
5BN-21565-00-00 Emblem 2．エンブレム， ２; |
5BN-21565-00-00 |
from US $26.07 |
||
| replacement | |||||
|
2
|
2
5BN-21565-01-00 Emblem 2．エンブレム， ２; |
5BN-21565-01-00 |
from US $26.07 |
||
|
3
|
3
5KP-2165A-B0-00 Graphic Set,rear Fender．グラフイツクセツト，リヤフエンダ; ＵＲ |
5KP-2165A-B0-00 |
US $117.18 |
||
|
4
|
4
992-47000-80-00 Emblem, Yamahaエンブレム，ヤマハ; |
992-47000-80-00 |
from US $7.79 |
||
|
5
|
5
3LS-21781-00-00 Emblem 1 |
3LS-21781-00-00 |
from US $25.08 |
||
|
6
|
6
4VR-24161-02-00 Emblem 1 |
4VR-24161-02-00 |
US $61.34 |
||
|
7
|
7
4VR-24162-02-00 Emblem 2 |
4VR-24162-02-00 |
US $61.34 |
||
|
8
|
8
5KP-24240-B0-00 Graphic Set．グラフイツクセツト; ＵＲ |
5KP-24240-B0-00 |
US $298.43 |
||
