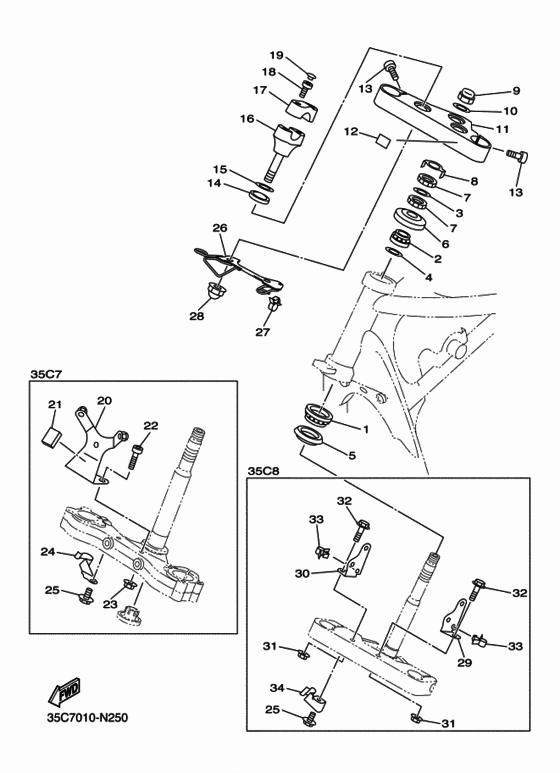

Steering Diagram Yamaha XVS400 Drag Star
- Year
- 2014
- Colour
- ｾﾗﾐﾂｸ ｱｲﾎﾞﾘ-
- Model code
- 35C8
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XVS400 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.20 |
||
|
2
|
2
93399-99931-00 Bearing |
93399-99931-00 |
from US $33.15 |
||
|
3
|
3
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $1.84 |
||
|
4
|
4
90202-24190-00 Washer, Plate |
90202-24190-00 |
from US $1.70 |
||
|
5
|
5
3FV-23462-00-00 Seal, Steering |
3FV-23462-00-00 |
from US $17.14 |
||
|
6
|
6
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
7
|
7
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
8
|
8
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $6.94 |
||
|
9
|
9
901-76220-02-00 Nut, Crown |
901-76220-02-00 |
from US $18.84 |
||
|
10
|
10
90201-220T0-00 Washer, Plate |
90201-220T0-00 |
from US $3.71 |
||
| replacement | |||||
|
10
|
10
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.39 |
||
|
11
|
11
4VR-W2341-40-00 Crown, Handle |
4VR-W2341-40-00 |
from US $249.26 |
||
|
12
|
12
2AL-84553-00-00 Damper |
2AL-84553-00-00 |
from US $5.38 |
||
|
13
|
13
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
14
|
14
3DM-23445-00-00 Damper |
3DM-23445-00-00 |
from US $4.53 |
||
|
15
|
15
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
16
|
16
4VR-23442-11-00 Holder, Handle Lower |
4VR-23442-11-00 |
from US $93.67 |
||
|
17
|
17
4VR-23441-10-00 Holder, Handle Upper |
4VR-23441-10-00 |
from US $54.30 |
||
|
18
|
18
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
19
|
19
90338-08163-00 Plug (Crome) |
90338-08163-00 |
from US $2 |
||
|
25
|
25
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $0.90 |
||
|
26
|
26
35C-23389-00-00 Guide, Cable |
35C-23389-00-00 |
US $46.70 |
||
|
27
|
27
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.28 |
||
|
28
|
28
90176-12052-00 Nut, Crown |
90176-12052-00 |
from US $8.22 |
||
|
29
|
29
4TR-23175-01-00 Bracket, Headlight Stay 1 |
4TR-23175-01-00 |
from US $8.08 |
||
|
30
|
30
4TR-23176-01-00 Bracket, Headlight Stay 2 |
4TR-23176-01-00 |
from US $8.08 |
||
|
31
|
31
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
32
|
32
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.34 |
||
|
33
|
33
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.70 |
||
|
34
|
34
4TR-25886-00-00 Holder, Brake Hose |
4TR-25886-00-00 |
from US $15.07 |
||
