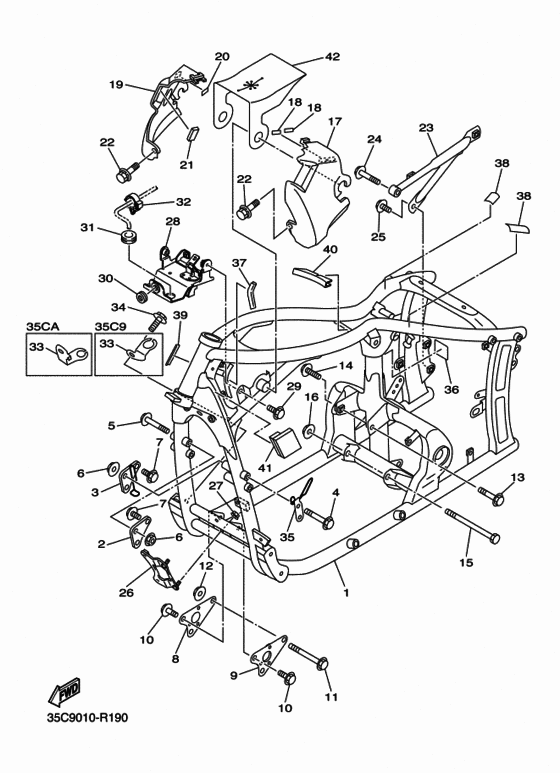

Frame Diagram Yamaha XVS400 Drag Star
- Year
- 2016
- Colour
- ﾏﾂﾄ ｸﾞﾚ- ﾒﾀﾘﾂｸ 3
- Model code
- 35CA
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XVS400 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35C-21110-00-00 Frame Comp |
35C-21110-00-00 |
US $2,785.20 |
||
|
2
|
2
4VR-21315-00-00 Stay, Engine 1 |
4VR-21315-00-00 |
from US $11.76 |
||
|
3
|
3
35C-21316-00-00 Stay, Engine 2 |
35C-21316-00-00 |
US $25.93 |
||
|
4
|
4
90105-082A4-00 Bolt, Flange |
90105-082A4-00 |
from US $4.25 |
||
|
5
|
5
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.10 |
||
|
6
|
6
90179-08684-00 Nut |
90179-08684-00 |
from US $1.84 |
||
|
7
|
7
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
8
|
8
35C-21318-00-00 Stay, Engine 4 |
35C-21318-00-00 |
US $12.75 |
||
|
9
|
9
35C-21317-00-00 Stay, Engine 3 |
35C-21317-00-00 |
US $15.87 |
||
|
10
|
10
90105-08307-00 Bolt, Flange |
90105-08307-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
95814-08020-00 Bolt, Flange(4Hm) |
95814-08020-00 |
from US $1.56 |
||
|
11
|
11
901-05103-82-00 Bolt, Flange |
901-05103-82-00 |
US $6.23 |
||
|
12
|
12
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
13
|
13
901-05102-53-00 Bolt, Flange |
901-05102-53-00 |
from US $5.81 |
||
| replacement | |||||
|
13
|
13
90105-10788-00 Bolt, Flange |
90105-10788-00 |
from US $5.81 |
||
|
14
|
14
901-05102-32-00
Bolt, Flange
|
901-05102-32-00 |
— | ||
| replacements | |||||
|
14
|
14
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.83 |
||
|
14
|
14
90105-10169-00 Bolt, Flange |
90105-10169-00 |
from US $5.67 |
||
|
15
|
15
90101-12694-00 Bolt |
90101-12694-00 |
from US $20.12 |
||
|
16
|
16
90179-12004-00 Nut |
90179-12004-00 |
from US $2.32 |
||
|
17
|
17
4TR-2171E-01-00 Cover, Side 5 |
4TR-2171E-01-00 |
from US $25.58 |
||
|
18
|
18
3BN-21747-00-00 Damper |
3BN-21747-00-00 |
from US $1.96 |
||
| replacement | |||||
|
18
|
18
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
19
|
19
4TR-2171X-40-00 Cover, Side 6 |
4TR-2171X-40-00 |
from US $46.28 |
||
|
20
|
20
3BN-21747-00-00 Damper |
3BN-21747-00-00 |
from US $1.96 |
||
| replacement | |||||
|
20
|
20
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
21
|
21
4SV-28372-00-00 Damper |
4SV-28372-00-00 |
from US $1.84 |
||
|
22
|
22
90119-06236-00 Bolt, With Washer |
90119-06236-00 |
from US $1.84 |
||
|
23
|
23
4TR-21460-20-00 Stay, Muffler |
4TR-21460-20-00 |
from US $52.64 |
||
|
24
|
24
95817-08045-00 Bolt, Flange(Jn5) |
95817-08045-00 |
from US $1.07 |
||
|
25
|
25
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
26
|
26
35C-28356-00-00 Stay 1 |
35C-28356-00-00 |
US $16.43 |
||
|
27
|
27
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
27
|
27
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
28
|
28
35C-21359-00-00 Bracket, Coil |
35C-21359-00-00 |
US $69.91 |
||
|
29
|
29
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
29
|
29
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
29
|
29
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
30
|
30
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
31
|
31
90480-18435-00 Grommet |
90480-18435-00 |
from US $2.69 |
||
|
32
|
32
90464-16006-00 Clamp |
90464-16006-00 |
from US $1.70 |
||
|
33
|
33
5KP-2144G-00-00 Stay, Stop Switch |
5KP-2144G-00-00 |
from US $9.07 |
||
|
34
|
34
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
34
|
34
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
35
|
35
35C-21161-00-00 Holder, Cable |
35C-21161-00-00 |
US $20.40 |
||
|
36
|
36
3FY-21575-01-00 Seal 1 |
3FY-21575-01-00 |
from US $8.08 |
||
|
37
|
37
35C-2214F-00-00 Damper 1 |
35C-2214F-00-00 |
from US $0.79 |
||
|
39
|
39
3HA-24141-00-00 Protector, Fuel Tank |
3HA-24141-00-00 |
from US $4.96 |
||
|
40
|
40
35C-2139X-00-00 Damper |
35C-2139X-00-00 |
US $17.99 |
||
|
41
|
41
35C-2113B-00-00 Damper |
35C-2113B-00-00 |
US $3.68 |
||
|
42
|
42
35C-2177F-00-00 Cover |
35C-2177F-00-00 |
US $21.68 |
||
