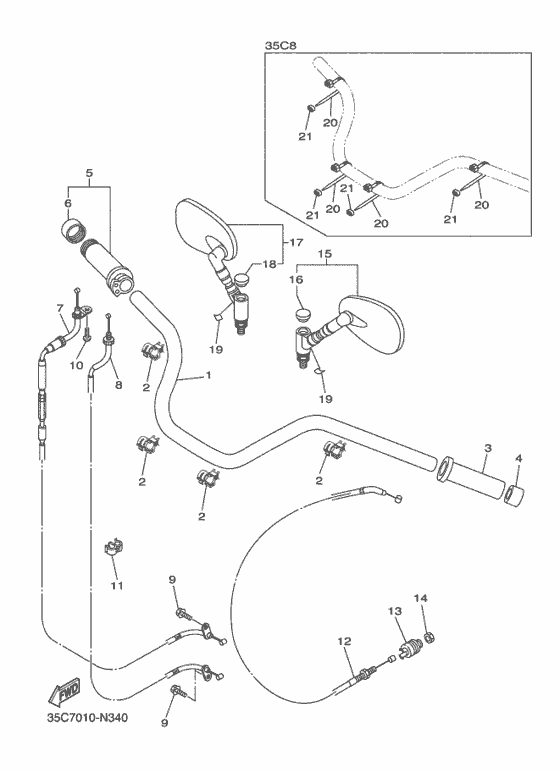

Steering handle & cable Diagram Yamaha XVS400 Drag Star Classic
- Year
- 2014
- Colour
- ﾍﾞﾘ- ﾀﾞ-ｸ ﾚﾂﾄﾞ ﾒﾀﾘﾂｸ 2
- Model code
- 35C7
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- XVS400C (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BN-26111-11-00 Handlebar |
5BN-26111-11-00 |
from US $230.73 |
||
|
2
|
2
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.70 |
||
|
3
|
3
4NK-26241-00-00 Grip(Left) |
4NK-26241-00-00 |
from US $35.37 |
||
| replacement | |||||
|
3
|
3
4NK-26241-01-00 |
4NK-26241-01-00 |
from US $39.42 |
||
|
4
|
4
4NK-2628J-00-00 Grip Cap |
4NK-2628J-00-00 |
from US $12.33 |
||
|
5
|
5
4NK-26240-00-00 Grip Assy |
4NK-26240-00-00 |
from US $41.17 |
||
|
6
|
6
4NK-2635J-00-00 Cap 2 |
4NK-2635J-00-00 |
from US $14.88 |
||
|
7
|
7
35C-26311-00-00 Cable, Throttle 1 |
35C-26311-00-00 |
US $49.74 |
||
|
8
|
8
35C-26312-00-00 Cable, Throttle 2 |
35C-26312-00-00 |
US $35.92 |
||
|
9
|
9
95802-06008-00 Bolt, Flange |
95802-06008-00 |
from US $1.56 |
||
| replacements | |||||
|
9
|
9
95817-06008-00 Bolt, Flange |
95817-06008-00 |
from US $1.56 |
||
|
9
|
9
95812-06008-00 Bolt, Flange |
95812-06008-00 |
from US $1.56 |
||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
5BN-26335-02-00 Cable, clutch |
5BN-26335-02-00 |
from US $35.65 |
||
|
13
|
13
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
14
|
14
953-04087-00-00 Nut(3Bm) |
953-04087-00-00 |
US $1.42 |
||
| replacement | |||||
|
14
|
14
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
15
|
15
5EL-26280-10-00 Rear View Mirror Assy (Left) |
5EL-26280-10-00 |
US $83.45 |
||
|
16
|
16
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.53 |
||
|
17
|
17
5EL-26290-10-00 Rear View Mirror Assy (Right) |
5EL-26290-10-00 |
US $83.45 |
||
|
18
|
18
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.53 |
||
