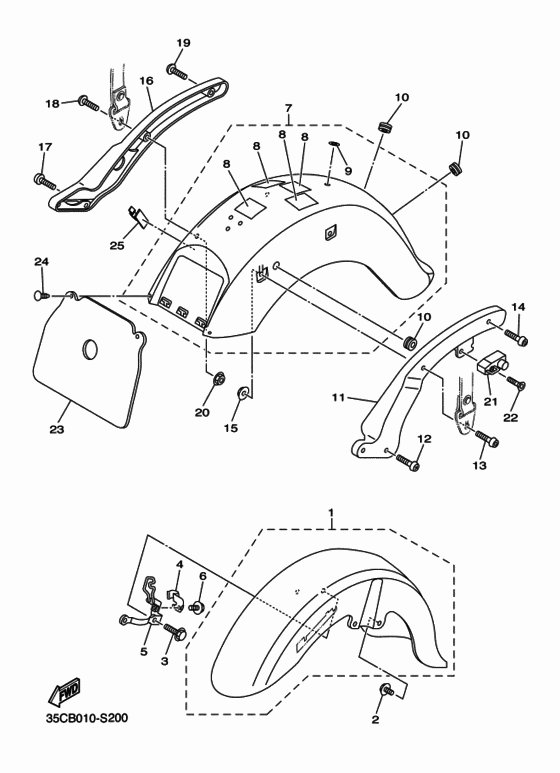

Fender Diagram Yamaha XVS400 Drag Star Classic
- Year
- 2017
- Colour
- ﾌﾞﾙ-ｲﾂｼﾕ ﾎﾜｲﾄ ﾊﾟ-ﾙ 1
- Model code
- 35CD
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XVS400C (Drag Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BN-Y2151-32-P6 Front Fender AssyBWP1 |
5BN-Y2151-32-P6 |
US $927.96 |
||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
95814-08020-00 Bolt, Flange(4Hm) |
95814-08020-00 |
from US $1.56 |
||
|
4
|
4
5BN-21598-00-00 Holder, Wire 2 |
5BN-21598-00-00 |
from US $10.91 |
||
|
5
|
5
5BN-21587-01-00 Stay 1 |
5BN-21587-01-00 |
from US $30.04 |
||
|
6
|
6
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
6
|
6
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
7
|
7
5BN-W216R-21-PB Rear Fender AssyBWP1 |
5BN-W216R-21-PB |
US $986.04 |
||
|
8
|
8
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $7.93 |
||
|
9
|
9
4NK-21735-00-00 Seal 2 |
4NK-21735-00-00 |
from US $1.84 |
||
|
10
|
10
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
11
|
11
5BN-21613-10-00 Stay, Fender 1 |
5BN-21613-10-00 |
from US $313.62 |
||
|
12
|
12
90157-10043-00 Screw, Pan Head |
90157-10043-00 |
from US $4.96 |
||
|
13
|
13
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
14
|
14
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $3.68 |
||
|
15
|
15
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
16
|
16
5BN-21614-10-00 Stay, Fender 2 |
5BN-21614-10-00 |
from US $313.62 |
||
|
17
|
17
90157-10043-00 Screw, Pan Head |
90157-10043-00 |
from US $4.96 |
||
|
18
|
18
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
19
|
19
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $3.68 |
||
|
20
|
20
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
21
|
21
4R8-21308-01-00 Helmet Hanger Assy |
4R8-21308-01-00 |
from US $46.70 |
||
|
22
|
22
90151-06067-00 Screw, Countersunk |
90151-06067-00 |
from US $2.69 |
||
| replacement | |||||
|
22
|
22
901-51060-68-00 Screw, Countersunk |
901-51060-68-00 |
from US $2.05 |
||
|
23
|
23
4TR-21629-00-00 Guard, Mud |
4TR-21629-00-00 |
from US $21.04 |
||
|
24
|
24
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
25
|
25
904-64080-06-00 Clamp |
904-64080-06-00 |
US $2.27 |
||
