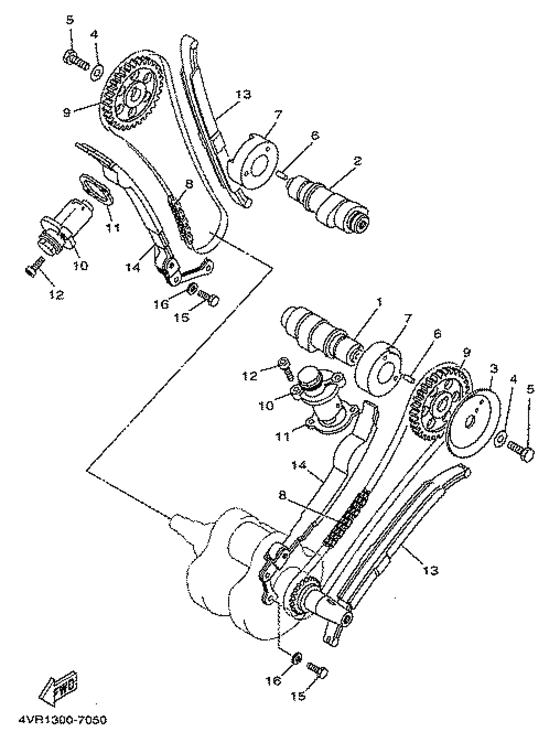

Arbol de leu. cadena Diagram Yamaha XVS650 Drag Star
- Year
- 1998
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4XR3
- Sales region
- Spain (020)
- Базовая модель
- XVS650
- Engine Capacity
- 650
- Model
- XVS650 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4VR-12171-00-00 Camshaft 1 |
4VR-12171-00-00 |
from US $151.98 |
||
|
02
|
02
4VR-12181-00-00 Camshaft 2 |
4VR-12181-00-00 |
from US $151.98 |
||
|
03
|
03
22U-11145-00-00 Plate, Breather 2 |
22U-11145-00-00 |
from US $8.78 |
||
|
04
|
04
90201-10591-00 Washer, Plate |
90201-10591-00 |
from US $1.35 |
||
| replacement | |||||
|
04
|
04
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
05
|
05
90101-10303-00 Bolt |
90101-10303-00 |
from US $3.40 |
||
|
06
|
06
93605-10108-00 Pin, Dowel |
93605-10108-00 |
from US $0.99 |
||
|
07
|
07
90380-28131-00 Bush, Solid |
90380-28131-00 |
from US $20.12 |
||
|
08
|
08
94591-41118-00 Chain |
94591-41118-00 |
from US $47.11 |
||
|
09
|
09
22U-12176-01-00 Sprocket, Cam Chain |
22U-12176-01-00 |
from US $62.03 |
||
|
10
|
10
11H-12210-02-00 Tensioner Assy, Cam Chain |
11H-12210-02-00 |
from US $124.90 |
||
|
11
|
11
3BT-12213-00-00 Gasket, Tensioner Case |
3BT-12213-00-00 |
from US $5.24 |
||
|
12
|
12
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
|
13
|
13
4VR-12231-00-00 Guide, Stopper 1 |
4VR-12231-00-00 |
from US $41.45 |
||
|
14
|
14
22U-12241-00-00 Guide, Stopper 2 |
22U-12241-00-00 |
from US $50.24 |
||
|
15
|
15
970-27060-16-00
Bolt
|
970-27060-16-00 |
— | ||
| replacement | |||||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
