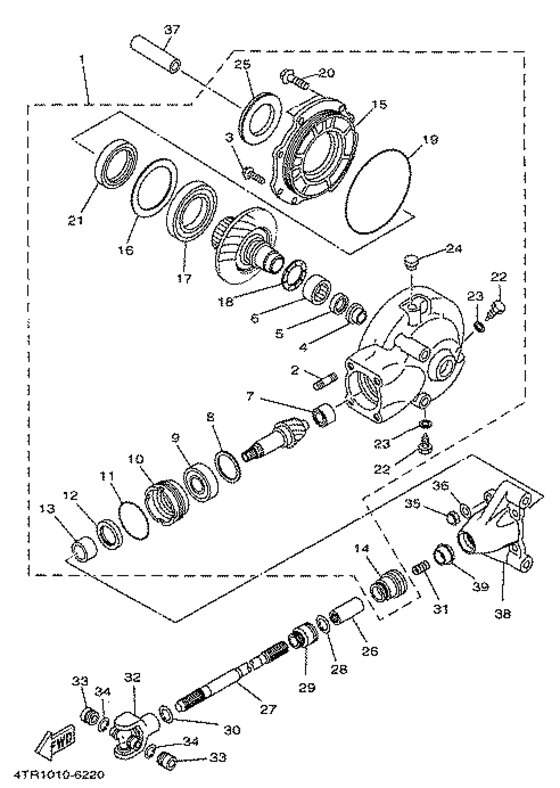

Eje de tracci Diagram Yamaha XVS650 Drag Star
- Year
- 1998
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4XR3
- Sales region
- Spain (020)
- Базовая модель
- XVS650
- Engine Capacity
- 650
- Model
- XVS650 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4TR-46101-00-00 Shaft Drive Sub Assy |
4TR-46101-00-00 |
US $1,713.83 |
||
| replacements | |||||
|
01
|
01
5FB-Y4617-00-00 Shaft Drive Sub AssyShaft drive assy |
5FB-Y4617-00-00 |
from US $1,119.36 |
||
|
01
|
01
5FB-W4617-00-00 Shaft Drive Sub Assy |
5FB-W4617-00-00 |
US $1,960.45 |
||
|
02
|
02
90116-10593-00 Bolt, Stud(59V) |
90116-10593-00 |
from US $5.95 |
||
| replacement | |||||
|
02
|
02
90116-10361-00 Bolt, Stud |
90116-10361-00 |
from US $2 |
||
|
03
|
03
90119-08126-00 Bolt, With Washer(2Gv) |
90119-08126-00 |
from US $2.41 |
||
| replacements | |||||
|
03
|
03
97527-08525-00 Bolt, With Washer(72H) |
97527-08525-00 |
from US $2.41 |
||
|
03
|
03
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
04
|
04
22U-46153-00-00 Collar, Guide |
22U-46153-00-00 |
from US $18.42 |
||
|
05
|
05
93101-30084-00 Oil Seal |
93101-30084-00 |
from US $9.35 |
||
|
06
|
06
93311-43729-00 Bearing |
93311-43729-00 |
from US $63.69 |
||
|
07
|
07
2H7-46102-00-00 Bearing Assy |
2H7-46102-00-00 |
from US $28.76 |
||
|
08
|
08
1J7-17537-Y0-30 Shim, Thrust (0.30T)Ur |
1J7-17537-Y0-30 |
from US $4.39 |
||
|
08
|
08
1J7-17537-Y0-40 Shim, Thrust (0.40T)Ur |
1J7-17537-Y0-40 |
from US $4.39 |
||
|
08
|
08
1J7-17537-Y0-50 Shim, Thrust (0.50T)Ur |
1J7-17537-Y0-50 |
from US $4.39 |
||
|
09
|
09
93306-30539-00 Bearing |
93306-30539-00 |
from US $83.45 |
||
| replacement | |||||
|
09
|
09
933-06305-33-00 Bearing |
933-06305-33-00 |
from US $83.45 |
||
|
10
|
10
4H7-46125-00-00 Retainer, Bearing |
4H7-46125-00-00 |
from US $43.52 |
||
|
11
|
11
93210-60426-00 O-Ring |
93210-60426-00 |
from US $6.09 |
||
|
12
|
12
93101-38098-00 Oil Seal |
93101-38098-00 |
from US $7.94 |
||
|
13
|
13
90387-256G9-00 Collar |
90387-256G9-00 |
US $21.92 |
||
|
14
|
14
22U-46136-00-00
Seal 1
|
22U-46136-00-00 |
— | ||
|
15
|
15
22U-46152-00-00 Housing, Bearing |
22U-46152-00-00 |
from US $73.89 |
||
|
16
|
16
22U-46117-00-25 Shim, Ring Gear (0.25T)Ur |
22U-46117-00-25 |
from US $4.25 |
||
|
16
|
16
22U-46117-00-30 Shim, Ring Gear (0.30T)Ur |
22U-46117-00-30 |
from US $4.25 |
||
|
16
|
16
22U-46117-00-40 Shim, Ring Gear (0.40T)Ur |
22U-46117-00-40 |
from US $4.25 |
||
|
17
|
17
93316-01301-00 Bearing |
93316-01301-00 |
from US $74.05 |
||
|
18
|
18
22U-46118-00-20 Shim, Thrust (2.0T)Ur |
22U-46118-00-20 |
from US $7.79 |
||
|
18
|
18
22U-46118-00-12 Shim, Thrust (1.2T)Ur |
22U-46118-00-12 |
from US $7.79 |
||
|
18
|
18
22U-46118-00-14 Shim, Thrust (1.4T)Ur |
22U-46118-00-14 |
from US $7.79 |
||
|
18
|
18
22U-46118-00-16 Shim, Thrust (1.6T)Ur |
22U-46118-00-16 |
from US $7.79 |
||
|
18
|
18
22U-46118-00-18 Shim, Thrust (1.8T)Ur |
22U-46118-00-18 |
from US $7.79 |
||
|
19
|
19
93211-39569-00 O-Ring |
93211-39569-00 |
from US $9.35 |
||
|
20
|
20
90105-10285-00 Bolt, Flange |
90105-10285-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
21
|
21
93102-65277-00 Oil Seal |
93102-65277-00 |
from US $12.33 |
||
|
22
|
22
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
23
|
23
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
24
|
24
56W-17590-00-00 Breather Comp |
56W-17590-00-00 |
from US $15.44 |
||
|
25
|
25
1J7-25319-02-00 Seal, Hub Dust |
1J7-25319-02-00 |
from US $9.92 |
||
|
26
|
26
22U-46123-00-00 Coupling, Gear |
22U-46123-00-00 |
from US $24.94 |
||
|
27
|
27
5BN-46171-00-00
Shaft Drive Assy
|
5BN-46171-00-00 |
— | ||
|
28
|
28
99009-18400-00 Circlip |
99009-18400-00 |
from US $1.56 |
||
|
29
|
29
22U-46137-00-00
Seal 2
|
22U-46137-00-00 |
— | ||
|
30
|
30
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
31
|
31
90501-15722-00 Spring, Compression |
90501-15722-00 |
from US $1.84 |
||
|
32
|
32
4X7-46180-00-00 Cross Joint Comp |
4X7-46180-00-00 |
from US $201.71 |
||
|
33
|
33
93311-21044-00 Bearing |
93311-21044-00 |
from US $20.12 |
||
| replacement | |||||
|
33
|
33
93399-99926-00 Bearing(2Hr) |
93399-99926-00 |
from US $20.12 |
||
|
34
|
34
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.66 |
||
|
35
|
35
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.39 |
||
|
36
|
36
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
37
|
37
90387-1510D-00 Collar |
90387-1510D-00 |
from US $9.78 |
||
|
38
|
38
4TR-46154-00-00 Cover, Housing |
4TR-46154-00-00 |
from US $142.30 |
||
|
39
|
39
4TR-46297-00-00
Cover, Dust
|
4TR-46297-00-00 |
— | ||
| replacement | |||||
|
39
|
39
35C-46297-00-00 Cover, Dust |
35C-46297-00-00 |
from US $9.92 |
||
