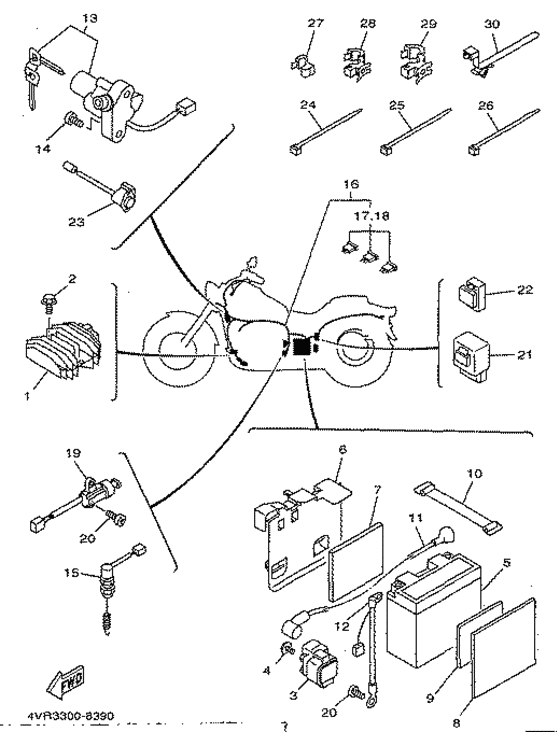

Electrical 1 Diagram Yamaha XVS650 Drag Star
- Year
- 1998
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4XR3
- Sales region
- Spain (020)
- Базовая модель
- XVS650
- Engine Capacity
- 650
- Model
- XVS650 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BN-81960-00-00 Rectifier & Regulator Assy |
5BN-81960-00-00 |
from US $132.50 |
||
|
02
|
02
95804-06020-00 Bolt, Flange |
95804-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
95814-06020-00 Bolt, Flange |
95814-06020-00 |
from US $1.34 |
||
|
03
|
03
4BH-81940-00-00 Starter Relay Assy (Rc19-005) |
4BH-81940-00-00 |
from US $97.40 |
||
| replacement | |||||
|
03
|
03
4BH-81940-02-00 Starter Relay Assy (Rc19-005) |
4BH-81940-02-00 |
from US $97.40 |
||
|
04
|
04
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
05
|
05
4TX-82100-01-00
Gt12B4 Gs Battery -
|
4TX-82100-01-00 |
— | ||
| replacements | |||||
|
05
|
05
GT1-2B400-00-00
Battery
|
GT1-2B400-00-00 |
— | ||
|
05
|
05
YT1-2BBS0-00-00
Bat Yt12B-Bs (Pt12B-4) Yu
|
YT1-2BBS0-00-00 |
— | ||
|
06
|
06
5BN-82129-00-00 Cover, Battery |
5BN-82129-00-00 |
from US $35.28 |
||
|
07
|
07
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $2.32 |
||
|
08
|
08
4VR-2176E-00-00 Plate |
4VR-2176E-00-00 |
from US $15.30 |
||
|
09
|
09
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $2.32 |
||
|
10
|
10
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
11
|
11
5BN-82115-00-00 Wire, Plus Lead |
5BN-82115-00-00 |
from US $31.03 |
||
|
12
|
12
5BN-82116-00-00 Wire, Minus Lead |
5BN-82116-00-00 |
from US $20.69 |
||
|
13
|
13
4VR-82501-00-00 Main Switch Steeri |
4VR-82501-00-00 |
from US $210 |
||
| replacement | |||||
|
13
|
13
4VR-82501-01-00 Main Switch Steering Lock |
4VR-82501-01-00 |
from US $210 |
||
|
14
|
14
92017-08020-00 Bolt, Button |
92017-08020-00 |
from US $1.07 |
||
|
15
|
15
3HN-82530-11-00
Stop Switch Assy
|
3HN-82530-11-00 |
— | ||
| replacements | |||||
|
15
|
15
3HN-82530-13-00 Stop Switch Assy |
3HN-82530-13-00 |
from US $32.02 |
||
|
15
|
15
3HN-82530-14-00 Stop Switch Assy |
3HN-82530-14-00 |
US $82.06 |
||
|
16
|
16
4VR-82590-10-00
Wire Harness Assy
|
4VR-82590-10-00 |
— | ||
| replacement | |||||
|
16
|
16
4VR-82590-11-00
Wire Harness Assy
|
4VR-82590-11-00 |
— | ||
|
17
|
17
36Y-82151-00-00 Fuse (15A-Blue) |
36Y-82151-00-00 |
from US $2.98 |
||
|
18
|
18
42X-82151-00-00 Fuse (10A-Bl) |
42X-82151-00-00 |
from US $1.56 |
||
|
19
|
19
3LD-82566-80-00 Switch, Side Stand |
3LD-82566-80-00 |
from US $64.87 |
||
| replacements | |||||
|
19
|
19
3LD-82566-B0-00 Switch, Side Stand |
3LD-82566-B0-00 |
from US $51.19 |
||
|
19
|
19
3LD-82566-B1-00 Switch, Side Stand |
3LD-82566-B1-00 |
US $57.96 |
||
|
20
|
20
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
20
|
20
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
21
|
21
3EN-81950-00-00 Relay Assy (3En-00) |
3EN-81950-00-00 |
from US $124.67 |
||
| replacements | |||||
|
21
|
21
3EN-81950-01-00 Relay Assy |
3EN-81950-01-00 |
from US $83.03 |
||
|
21
|
21
3EN-81950-02-00 Relay Assy |
3EN-81950-02-00 |
from US $77.56 |
||
|
22
|
22
1UY-81950-92-00 Relay Assy (1Uy-92) |
1UY-81950-92-00 |
from US $34.85 |
||
|
23
|
23
4TR-82560-00-00 Thermo Switch Assy |
4TR-82560-00-00 |
US $68.53 |
||
|
24
|
24
1UA-82591-00-00 BandManubrio |
1UA-82591-00-00 |
from US $1.28 |
||
|
25
|
25
1UA-82591-00-00 BandCuadro |
1UA-82591-00-00 |
from US $1.28 |
||
|
26
|
26
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
27
|
27
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.70 |
||
|
28
|
28
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.70 |
||
|
29
|
29
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.70 |
||
|
30
|
30
90464-20213-00 Clamp |
90464-20213-00 |
from US $1.70 |
||
