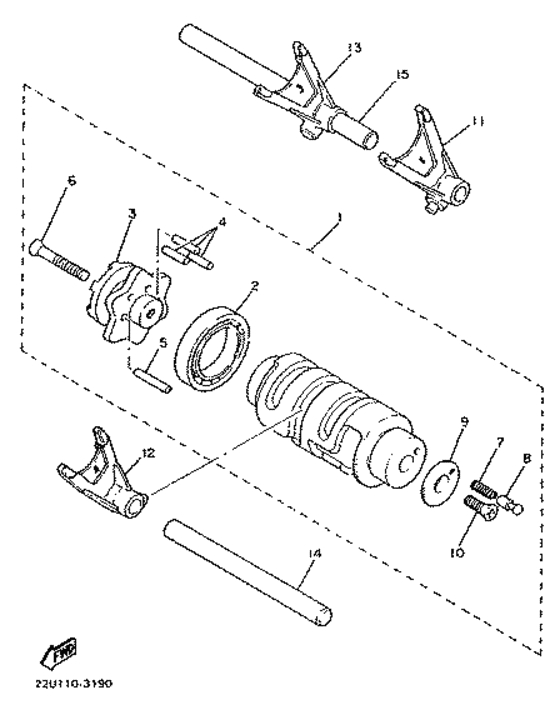

Leva de cambio . horq Diagram Yamaha XVS650 Drag Star
- Year
- 1998
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4XR3
- Sales region
- Spain (020)
- Базовая модель
- XVS650
- Engine Capacity
- 650
- Model
- XVS650 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4TR-18540-01-00 Shift Cam Assy |
4TR-18540-01-00 |
from US $174.08 |
||
| replacement | |||||
|
01
|
01
4TR-18540-02-00 Shift Cam Assy |
4TR-18540-02-00 |
from US $174.08 |
||
|
02
|
02
93306-90602-00 Bearing |
93306-90602-00 |
from US $34.85 |
||
|
03
|
03
4H7-18185-00-00 Segment |
4H7-18185-00-00 |
US $32.59 |
||
| replacement | |||||
|
03
|
03
16G-18185-00-00
Segment
|
16G-18185-00-00 |
— | ||
|
04
|
04
93604-16092-00 Pin, Dowel |
93604-16092-00 |
from US $1.56 |
||
|
05
|
05
93604-20156-00 Pin, Dowel |
93604-20156-00 |
from US $1.56 |
||
|
06
|
06
98707-05035-00 Screw, Flat Head |
98707-05035-00 |
from US $1.50 |
||
|
07
|
07
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.84 |
||
|
08
|
08
4UN-18542-00-00 Point, Neutral |
4UN-18542-00-00 |
from US $1.70 |
||
|
09
|
09
4UN-18566-00-00 Plate, Side 2 |
4UN-18566-00-00 |
from US $2.41 |
||
|
10
|
10
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
11
|
11
4TR-18511-00-00 Fork, Shift 1 |
4TR-18511-00-00 |
from US $47.11 |
||
|
12
|
12
4TR-18512-00-00 Fork, Shift 2 |
4TR-18512-00-00 |
from US $47.11 |
||
|
13
|
13
4TR-18513-00-00 Fork, Shift 3 |
4TR-18513-00-00 |
from US $47.11 |
||
|
14
|
14
3YF-18531-00-00 Bar, Shift Fork Guide 1 |
3YF-18531-00-00 |
from US $9.92 |
||
|
15
|
15
4TR-18535-00-00 Bar, Shift Fork Guide 2 |
4TR-18535-00-00 |
from US $18.42 |
||
