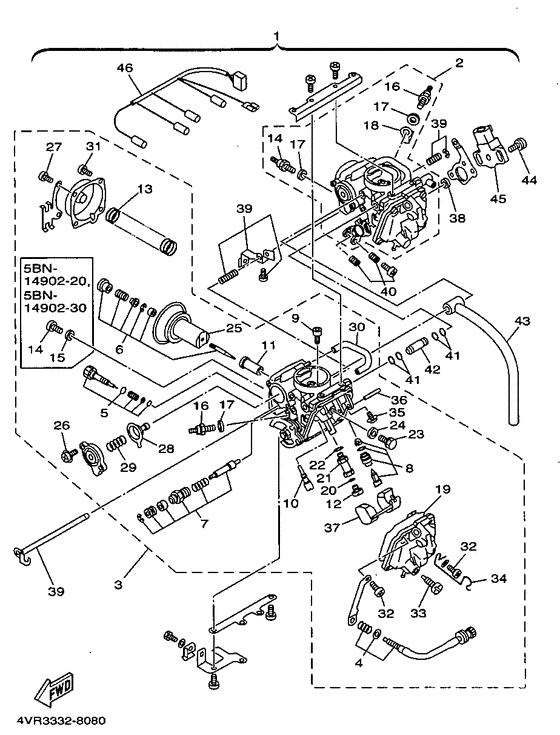

Carburetor Diagram Yamaha XVS650 Drag Star
- Year
- 1998
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4XR6
- Sales region
- Germany (010)
- Базовая модель
- XVS650
- Engine Capacity
- 650
- Model
- XVS650 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BN-14900-20-00
Carburetor Assy
|
5BN-14900-20-00 |
— | ||
|
02
|
02
5BN-14901-20-00
Carburetor Assy 1
|
5BN-14901-20-00 |
— | ||
|
03
|
03
5BN-14902-20-00
Carburetor Assy 2
|
5BN-14902-20-00 |
— | ||
|
04
|
04
4TR-14103-00-00 Throttle Screw Set |
4TR-14103-00-00 |
from US $54.57 |
||
|
05
|
05
4TR-14105-00-00 Pilot Screw Set |
4TR-14105-00-00 |
from US $25.36 |
||
|
06
|
06
4XP-1490J-00-00 Needle Set |
4XP-1490J-00-00 |
US $33.58 |
||
|
07
|
07
4DN-1410A-01-00 Starter Set |
4DN-1410A-01-00 |
from US $45.45 |
||
|
08
|
08
3CF-14107-10-00 Needle Valve Set |
3CF-14107-10-00 |
from US $40.55 |
||
|
09
|
09
1HX-14231-20-00 Jet,pilot Air (#100) |
1HX-14231-20-00 |
from US $13.46 |
||
|
10
|
10
4KM-14142-20-00 Jet, Pilot (# 20) |
4KM-14142-20-00 |
from US $11.03 |
||
|
11
|
11
3DM-14141-34-00 Nozzle, Main |
3DM-14141-34-00 |
from US $31.88 |
||
|
12
|
12
3G2-14231-18-00 Jet, Main (#90) |
3G2-14231-18-00 |
from US $13.30 |
||
|
13
|
13
4VR-14933-00-00 Spring, Diaphragm |
4VR-14933-00-00 |
from US $12.47 |
||
|
14
|
14
3DM-14216-00-00 ScrewUr (2) |
3DM-14216-00-00 |
from US $3.26 |
||
|
14
|
14
4TR-83790-00-00 Heater Assy (15W)Ur (1) |
4TR-83790-00-00 |
from US $28.34 |
||
| replacement | |||||
|
14
|
14
5FU-83790-00-00 Heater AssyUr (1) |
5FU-83790-00-00 |
US $28.34 |
||
|
15
|
15
127-14198-00-00 Gasket(2) |
127-14198-00-00 |
from US $3.12 |
||
|
16
|
16
4EB-83790-00-00 Heater Assy |
4EB-83790-00-00 |
from US $40.30 |
||
|
17
|
17
90201-085R5-00 Washer, PlateUr (2) |
90201-085R5-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90201-08016-00 Washer, PlateUr (2) |
90201-08016-00 |
from US $1.70 |
||
|
17
|
17
90207-085R5-00 Washer, FinishUr (1) |
90207-085R5-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90201-08016-00 Washer, PlateUr (1) |
90201-08016-00 |
from US $1.70 |
||
|
18
|
18
4DH-82103-00-00 Terminal 1 |
4DH-82103-00-00 |
from US $7.93 |
||
|
19
|
19
1HX-14147-00-00 O-Ring |
1HX-14147-00-00 |
from US $7.42 |
||
|
20
|
20
1AE-14227-00-00 O-Ring |
1AE-14227-00-00 |
from US $4.96 |
||
|
21
|
21
1AE-14261-00-00 Holder |
1AE-14261-00-00 |
from US $7.42 |
||
|
22
|
22
1AE-14237-00-00 Gasket |
1AE-14237-00-00 |
from US $2.13 |
||
|
23
|
23
1HX-14565-00-00 Screw |
1HX-14565-00-00 |
from US $8.36 |
||
|
24
|
24
137-14153-00-00 Washer,main Jet |
137-14153-00-00 |
from US $2.98 |
||
|
25
|
25
4XR-14940-00-00
Diaphragm Assy
|
4XR-14940-00-00 |
— | ||
|
26
|
26
1UY-14565-00-00 Screw, Pan Head |
1UY-14565-00-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
27
|
27
3KW-14486-00-00 Screw, Rod |
3KW-14486-00-00 |
from US $1.84 |
||
|
28
|
28
22V-14940-00-00 Diaphragm Assy |
22V-14940-00-00 |
from US $84.73 |
||
|
29
|
29
26H-14275-00-00 Spring |
26H-14275-00-00 |
from US $4.53 |
||
|
30
|
30
4TR-14348-00-00 Pipe 1 |
4TR-14348-00-00 |
from US $28.34 |
||
|
31
|
31
98507-04008-00 Screw, Pan HeadUr (1) |
98507-04008-00 |
from US $1.07 |
||
|
32
|
32
985-07040-14-00 Screw, Pan Head |
985-07040-14-00 |
from US $1.42 |
||
|
33
|
33
12R-14191-00-00 Plug, Drain |
12R-14191-00-00 |
from US $8.64 |
||
|
34
|
34
4TR-14937-00-00 Clip |
4TR-14937-00-00 |
from US $13.03 |
||
|
35
|
35
1FN-14565-00-00 Screw |
1FN-14565-00-00 |
from US $1.36 |
||
|
36
|
36
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
37
|
37
1HX-14985-00-00 Float |
1HX-14985-00-00 |
from US $39.38 |
||
|
38
|
38
4HM14239000
Seal
|
4HM14239000 |
— | ||
|
39
|
39
4TR-1490L-00-00 Starter Lever Set, 1 |
4TR-1490L-00-00 |
from US $66.45 |
||
|
40
|
40
3KW-1490K-00-00 Stop Screw Set |
3KW-1490K-00-00 |
from US $9.92 |
||
|
41
|
41
36Y-14147-00-00 O-Ring |
36Y-14147-00-00 |
from US $7.51 |
||
|
42
|
42
1WG-14251-00-00 Nipple |
1WG-14251-00-00 |
from US $14.73 |
||
|
43
|
43
4TR-14987-00-00 Hose |
4TR-14987-00-00 |
from US $35.14 |
||
|
44
|
44
4KM-24453-00-00 Screw |
4KM-24453-00-00 |
from US $4.68 |
||
|
45
|
45
4NK-85885-00-00 Throttle Position Sensor Assy |
4NK-85885-00-00 |
from US $234.87 |
||
|
46
|
46
5BN-81517-00-00 Wire, Sub Lead |
5BN-81517-00-00 |
US $24.82 |
||
