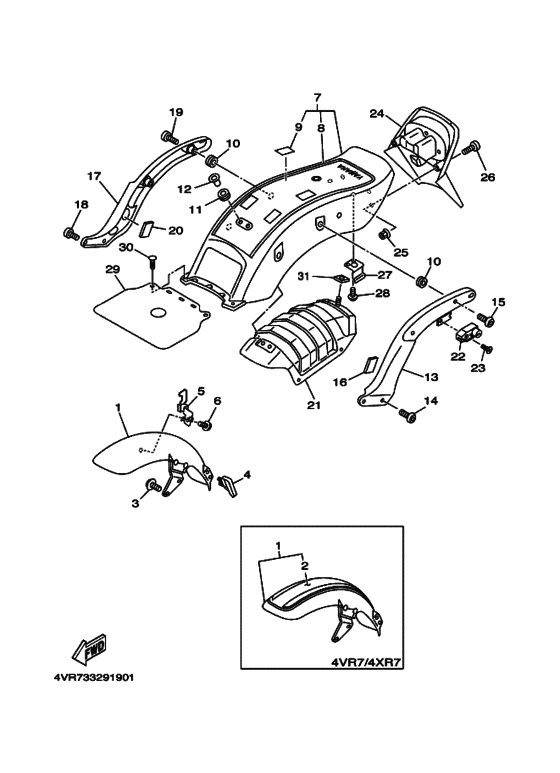

Fender Diagram Yamaha XVS650 Drag Star
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4XR7
- Sales region
- Europe (040)
- Базовая модель
- XVS650
- Engine Capacity
- 650
- Color Variant
- A
- Model
- XVS650 (Drag Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TR-21510-01-33 Front Fender CompUR YB |
4TR-21510-01-33 |
from US $149.21 |
||
| replacement | |||||
|
1
|
1
4TR-21510-02-33 Front Fender CompUR YB |
4TR-21510-02-33 |
from US $149.21 |
||
|
2
|
2
4VR-21569-00-00
Graphic 1
FOR DRM2 |
4VR-21569-00-00 |
— | ||
|
3
|
3
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.56 |
||
|
4
|
4
4VR-21518-00-00 Holder, Cable |
4VR-21518-00-00 |
from US $10.35 |
||
|
5
|
5
4TR-21598-01-00 Holder, Wire 2 |
4TR-21598-01-00 |
US $38.27 |
||
| replacement | |||||
|
5
|
5
4TR-21598-02-00 Holder, Wire 2 |
4TR-21598-02-00 |
US $38.27 |
||
|
6
|
6
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
7
|
7
4TR-W2161-B1-33
Rear Fender Comp
UR YB |
4TR-W2161-B1-33 |
— | ||
|
8
|
8
4TR-21675-B0-00 Graphic, Rear FenderUR FOR YB |
4TR-21675-B0-00 |
US $86.08 |
||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
UR FOR YB |
999-99999-99-00 |
— | ||
|
9
|
9
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
10
|
10
90480-18418-00 Grommet |
90480-18418-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
90480-18495-00 Grommet(3Ak) |
90480-18495-00 |
from US $2.83 |
||
|
11
|
11
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
11
|
11
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
12
|
12
90387-067N5-00 Collar |
90387-067N5-00 |
from US $4.68 |
||
|
13
|
13
4TR-21613-01-00 Stay, Fender 1 |
4TR-21613-01-00 |
from US $329.22 |
||
|
14
|
14
92014-10025-00 Bolt, Button Head |
92014-10025-00 |
from US $4.11 |
||
|
15
|
15
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
16
|
16
3SX-2139X-00-00 Damper |
3SX-2139X-00-00 |
from US $2.55 |
||
|
17
|
17
4TR-21614-01-00 Stay, Fender 2 |
4TR-21614-01-00 |
from US $341.26 |
||
|
18
|
18
92014-10025-00 Bolt, Button Head |
92014-10025-00 |
from US $4.11 |
||
|
19
|
19
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
20
|
20
3SX-2139X-00-00 Damper |
3SX-2139X-00-00 |
from US $2.55 |
||
|
21
|
21
4TR-21643-01-00 Stay, Rear |
4TR-21643-01-00 |
from US $149.33 |
||
|
22
|
22
4R8-21308-00-00
Helmet Hanger Assy
|
4R8-21308-00-00 |
— | ||
| replacement | |||||
|
22
|
22
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
23
|
23
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
24
|
24
4TR-2162R-01-00 Fender 2 |
4TR-2162R-01-00 |
US $73.64 |
||
|
25
|
25
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
26
|
26
90154-05011-00 Screw, Binding |
90154-05011-00 |
from US $1.70 |
||
|
27
|
27
4TR-21679-00-00 Holder, Harness |
4TR-21679-00-00 |
from US $4.12 |
||
|
28
|
28
90167-05025-00 Screw, Truss Head Tapping |
90167-05025-00 |
from US $1.28 |
||
| replacement | |||||
|
28
|
28
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
29
|
29
4TR-21629-00-00 Guard, Mud |
4TR-21629-00-00 |
from US $21.04 |
||
|
30
|
30
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
30
|
30
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.36 |
||
|
31
|
31
5FB-24737-00-00 Damper |
5FB-24737-00-00 |
from US $1.84 |
||
