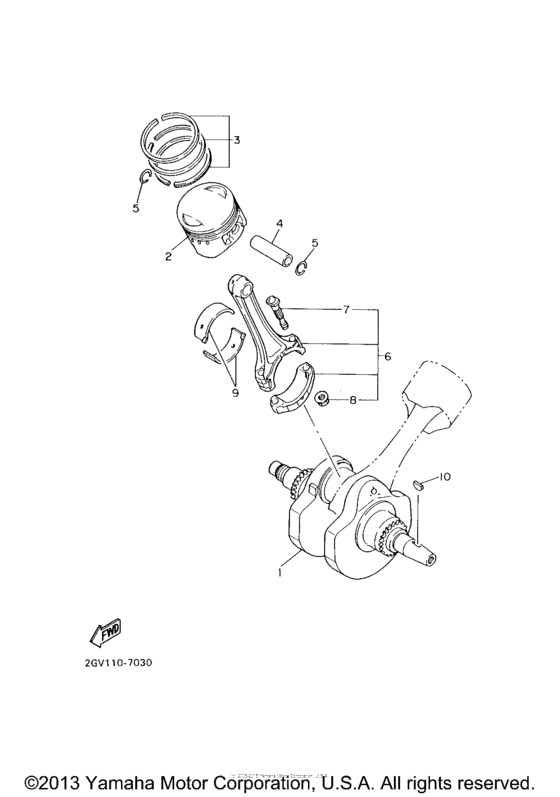

Crankshaft & Piston Diagram Yamaha XVS650 V-Star Midnight Custom
- Year
- 2007
- Model code
- 5S11
- Sales region
- USA
- Базовая модель
- XVS65WC-M
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VR-11411-00-00 Crankshaft |
4VR-11411-00-00 |
from US $776.16 |
||
|
2
|
2
4VR-11631-01-A0 Piston (Std) |
4VR-11631-01-A0 |
from US $82.62 |
||
|
2
|
2
4VR-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S AP |
4VR-11636-00-00 |
from US $83.59 |
||
| replacement | |||||
|
2
|
2
4VR-11636-01-00 Piston (0.50Mm O/s)0.50MM O/S AP |
4VR-11636-01-00 |
from US $64.39 |
||
|
2
|
2
4VR-11638-00-00 Piston (1.00Mm O/s)1.00MM O/S AP |
4VR-11638-00-00 |
from US $85.11 |
||
| replacement | |||||
|
2
|
2
4VR-11638-01-00 Piston (1.00Mm O/s)1.00MM O/S AP |
4VR-11638-01-00 |
from US $65.55 |
||
|
3
|
3
4VR-11603-00-00 Piston Ring Set (Std) |
4VR-11603-00-00 |
from US $55.54 |
||
|
3
|
3
4VR-11607-00-00 Piston Ring Set (1.00Mm O/s)1.00MM O/S AP |
4VR-11607-00-00 |
from US $44.21 |
||
|
3
|
3
4VR-11605-00-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S AP |
4VR-11605-00-00 |
from US $55.54 |
||
|
4
|
4
3LD-11633-00-00 Pin, Piston |
3LD-11633-00-00 |
from US $13.90 |
||
|
5
|
5
934-50220-27-00 Circlip |
934-50220-27-00 |
from US $1.66 |
||
|
6
|
6
4VR-11650-00-00 Connecting Rod Assy |
4VR-11650-00-00 |
from US $185.13 |
||
|
7
|
7
22U-11654-00-00 Bolt, Connecting Rod |
22U-11654-00-00 |
from US $7.51 |
||
|
8
|
8
90179-08327-00 Nut |
90179-08327-00 |
from US $1.70 |
||
|
9
|
9
3LD-11656-20-00 Plane Bearing, Connecting RodUR BROWN |
3LD-11656-20-00 |
from US $15.44 |
||
|
9
|
9
3LD-11656-00-00 Plane Bearing, Connecting RodUR BLUE |
3LD-11656-00-00 |
from US $10.26 |
||
|
9
|
9
3LD-11656-10-00 Plane Bearing, Connecting RodUR BLACK |
3LD-11656-10-00 |
from US $15.44 |
||
|
9
|
9
3LD-11656-30-00 Plane Bearing, Connecting RodUR GREEN |
3LD-11656-30-00 |
from US $15.44 |
||
|
10
|
10
902-80050-48-00
Key, Woodruff
|
902-80050-48-00 |
— | ||
| replacement | |||||
|
10
|
10
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
