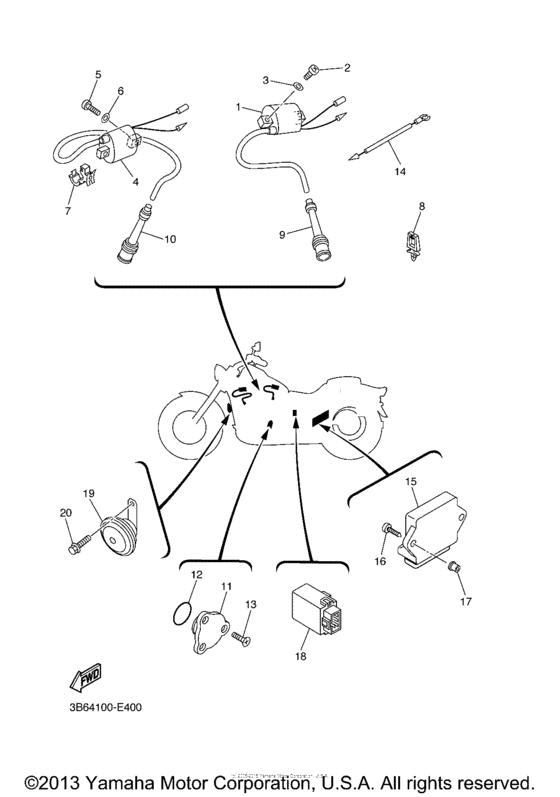

Electrical (2) Diagram Yamaha XVS650 V-Star Midnight Custom
- Year
- 2007
- Model code
- 5S11
- Sales region
- USA
- Базовая модель
- XVS65WC-M
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VR-82310-00-00 Ignition Coil Assy |
4VR-82310-00-00 |
from US $97.40 |
||
| replacement | |||||
|
1
|
1
4VR-82320-00-00 Ignition Coil Assy |
4VR-82320-00-00 |
from US $97.40 |
||
|
2
|
2
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
3
|
3
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
4
|
4
4VR-82320-00-00 Ignition Coil Assy |
4VR-82320-00-00 |
from US $97.40 |
||
|
5
|
5
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
5
|
5
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
6
|
6
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
7
|
7
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.70 |
||
|
8
|
8
90464-05141-00 Clamp |
90464-05141-00 |
from US $1.70 |
||
|
9
|
9
1FK-82370-00-00
Plug Cap Assy
|
1FK-82370-00-00 |
— | ||
| replacement | |||||
|
9
|
9
4XY-82370-00-00 Plug Cap Assy |
4XY-82370-00-00 |
from US $31.74 |
||
|
10
|
10
4TR-82370-00-00 Plug Cap Assy |
4TR-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
10
|
10
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $28.76 |
||
|
11
|
11
1L9-82540-00-00 Neutral Switch Assy |
1L9-82540-00-00 |
from US $13.56 |
||
|
12
|
12
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.56 |
||
|
13
|
13
901-49053-21-00
Screw
|
901-49053-21-00 |
— | ||
| replacement | |||||
|
13
|
13
90149-05245-00 Screw(3Hx) |
90149-05245-00 |
from US $2.69 |
||
|
14
|
14
4TR-82509-00-00 Wire, Sub Lead |
4TR-82509-00-00 |
from US $6.38 |
||
|
15
|
15
5SC-82305-30-00 Ignitor Unit Assy |
5SC-82305-30-00 |
from US $546.48 |
||
|
16
|
16
97707-60020-00 Screw, Tapping |
97707-60020-00 |
from US $0.52 |
||
|
17
|
17
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
|
18
|
18
2UJ-83350-00-00 Flasher Relay Assy |
2UJ-83350-00-00 |
from US $113.29 |
||
| replacement | |||||
|
18
|
18
2UJ-83350-01-00 Flasher Relay Assy |
2UJ-83350-01-00 |
US $158.20 |
||
|
19
|
19
5YS-83371-00-00 Horn |
5YS-83371-00-00 |
from US $45.73 |
||
|
20
|
20
90105-082A5-00 Bolt, Flange |
90105-082A5-00 |
from US $1.70 |
||
