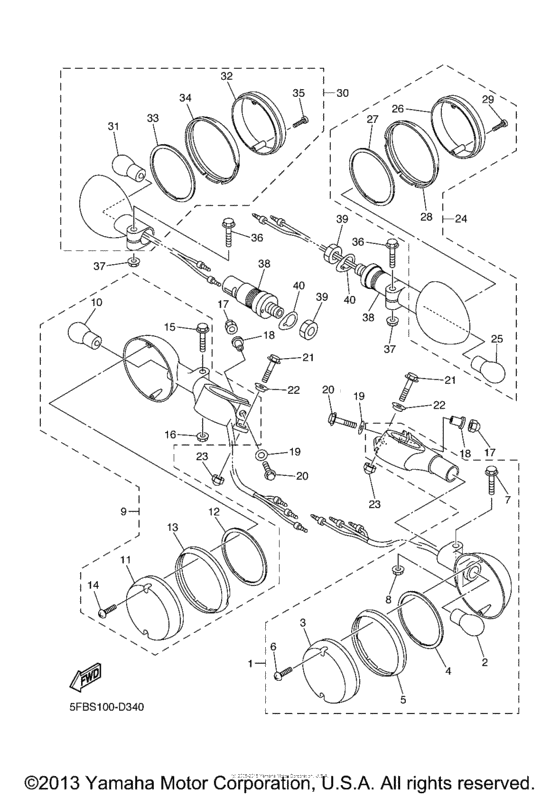

Flasher light Diagram Yamaha XVS650 V-Star Midnight Custom
- Year
- 2007
- Model code
- 5S11
- Sales region
- USA
- Базовая модель
- XVS65WC-M
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PB-83310-10-00 Front Flasher Light Assy 1 |
5PB-83310-10-00 |
from US $140.92 |
||
|
2
|
2
5VN-83311-00-00 Bulb, Flasher (12V-23/8W)12V-23/8W |
5VN-83311-00-00 |
from US $10.34 |
||
|
3
|
3
5VN-83312-10-00 Lens, Flasher |
5VN-83312-10-00 |
from US $12.18 |
||
|
4
|
4
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
5
|
5
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
6
|
6
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
7
|
7
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
8
|
8
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
9
|
9
5PB-83320-10-00 Front Flasher Light Assy 2 |
5PB-83320-10-00 |
from US $118.42 |
||
|
10
|
10
5VN-83311-00-00 Bulb, Flasher (12V-23/8W)12V-23/8W |
5VN-83311-00-00 |
from US $10.34 |
||
|
11
|
11
5VN-83312-20-00 Lens, Flasher |
5VN-83312-20-00 |
from US $12.18 |
||
|
12
|
12
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
13
|
13
1D6-83363-10-00 Lens, Rim |
1D6-83363-10-00 |
from US $18.70 |
||
|
14
|
14
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
15
|
15
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
16
|
16
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
17
|
17
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
18
|
18
90387-06076-00 Collar |
90387-06076-00 |
from US $3.12 |
||
|
19
|
19
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
20
|
20
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
20
|
20
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
20
|
20
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
21
|
21
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
22
|
22
90560-06244-00 Spacer |
90560-06244-00 |
from US $1.84 |
||
|
23
|
23
95304-06800-00 Nut |
95304-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
24
|
24
1D6-83330-00-00 Rear Flasher Light Assy 1 |
1D6-83330-00-00 |
from US $99.75 |
||
| replacement | |||||
|
24
|
24
1D6-83330-01-00 Rear Flasher Light Assy 1 |
1D6-83330-01-00 |
from US $99.75 |
||
|
25
|
25
5VN-83311-10-00 Bulb, Flasher (12V-21W)12V-21W |
5VN-83311-10-00 |
from US $10.20 |
||
| replacements | |||||
|
25
|
25
5VN-83331-00-00 Bulb, Flasher (12V-21W)12V-21W |
5VN-83331-00-00 |
from US $10.20 |
||
|
25
|
25
59C-83311-00-00 Bulb, Flasher (12V Py21W)12V-21W |
59C-83311-00-00 |
from US $6.23 |
||
|
26
|
26
1D6-83312-20-00 Lens, Flasher |
1D6-83312-20-00 |
from US $12.18 |
||
|
27
|
27
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
28
|
28
1D6-83363-10-00 Lens, Rim |
1D6-83363-10-00 |
from US $18.70 |
||
|
29
|
29
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
30
|
30
1D6-83340-00-00 Rear Flasher Light Assy 2 |
1D6-83340-00-00 |
from US $99.75 |
||
| replacement | |||||
|
30
|
30
1D6-83340-01-00 Rear Flasher Light Assy 2 |
1D6-83340-01-00 |
from US $99.75 |
||
|
31
|
31
5VN-83311-10-00 Bulb, Flasher (12V-21W)12V-21W |
5VN-83311-10-00 |
from US $10.20 |
||
| replacements | |||||
|
31
|
31
5VN-83331-00-00 Bulb, Flasher (12V-21W)12V-21W |
5VN-83331-00-00 |
from US $10.20 |
||
|
31
|
31
59C-83311-00-00 Bulb, Flasher (12V Py21W)12V-21W |
59C-83311-00-00 |
from US $6.23 |
||
|
32
|
32
1D6-83312-10-00 Lens, Flasher |
1D6-83312-10-00 |
from US $12.18 |
||
|
33
|
33
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
34
|
34
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
35
|
35
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
35
|
35
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
36
|
36
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
37
|
37
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
37
|
37
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
38
|
38
1AA-83318-00-00 Stay,flasher 1 |
1AA-83318-00-00 |
from US $33.72 |
||
|
39
|
39
95307-12700-00 Nut |
95307-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
39
|
39
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
|
40
|
40
4TR-83348-00-00 Washer |
4TR-83348-00-00 |
from US $8.08 |
||
