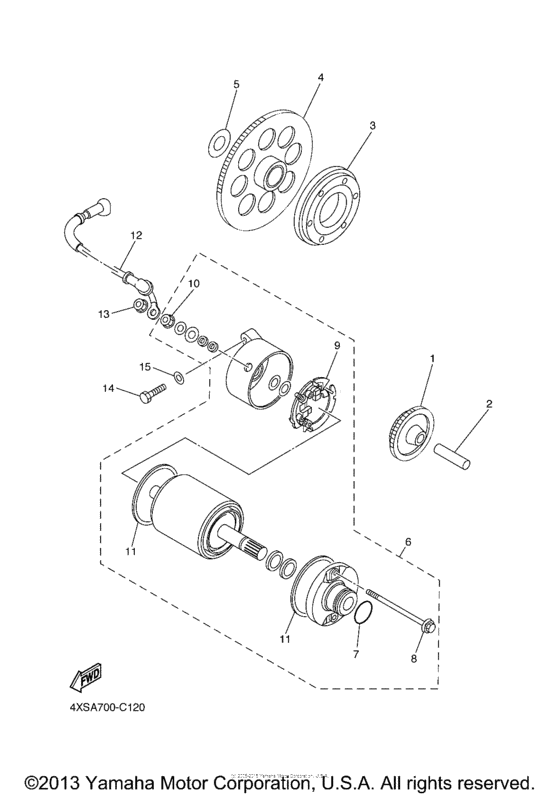

Starter clutch Diagram Yamaha XVS650 V-Star Midnight Custom
- Year
- 2007
- Model code
- 5S11
- Sales region
- USA
- Базовая модель
- XVS65WC-M
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Midnight Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22U-15512-00-00 Gear, Idler 1 (12T/50T)12T/50T |
22U-15512-00-00 |
from US $93.95 |
||
|
2
|
2
5H0-15521-00-00 Shaft 1 |
5H0-15521-00-00 |
from US $10.63 |
||
|
3
|
3
4TR-15590-00-00 Starter One-Way Assy |
4TR-15590-00-00 |
from US $198.95 |
||
|
4
|
4
4VR-15517-01-00 Gear, Idler 2 (66T)66T |
4VR-15517-01-00 |
from US $156.12 |
||
|
5
|
5
902-01252-90-00
Washer, Plate (0.9T)
0.9T |
902-01252-90-00 |
— | ||
| replacement | |||||
|
5
|
5
90201-256K6-00 Washer, Plate (0.9T)0.9T |
90201-256K6-00 |
from US $1.70 |
||
|
6
|
6
3JB-81890-00-00 Starting Motor Unit |
3JB-81890-00-00 |
from US $534.69 |
||
|
7
|
7
1FK-81847-00-00
O-Ring
|
1FK-81847-00-00 |
— | ||
| replacement | |||||
|
7
|
7
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.98 |
||
|
8
|
8
3HE-81826-00-00 Bolt |
3HE-81826-00-00 |
from US $11.48 |
||
|
9
|
9
3KS-81840-00-00 Brush Holder Assy |
3KS-81840-00-00 |
from US $67.84 |
||
|
10
|
10
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
11
|
11
11H-81844-00-00
Gasket
|
11H-81844-00-00 |
— | ||
| replacement | |||||
|
11
|
11
35C-81844-00-00 Gasket |
35C-81844-00-00 |
from US $20.97 |
||
|
12
|
12
4VR-81815-00-00 Cord, Starter Motor |
4VR-81815-00-00 |
from US $64.38 |
||
|
13
|
13
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
14
|
14
97070-06025-00 Bolt |
97070-06025-00 |
from US $1.35 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
