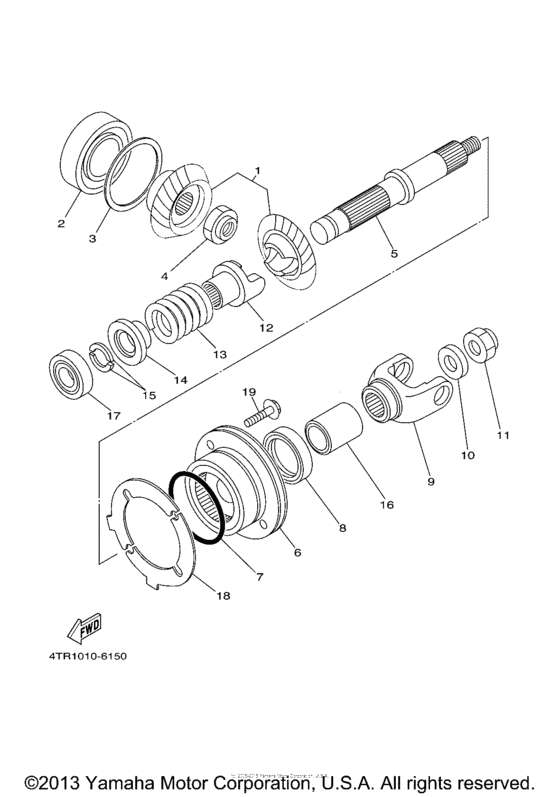

Middle drive gear Diagram Yamaha XVS650 V-Star Custom with Flames
- Year
- 2005
- Colour
- Deep Purplish Blue Metallic W/Flames
- Model code
- 3B61
- Sales region
- USA
- Базовая модель
- XVS65T-F
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VR-Y1754-00-00 Middle Gear Comp |
4VR-Y1754-00-00 |
US $272.84 |
||
|
2
|
2
93306-20711-00 Bearing |
93306-20711-00 |
from US $30.89 |
||
|
3
|
3
4H7-17537-00-20 Shim, Thrust0.20T UR |
4H7-17537-00-20 |
from US $4.45 |
||
|
3
|
3
4H7-17537-00-40 Shim, Thrust0.40T UR |
4H7-17537-00-40 |
US $6.52 |
||
|
3
|
3
4H7-17537-00-30 Shim, Thrust0.30T UR |
4H7-17537-00-30 |
US $6.52 |
||
|
4
|
4
90179-18396-00 Nut |
90179-18396-00 |
from US $8.64 |
||
|
5
|
5
4VR-17553-00-00 Shaft, Middle Driven |
4VR-17553-00-00 |
from US $111.77 |
||
|
6
|
6
4VR-W1752-00-00 Houshing Comp |
4VR-W1752-00-00 |
from US $163.03 |
||
|
7
|
7
932-10713-60-00 O-Ring |
932-10713-60-00 |
from US $6.09 |
||
|
8
|
8
93101-35097-00 Oil Seal |
93101-35097-00 |
from US $6.96 |
||
|
9
|
9
22U-17556-00-00 Yoke, Joint |
22U-17556-00-00 |
from US $95.94 |
||
|
10
|
10
90201-14633-00 Washer, Plate |
90201-14633-00 |
from US $7.65 |
||
|
11
|
11
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
|
12
|
12
4VR-17527-00-00 Cam, Driven |
4VR-17527-00-00 |
from US $48.08 |
||
|
13
|
13
90501-60716-00 Spring, Compression |
90501-60716-00 |
from US $14.31 |
||
|
14
|
14
22U-17524-00-00 Holder |
22U-17524-00-00 |
from US $17.82 |
||
|
15
|
15
3H5-17529-00-00 Washer, Thrust |
3H5-17529-00-00 |
from US $1.93 |
||
|
16
|
16
90387-2511R-00 Collar |
90387-2511R-00 |
from US $28.62 |
||
|
17
|
17
933-06004-01-00
Bearing
|
933-06004-01-00 |
— | ||
| replacements | |||||
|
17
|
17
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
17
|
17
93306-00426-00 Bearing (5Y1) |
93306-00426-00 |
from US $12.33 |
||
|
18
|
18
3JB-17531-10-00 Shim, Pinion0.15T UR |
3JB-17531-10-00 |
from US $8.64 |
||
|
18
|
18
3JB-17531-20-00 Shim, Pinion0.20T UR |
3JB-17531-20-00 |
from US $8.64 |
||
|
18
|
18
3JB-17531-30-00 Shim, Pinion0.30T UR |
3JB-17531-30-00 |
from US $8.64 |
||
|
18
|
18
3JB-17531-40-00 Shim, Pinion0.40T UR |
3JB-17531-40-00 |
from US $8.64 |
||
|
18
|
18
3JB-17531-00-00 Shim, Pinion (0.10T)0.10T UR |
3JB-17531-00-00 |
from US $8.64 |
||
|
18
|
18
3JB-17531-50-00 Shim, Pinion (0.50T)0.50T UR |
3JB-17531-50-00 |
from US $8.64 |
||
|
19
|
19
95827-08035-00 Bolt, Flange |
95827-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
