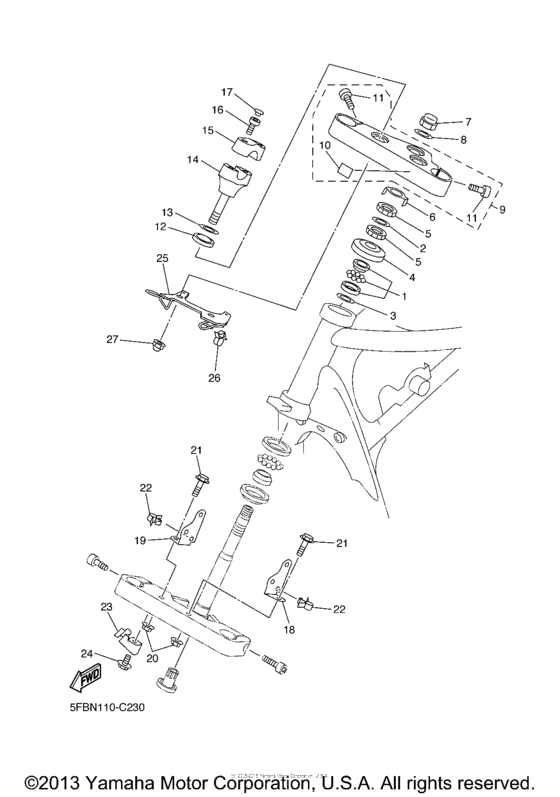

Steering Diagram Yamaha XVS650 V-Star Custom with Flames
- Year
- 2005
- Colour
- Deep Purplish Blue Metallic W/Flames
- Model code
- 3B61
- Sales region
- USA
- Базовая модель
- XVS65T-F
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93399-99931-00 Bearing |
93399-99931-00 |
from US $33.15 |
||
|
2
|
2
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $1.84 |
||
|
3
|
3
90202-24190-00 Washer, Plate |
90202-24190-00 |
from US $1.70 |
||
|
4
|
4
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
5
|
5
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
5
|
5
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
5
|
5
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
6
|
6
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $6.94 |
||
|
7
|
7
90176-22081-00 Nut, Crown |
90176-22081-00 |
from US $13.88 |
||
|
8
|
8
90201-220T0-00 Washer, Plate |
90201-220T0-00 |
from US $3.71 |
||
| replacement | |||||
|
8
|
8
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.39 |
||
|
9
|
9
4VR-Y2343-60-00 Crown, Handle |
4VR-Y2343-60-00 |
from US $340.24 |
||
| replacement | |||||
|
9
|
9
4VR-W2341-20-00 Crown, Handle |
4VR-W2341-20-00 |
from US $176.64 |
||
|
10
|
10
2AL-84553-00-00 Damper |
2AL-84553-00-00 |
from US $5.38 |
||
|
11
|
11
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
12
|
12
3DM-23445-00-00 Damper |
3DM-23445-00-00 |
from US $4.53 |
||
|
13
|
13
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
14
|
14
4VR-23442-00-00 Holder, Handle Lower |
4VR-23442-00-00 |
from US $79.72 |
||
| replacement | |||||
|
14
|
14
4VR-23442-01-00 Holder, Handle Lower |
4VR-23442-01-00 |
from US $98.92 |
||
|
15
|
15
4VR-23441-00-00 Holder, Handle Upper |
4VR-23441-00-00 |
from US $57.61 |
||
|
16
|
16
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
17
|
17
90338-08163-00 Plug (Crome) |
90338-08163-00 |
from US $2 |
||
|
18
|
18
4TR-23175-01-00 Bracket, Headlight Stay 1 |
4TR-23175-01-00 |
from US $8.08 |
||
|
19
|
19
4TR-23176-01-00 Bracket, Headlight Stay 2 |
4TR-23176-01-00 |
from US $8.08 |
||
|
20
|
20
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
21
|
21
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.34 |
||
|
22
|
22
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.70 |
||
|
23
|
23
4TR-25886-00-00 Holder, Brake Hose |
4TR-25886-00-00 |
from US $15.07 |
||
|
24
|
24
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $0.90 |
||
|
25
|
25
5BN-23389-10-00 Guide, Cable |
5BN-23389-10-00 |
from US $42.28 |
||
|
26
|
26
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.28 |
||
|
27
|
27
90176-12052-00 Nut, Crown |
90176-12052-00 |
from US $8.22 |
||
