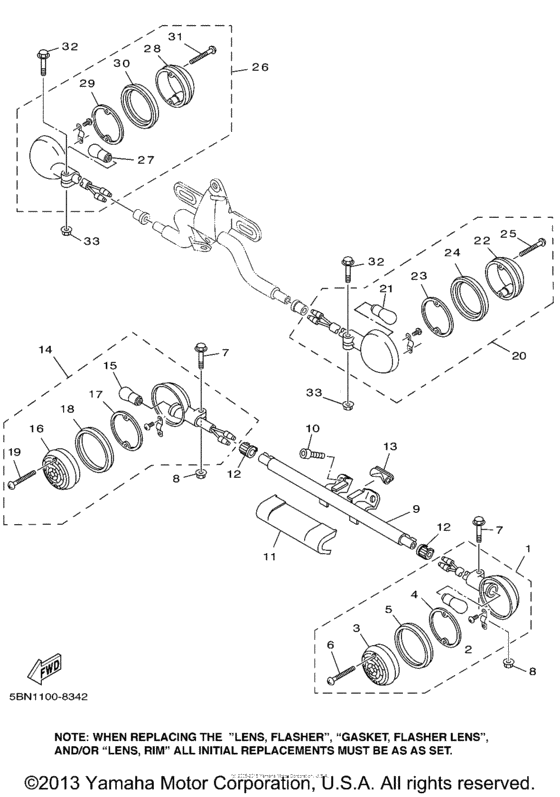

Flasher light Diagram Yamaha XVS650 V-Star Classic
- Year
- 1998
- Model code
- 5BN1
- Sales region
- USA
- Базовая модель
- XVS650AK
- Engine Capacity
- 650
- Model
- XVS650A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4NK-83310-01-00 Front Flasher Light Assy 1LEFT |
4NK-83310-01-00 |
from US $107.07 |
||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
from US $4.53 |
||
|
3
|
3
42X-83312-10-00 Lens, Flasher |
42X-83312-10-00 |
from US $14.45 |
||
|
4
|
4
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
5
|
5
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
6
|
6
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
7
|
7
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
8
|
8
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
9
|
9
5BN-2317V-00-00 Stay 8 |
5BN-2317V-00-00 |
from US $90.63 |
||
|
10
|
10
91314-08016-00 Bolt, Hexagon Socket Head |
91314-08016-00 |
from US $1.42 |
||
|
11
|
11
4NK-23122-00-00 Cover, Outer 1 |
4NK-23122-00-00 |
from US $54.16 |
||
| replacement | |||||
|
11
|
11
4NK-23122-01-00 Cover, Outer 1 |
4NK-23122-01-00 |
from US $54.16 |
||
|
12
|
12
4NK-83321-00-00 Damper, Flasher 1 |
4NK-83321-00-00 |
from US $7.65 |
||
|
13
|
13
4NK-83345-00-00 Plug, Blind |
4NK-83345-00-00 |
from US $19.98 |
||
|
14
|
14
4NK-83320-01-00 Front Flasher Light Assy 1RIGHT |
4NK-83320-01-00 |
from US $107.07 |
||
|
15
|
15
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
15
|
15
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
15
|
15
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
from US $4.53 |
||
|
16
|
16
42X-83312-20-00 Lens, Flasher |
42X-83312-20-00 |
from US $14.45 |
||
|
17
|
17
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
18
|
18
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
19
|
19
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
20
|
20
42X-83330-K1-00 Rear Flasher Light Assy 1LEFT |
42X-83330-K1-00 |
from US $84.97 |
||
|
21
|
21
256-83311-70-00 Bulb (12V-27W)12V-32CP |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
21
|
21
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
22
|
22
42X-83312-20-00 Lens, Flasher |
42X-83312-20-00 |
from US $14.45 |
||
|
23
|
23
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
24
|
24
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
25
|
25
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
26
|
26
42X-83340-K1-00 Rear Flasher Light Assy 2RIGHT |
42X-83340-K1-00 |
from US $84.97 |
||
|
27
|
27
256-83311-70-00 Bulb (12V-27W)12V-32CP |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
27
|
27
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
28
|
28
42X-83312-10-00 Lens, Flasher |
42X-83312-10-00 |
from US $14.45 |
||
|
29
|
29
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
30
|
30
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
31
|
31
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
32
|
32
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
33
|
33
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
33
|
33
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
