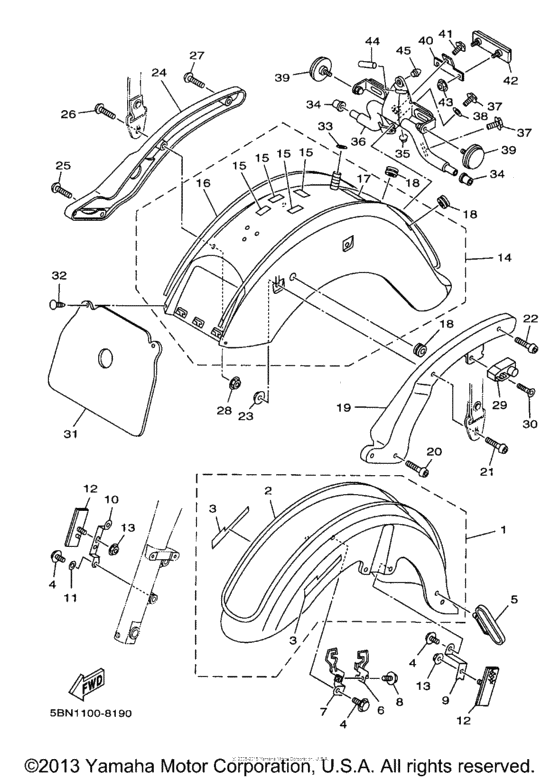

Fender Diagram Yamaha XVS650 V-Star Classic
- Year
- 1998
- Model code
- 5BN2
- Sales region
- USA
- Базовая модель
- XVS650AKC
- Engine Capacity
- 650
- Model
- XVS650A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BN-Y2151-00-33
Front Fender Comp
for Color YAMAHA BLACK YB / 0033 |
5BN-Y2151-00-33 |
— | ||
| replacement | |||||
|
1
|
1
999-99032-96-00
Front Fender
for Color YAMAHA BLACK YB / 0033 |
999-99032-96-00 |
— | ||
|
1
|
1
5BN-Y2151-10-0X Front Fender Compfor Color MIYABI MAROON MYM / 00JY |
5BN-Y2151-10-0X |
US $1,382.58 |
||
| replacement | |||||
|
1
|
1
999-99033-00-00 Front Fenderfor Color MIYABI MAROON MYM / 00JY |
999-99033-00-00 |
US $1,382.58 |
||
|
2
|
2
5BN-21570-10-00
Graphic Set, Front Fender
for Color MIYABI MAROON MYM / 00JY |
5BN-21570-10-00 |
— | ||
|
2
|
2
5BN-21570-00-00 Graphic Set, Front Fenderfor Color YAMAHA BLACK YB / 0033 |
5BN-21570-00-00 |
US $254.21 |
||
|
3
|
3
5BN-21578-00-00
Emblem
for Color YAMAHA BLACK YB / 0033 |
5BN-21578-00-00 |
— | ||
|
3
|
3
5BN-21578-10-00
Emblem
for Color MIYABI MAROON MYM / 00JY |
5BN-21578-10-00 |
— | ||
|
4
|
4
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
5
|
5
5BN-21518-00-00 Holder, Cable |
5BN-21518-00-00 |
from US $7.37 |
||
| replacement | |||||
|
5
|
5
5BN-21518-01-00 Holder, Cable |
5BN-21518-01-00 |
from US $7.37 |
||
|
6
|
6
5BN-21598-00-00 Holder, Wire 2 |
5BN-21598-00-00 |
from US $10.91 |
||
|
7
|
7
5BN-21587-00-00 Stay 1 |
5BN-21587-00-00 |
from US $29.68 |
||
| replacement | |||||
|
7
|
7
999-99034-86-00 Stay 1 |
999-99034-86-00 |
from US $25.85 |
||
|
8
|
8
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
8
|
8
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
9
|
9
5BN-85112-00-00 Bracket, Reflector 1 |
5BN-85112-00-00 |
from US $7.23 |
||
|
10
|
10
5BN-85122-00-00 Bracket, Reflector 2 |
5BN-85122-00-00 |
from US $11.76 |
||
|
11
|
11
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
12
|
12
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.12 |
||
|
13
|
13
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
14
|
14
5BN-W2161-03-0X
Rear Fender C0Mp
C0MP. Use for Color MIYABI MAROON MYM / 00JY |
5BN-W2161-03-0X |
— | ||
|
14
|
14
5BN-W2161-1Y-33 Rear Fender C0MpC0MP. Use for Color YAMAHA BLACK YB / 0033 |
5BN-W2161-1Y-33 |
US $2,972.03 |
||
| replacement | |||||
|
14
|
14
5BN-W216R-2G-33
Rear Fender
C0MP. Use for Color YAMAHA BLACK YB / 0033 |
5BN-W216R-2G-33 |
— | ||
|
15
|
15
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
16
|
16
5BN-2165A-00-00 Graphic Set, Rear Fenderfor Color YAMAHA BLACK YB / 0033 |
5BN-2165A-00-00 |
US $274.61 |
||
|
16
|
16
5BN-2165A-10-00
Graphic Set, Rear Fender
for Color MIYABI MAROON MYM / 00JY |
5BN-2165A-10-00 |
— | ||
| replacement | |||||
|
16
|
16
5BN-2165A-11-00
Graphic Set,rear Fender
for Color MIYABI MAROON MYM / 00JY |
5BN-2165A-11-00 |
— | ||
|
17
|
17
99237-00080-00 Emblem, Yamaha |
99237-00080-00 |
from US $7.79 |
||
| replacement | |||||
|
17
|
17
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.79 |
||
|
18
|
18
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
19
|
19
5BN-21613-00-00
Stay 1
|
5BN-21613-00-00 |
— | ||
| replacement | |||||
|
19
|
19
5BN-21613-00-33
Fender Stay 1
|
5BN-21613-00-33 |
— | ||
|
20
|
20
92014-10025-00 Bolt, Button Head |
92014-10025-00 |
from US $4.11 |
||
|
21
|
21
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
22
|
22
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $3.68 |
||
|
23
|
23
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
24
|
24
5BN-21614-00-00
Stay
|
5BN-21614-00-00 |
— | ||
| replacement | |||||
|
24
|
24
5BN-21614-00-33
Fender Stay 2
|
5BN-21614-00-33 |
— | ||
|
25
|
25
92014-10025-00 Bolt, Button Head |
92014-10025-00 |
from US $4.11 |
||
|
26
|
26
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
27
|
27
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $3.68 |
||
|
28
|
28
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
29
|
29
4R8-21308-00-00
Helmet Hanger Assy
|
4R8-21308-00-00 |
— | ||
| replacement | |||||
|
29
|
29
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
30
|
30
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
31
|
31
4TR-21629-00-00 Guard, Mud |
4TR-21629-00-00 |
from US $21.04 |
||
|
32
|
32
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
32
|
32
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.36 |
||
|
33
|
33
4NK-21735-00-00 Seal 2 |
4NK-21735-00-00 |
from US $1.84 |
||
|
34
|
34
4NK-83321-00-00 Damper, Flasher 1 |
4NK-83321-00-00 |
from US $7.65 |
||
|
35
|
35
4NK-83345-00-00 Plug, Blind |
4NK-83345-00-00 |
from US $19.98 |
||
|
36
|
36
5BN-2317W-00-00 Stay, 9 |
5BN-2317W-00-00 |
from US $219.44 |
||
|
37
|
37
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
38
|
38
90201-06043-00 Washer, Plate |
90201-06043-00 |
from US $1.28 |
||
|
39
|
39
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $9.78 |
||
|
40
|
40
4NK-21641-00-00
Bracket, Reflector
|
4NK-21641-00-00 |
— | ||
|
41
|
41
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
42
|
42
1FK-85130-00-00 Rear Reflector Assy |
1FK-85130-00-00 |
from US $23.80 |
||
| replacement | |||||
|
42
|
42
8Y7-85130-00-00 Rear Reflector Assy |
8Y7-85130-00-00 |
US $22.34 |
||
|
43
|
43
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
44
|
44
90446-07114-00 Hose |
90446-07114-00 |
from US $1.98 |
||
|
45
|
45
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
