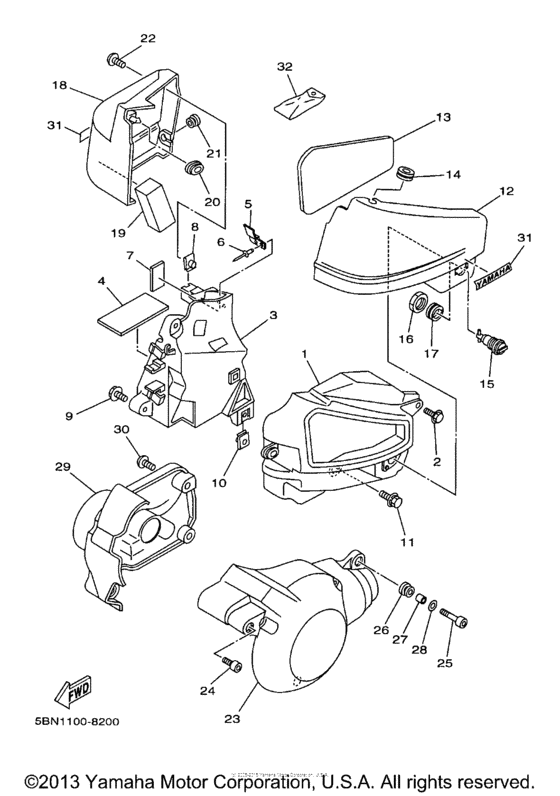

Side cover Diagram Yamaha XVS650 V-Star Classic
- Year
- 1998
- Model code
- 5BN2
- Sales region
- USA
- Базовая модель
- XVS650AKC
- Engine Capacity
- 650
- Model
- XVS650A (V-Star Classic)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TR-2160A-00-00 Box Comp |
4TR-2160A-00-00 |
from US $114.19 |
||
|
2
|
2
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
3
|
3
4TR-2177G-01-00 Box, Battery |
4TR-2177G-01-00 |
from US $17.28 |
||
| replacement | |||||
|
3
|
3
4TR-2177G-02-00 Box, Battery |
4TR-2177G-02-00 |
from US $17.28 |
||
|
4
|
4
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
5
|
5
5BN-2172E-00-00 Stay, Side Cover 1 |
5BN-2172E-00-00 |
from US $4.84 |
||
|
6
|
6
90267-32018-00 Rivet, Blind |
90267-32018-00 |
from US $1.58 |
||
| replacements | |||||
|
6
|
6
90267-32071-00 Rivet, Blind |
90267-32071-00 |
from US $1.84 |
||
|
6
|
6
90267-32801-00 Rivet, Blind |
90267-32801-00 |
US $3.12 |
||
|
7
|
7
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.55 |
||
|
8
|
8
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
8
|
8
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
9
|
9
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
10
|
10
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
11
|
11
901-19060-97-00 Bolt, With Washer |
901-19060-97-00 |
from US $1.70 |
||
| replacements | |||||
|
11
|
11
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
11
|
11
90119-06172-00 Bolt, With Washer(2Wg) |
90119-06172-00 |
from US $1.70 |
||
|
12
|
12
4TR-21711-10-00
Cover, Side 1
Use for Color YAMAHA BLACK YB / 0033 |
4TR-21711-10-00 |
— | ||
|
12
|
12
5BN-21711-00-00
Cover, Side 1
Use for Color MIYABI MAROON MYM / 00JY |
5BN-21711-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
Use for Color MIYABI MAROON MYM / 00JY |
999-99999-99-00 |
— | ||
|
13
|
13
4TR-21717-00-00 Damper |
4TR-21717-00-00 |
from US $8.50 |
||
|
14
|
14
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
15
|
15
55K-21708-00-00 Lock Assy 2 |
55K-21708-00-00 |
from US $49.46 |
||
|
16
|
16
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
17
|
17
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
18
|
18
4VR-21721-10-00 Cover, Side 2Use for Color YAMAHA BLACK YB / 0033 |
4VR-21721-10-00 |
US $91.26 |
||
|
18
|
18
5BN-21721-00-00 Cover, Side 2Use for Color MIYABI MAROON MYM / 00JY |
5BN-21721-00-00 |
US $106.25 |
||
| replacement | |||||
|
18
|
18
5BN-21721-00-JY Cover, Side 2Use for Color MIYABI MAROON MYM / 00JY |
5BN-21721-00-JY |
US $105.39 |
||
|
19
|
19
84M-77555-00-00 Protector 5 |
84M-77555-00-00 |
from US $1.84 |
||
|
20
|
20
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.39 |
||
|
21
|
21
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.56 |
||
|
22
|
22
90149-06302-00 Screw |
90149-06302-00 |
from US $3.83 |
||
|
23
|
23
5BN-21731-00-00 Cover, Side 3 |
5BN-21731-00-00 |
from US $350.41 |
||
|
24
|
24
90110-06254-00 Bolt, Hexagon Socket Head |
90110-06254-00 |
from US $1.21 |
||
| replacement | |||||
|
24
|
24
91314-06012-00 Bolt, Hexagon Socket Head |
91314-06012-00 |
from US $1.21 |
||
|
25
|
25
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
26
|
26
90480-10289-00 Grommet |
90480-10289-00 |
from US $1.70 |
||
|
27
|
27
90387-0600V-00 Collar(4Dn) |
90387-0600V-00 |
from US $1.70 |
||
|
28
|
28
90201-06062-00 Washer, Plate |
90201-06062-00 |
from US $1.70 |
||
|
29
|
29
4VR-21741-00-00 Cover, Side 4 |
4VR-21741-00-00 |
from US $128.61 |
||
|
30
|
30
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.70 |
||
|
31
|
31
99237-00080-00 Emblem, Yamaha |
99237-00080-00 |
from US $7.79 |
||
| replacement | |||||
|
31
|
31
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.79 |
||
|
32
|
32
4TR-28100-00-00 Tool Kit |
4TR-28100-00-00 |
from US $54.85 |
||
| replacement | |||||
|
32
|
32
4TR-28100-01-00 |
4TR-28100-01-00 |
US $84.69 |
||
