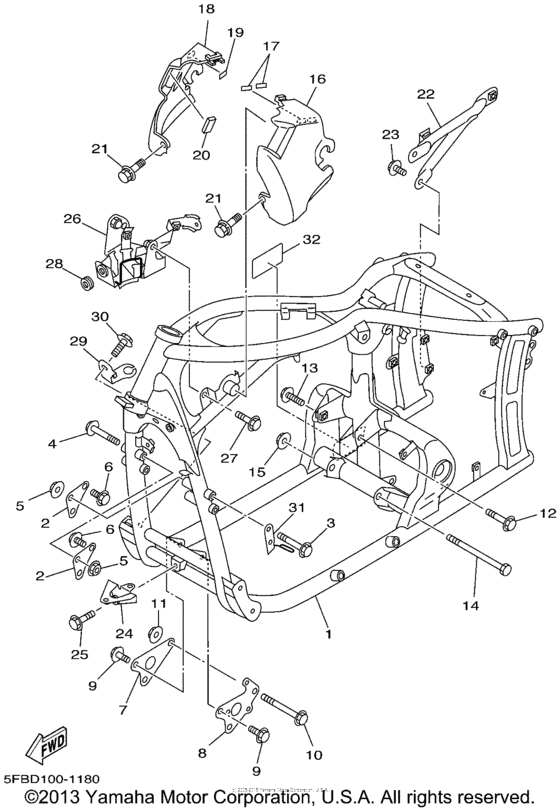

Frame Diagram Yamaha XVS650 V-Star Custom
- Year
- 2001
- Model code
- 5FBE
- Sales region
- USA
- Базовая модель
- XVS650NC
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VR-21110-20-00 Frame Comp5FBD |
4VR-21110-20-00 |
US $1,853.44 |
||
|
1
|
1
5BN-21110-10-00 Frame Comp.5FBE |
5BN-21110-10-00 |
US $2,341.31 |
||
|
2
|
2
5KP-21191-10-00
Downtube
|
5KP-21191-10-00 |
— | ||
|
3
|
3
4VR-21315-00-00 Stay, Engine 1 |
4VR-21315-00-00 |
from US $11.76 |
||
|
4
|
4
90105-082A4-00 Bolt, Flange |
90105-082A4-00 |
from US $4.25 |
||
|
5
|
5
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
6
|
6
90179-08684-00 Nut |
90179-08684-00 |
from US $1.84 |
||
|
7
|
7
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
8
|
8
4VR-21317-00-00 Stay, Engine 3 |
4VR-21317-00-00 |
from US $16.86 |
||
|
9
|
9
5BN-21317-00-00 Stay, Engine 3 |
5BN-21317-00-00 |
from US $64.94 |
||
|
10
|
10
95814-08020-00 Bolt, Flange(4Hm) |
95814-08020-00 |
from US $1.56 |
||
|
11
|
11
95814-10100-00 Bolt, Flange |
95814-10100-00 |
from US $5.53 |
||
|
12
|
12
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
13
|
13
90105-10788-00 Bolt, Flange |
90105-10788-00 |
from US $5.81 |
||
|
14
|
14
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.72 |
||
|
15
|
15
90101-12694-00 Bolt |
90101-12694-00 |
from US $20.12 |
||
|
16
|
16
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
17
|
17
4TR-2171E-00-00 Cover, Side 5 |
4TR-2171E-00-00 |
from US $24.38 |
||
| replacement | |||||
|
17
|
17
4TR-2171E-01-00 Cover, Side 5 |
4TR-2171E-01-00 |
from US $25.58 |
||
|
18
|
18
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
19
|
19
4TR-2171X-00-00 Cover, Side 6 |
4TR-2171X-00-00 |
from US $27.22 |
||
|
20
|
20
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
21
|
21
4SV-28372-00-00 Damper |
4SV-28372-00-00 |
from US $1.84 |
||
|
22
|
22
90119-06236-00 Bolt, With Washer |
90119-06236-00 |
from US $2.08 |
||
|
23
|
23
4TR-21460-01-00 Stay, Muffler |
4TR-21460-01-00 |
from US $58.66 |
||
| replacement | |||||
|
23
|
23
4TR-21460-30-00 Stay, Muffler |
4TR-21460-30-00 |
from US $58.66 |
||
|
24
|
24
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
25
|
25
4VR-28356-01-00 Stay 1 |
4VR-28356-01-00 |
from US $17.20 |
||
|
26
|
26
90105-062A2-00 Bolt, Flange |
90105-062A2-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
27
|
27
4TR-24491-02-00 Bracket, Fuel Pump |
4TR-24491-02-00 |
from US $54.85 |
||
|
28
|
28
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
29
|
29
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.66 |
||
|
30
|
30
5KP-2144G-00-00 Stay, Stop Switch |
5KP-2144G-00-00 |
from US $9.07 |
||
|
31
|
31
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
32
|
32
4VR-21161-00-00 Holder, Cable |
4VR-21161-00-00 |
from US $24.79 |
||
|
33
|
33
5FB-2179V-00-00
Plate, Epa 1 (Non California)
NON CALIFORNIA 5FBD NOT SHOWN |
5FB-2179V-00-00 |
— | ||
|
33
|
33
5FB-2179R-00-00
Plate, Epa 2 (California)
CALIFORNIA 5FBE NOT SHOWN |
5FB-2179R-00-00 |
— | ||
